Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

Click here

2. REMOVE FRONT DOOR TRIM POCKET COVER

Click here

3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

5. REMOVE COURTESY LIGHT ASSEMBLY

Click here

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

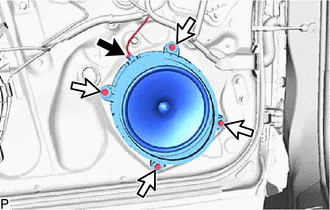

(a) Disconnect the connector.

(b) Remove the 4 screws.

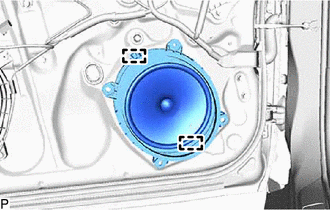

(c) Disengage the 2 guides to remove the front No. 1 speaker assembly.

    Installation

    Instrument Panel Speaker
