Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

HINT:

Use the same procedure for the RH side and LH side.

(a) Connect the connector.

(b) Install the front No. 2 speaker assembly with the 2 screws.

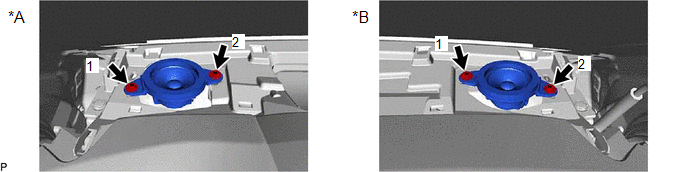

*A

for LH Side

*B

for RH Side

HINT:

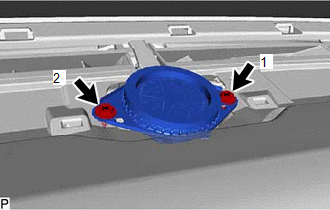

Install the screws in the order shown in the illustration.

2. INSTALL FRONT NO. 4 SPEAKER ASSEMBLY (for 14 Speakers)

(a) Connect the connector.

(b) Install the front No. 4 speaker assembly with the 2 screws.

HINT:

Install the screws in the order shown in the illustration.

3. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH

Click here

4. INSTALL FRONT PILLAR GARNISH LH

Click here

5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

6. INSTALL FRONT PILLAR GARNISH RH

HINT:

Use the same procedure as for the LH side.

7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure as for the LH side.

    Inspection

    Removal
