Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Front Passenger Side Power Window Switch

Components

COMPONENTS

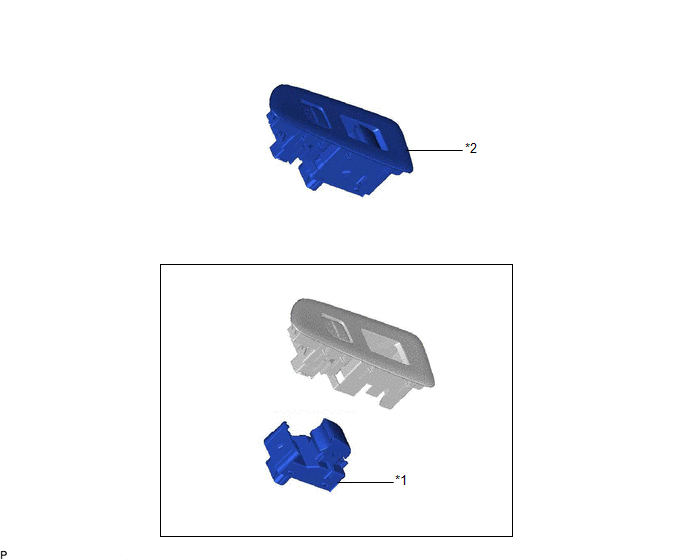

ILLUSTRATION

*1

POWER WINDOW REGULATOR SWITCH ASSEMBLY

*2

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Inspection

INSPECTION

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Check the switch function.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

5 - 7

Auto up or manual up position

Below 100 Ω

4 - 7

Auto down or manual down position

Below 100 Ω

8 - 7

Auto up or auto down position

Below 100 Ω

5 - 7

Off

10 kΩ or higher

4 - 7

Off

10 kΩ or higher

8 - 7

Off

10 kΩ or higher

If the result is not as specified, replace the power window regulator switch assembly.

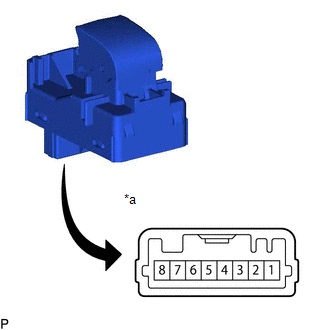

*a

Component without harness connected

(Power Window Regulator Switch Assembly)

(b) Check that the LED illuminates.

(1) Apply auxiliary battery voltage to the power window regulator switch assembly and check that the LED illuminates.

OK:

Battery Connection

Specified Condition

Auxiliary battery positive (+) → 3

Auxiliary battery negative (-) → 1

LED illuminates

If the result is not as specified, replace the power window regulator switch assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

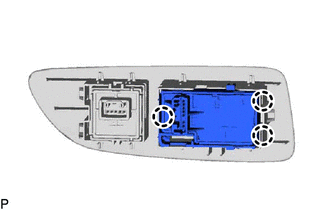

(a) Engage the 3 claws to install the power window regulator switch assembly.

2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Disengage the 3 claws to remove the power window regulator switch assembly.

    Removal

    Power Window Control System(for Gasoline Model)
