Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Front Wiper Rubber

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Exterior / Wiper / Washer / Front Wiper Rubber

Components

COMPONENTS

ILLUSTRATION

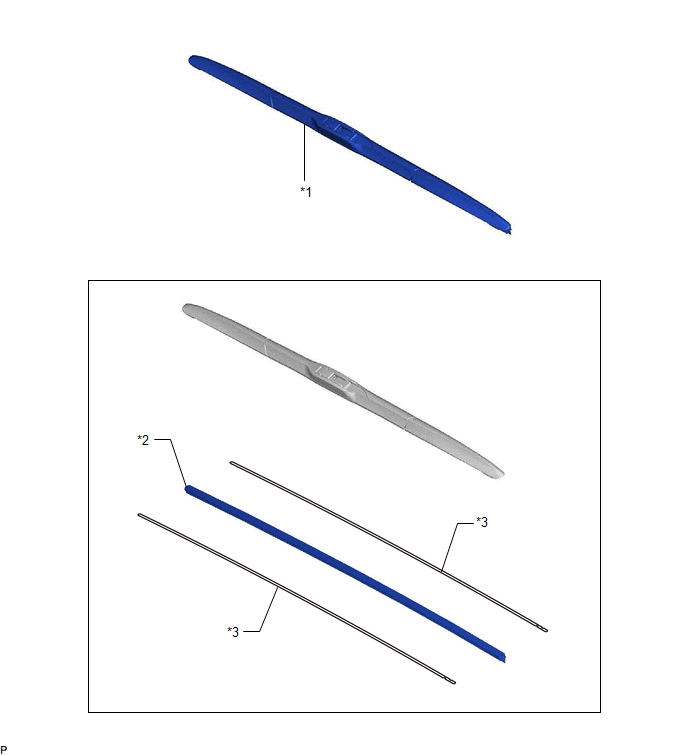

*1	FRONT WIPER BLADE	*2	WIPER RUBBER
*3	FRONT WIPER RUBBER BACKING PLATE	-	-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WIPER BLADE

Click here

2. REMOVE WIPER RUBBER

Click here

3. INSTALL WIPER RUBBER

Click here

4. INSTALL FRONT WIPER BLADE

Click here
