Toyota Avalon Service & Repair Manual: Washer Motor

Components

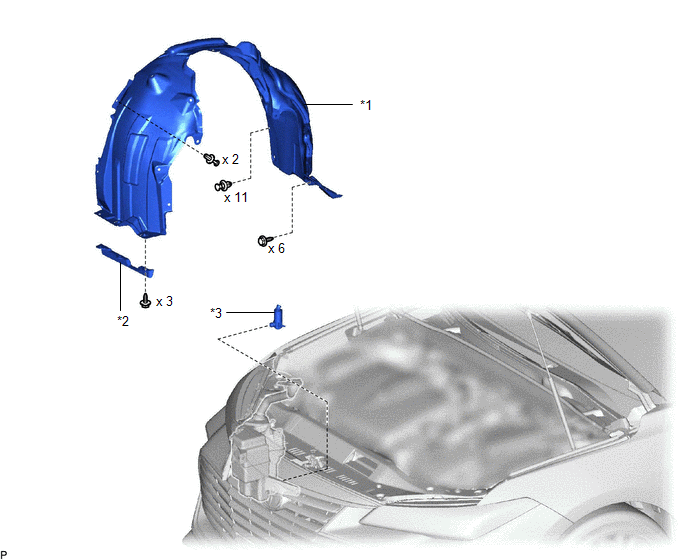

COMPONENTS

ILLUSTRATION

*1

FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

*2

FRONT WHEEL OPENING EXTENSION PAD RH

*3

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

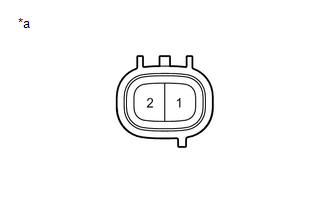

*a

Component without harness connected

(Windshield Washer Motor and Pump Assembly)

(a) Remove the washer jar.

(b) Disconnect the windshield washer motor and pump assembly connector.

HINT:

This check should be performed with the windshield washer motor and pump assembly installed on the washer jar.

(c) Fill the washer jar with washer fluid.

(d) Connect an auxiliary battery positive (+) lead to terminal 1 of the windshield washer motor and pump assembly, and a negative (-) lead to terminal 2.

(e) Check that washer fluid flows from the washer jar.

OK:

Washer fluid flows from the washer jar.

If the result is not as specified, replace the windshield washer motor and pump assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Install the windshield washer motor and pump assembly as shown in the illustration.

Install in this Direction

(b) Connect the connector.

2. ADD WASHER FLUID

(a) Connect the washer hose.

(b) Add washer fluid to the washer jar.

3. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

(a) Install the front fender splash shield sub-assembly RH with the 11 clips and 6 screws.

(b) Install the 2 clips.

4. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

(a) Install the front wheel opening extension pad RH with the 3 screws.

5. INSTALL FRONT WHEEL RH

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL RH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

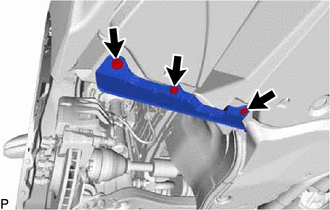

(a) Remove the 3 screws and front wheel opening extension pad RH.

3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

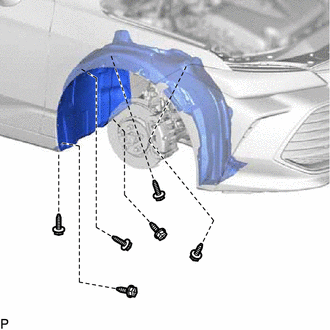

(a) Remove the 6 screws.

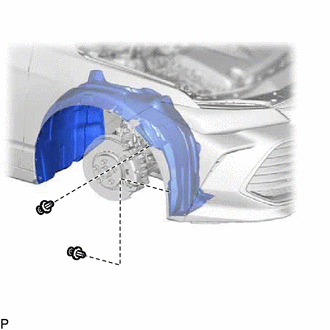

(b) Remove the 2 clips.

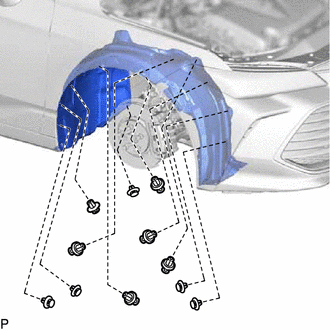

(c) Remove the 11 clips and front fender splash shield sub-assembly RH.

4. DRAIN WASHER FLUID

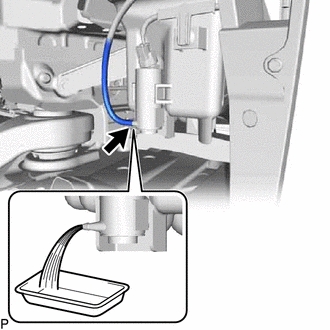

(a) Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

HINT:

Use a container to collect the washer fluid.

5. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

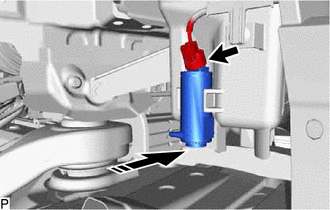

(a) Disconnect the connector.

Remove in this Direction

(b) Remove the windshield washer motor and pump assembly as shown in the illustration.

    Removal

    Washer Nozzle
