COMPONENTS

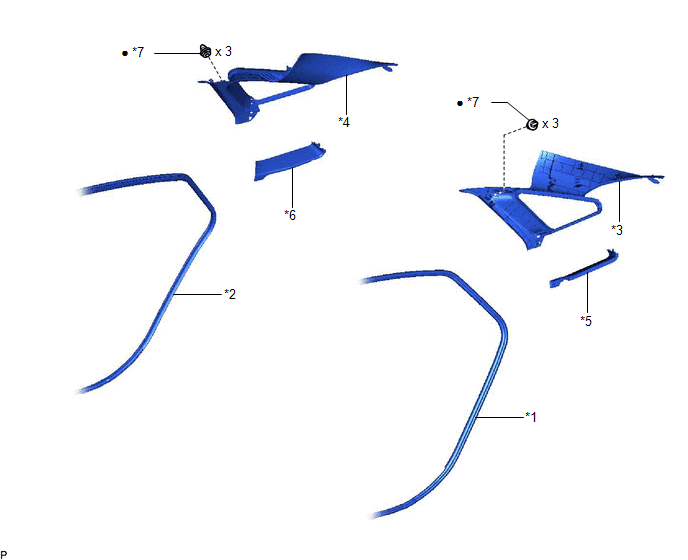

ILLUSTRATION

*1

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*2

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*3

ROOF SIDE INNER GARNISH LH

*4

ROOF SIDE INNER GARNISH RH

*5

ROOF SIDE RAIL GARNISH ASSEMBLY LH

*6

ROOF SIDE RAIL GARNISH ASSEMBLY RH

*7

CLIP

-

-

Non-reusable part

-

-

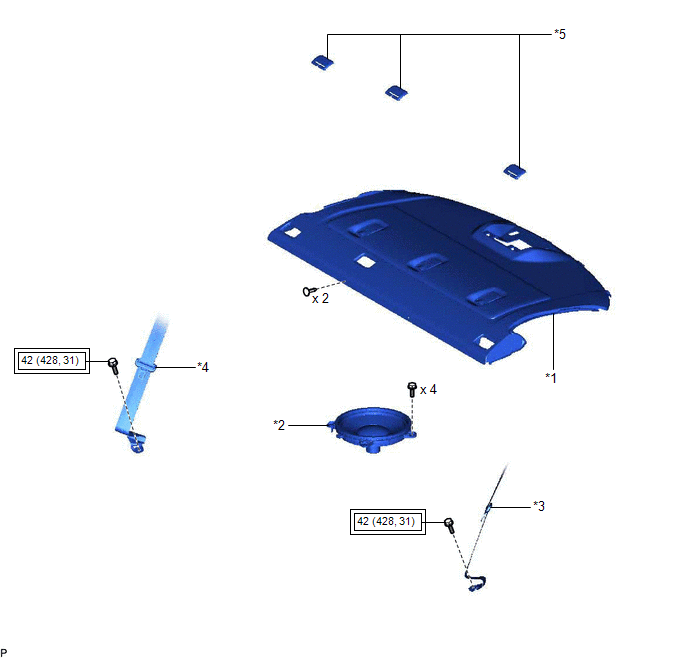

ILLUSTRATION

*1

PACKAGE TRAY TRIM PANEL ASSEMBLY

*2

REAR NO. 3 SPEAKER ASSEMBLY

*3

REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

*4

REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

*5

REAR SEAT SHOULDER BELT COVER

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*A

w/o Seat Heater System

-

-

*1

SPARE WHEEL COVER ASSEMBLY

-

-

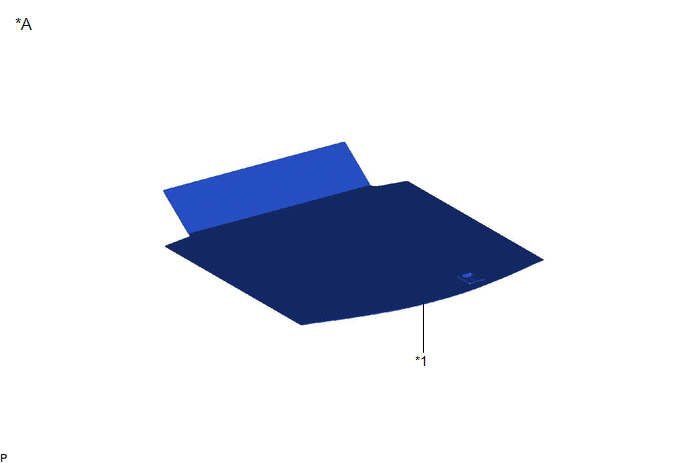

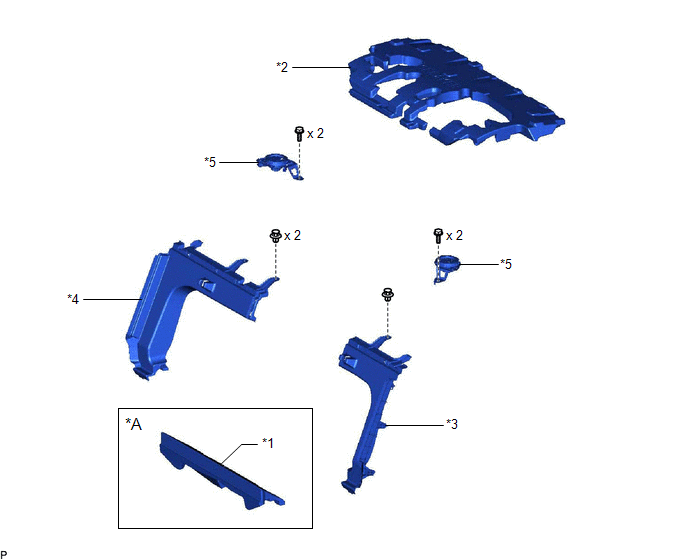

ILLUSTRATION

*A

w/o Seat Heater System

-

-

*1

LUGGAGE COMPARTMENT INNER TRIM PAD

*2

NO. 1 UPPER BACK PANEL HOLE COVER

*3

ROOM PARTITION BOARD LH

*4

ROOM PARTITION BOARD RH

*5

SPEAKER ASSEMBLY WITH BRACKET

-

-

    Rear Package Tray Speaker

    Inspection
