Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR CONDITIONER PRESSURE SENSOR

(a) Remove the vinyl tape from the air conditioning tube and accessory assembly.

(b) Sufficiently apply compressor oil to a new air conditioner pressure sensor and the fitting surface of the air conditioner pressure sensor.

Refrigerant

Compressor Oil

for Gasoline Model

ND-OIL 12 or equivalent

for HV Model

ND-OIL 11 or equivalent

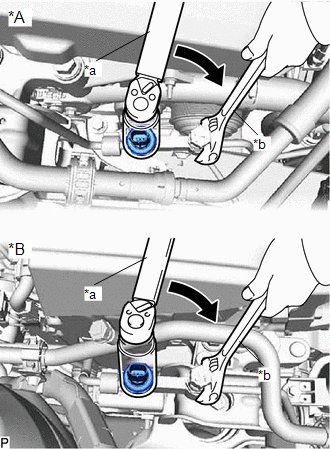

(c) Using a 27 mm deep socket wrench, install the air conditioner pressure sensor as shown in the illustration.

Torque:

10.8 N·m {110 kgf·cm, 8 ft·lbf}

*A

for HV Model

*B

for Gasoline Model

*a

Turn

*b

Hold

(d) Connect the connector.

2. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

Click here

3. WARM UP ENGINE (for Gasoline Model)

Click here

4. WARM UP COMPRESSOR (for HV Model)

Click here

5. INSPECT FOR REFRIGERANT LEAK

Click here
