Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

*1

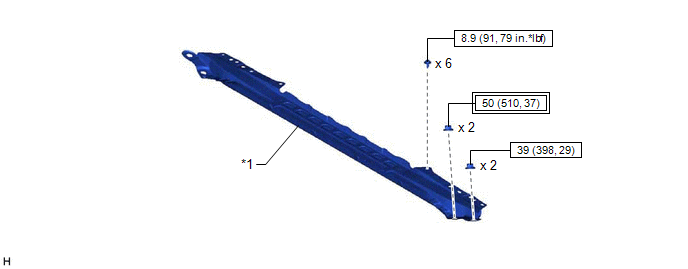

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

*1

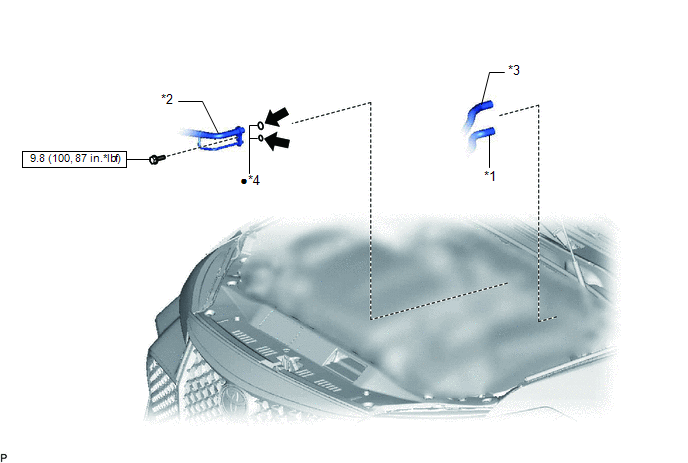

INLET HEATER WATER HOSE

*2

NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

*3

OUTLET HEATER WATER HOSE

*4

O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

ILLUSTRATION

*A

w/ Intelligent Parking Assist System

*B

w/ Active Noise Control System

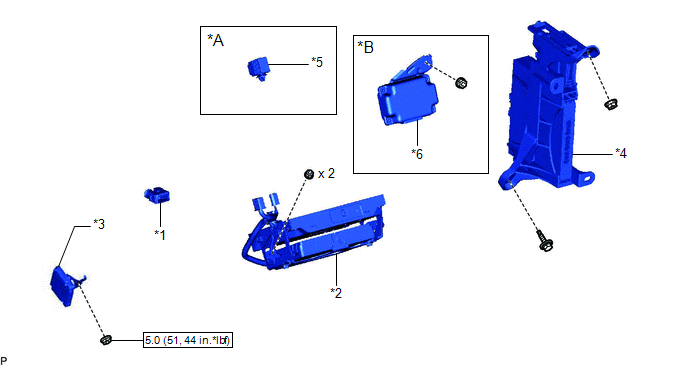

*1

COOLER (ROOM TEMP. SENSOR) THERMISTOR

*2

DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

*3

DRIVING SUPPORT ECU ASSEMBLY

*4

ECU INTEGRATION BOX RH

*5

NO. 1 CLEARANCE WARNING BUZZER

*6

STEREO COMPONENT EQUALIZER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

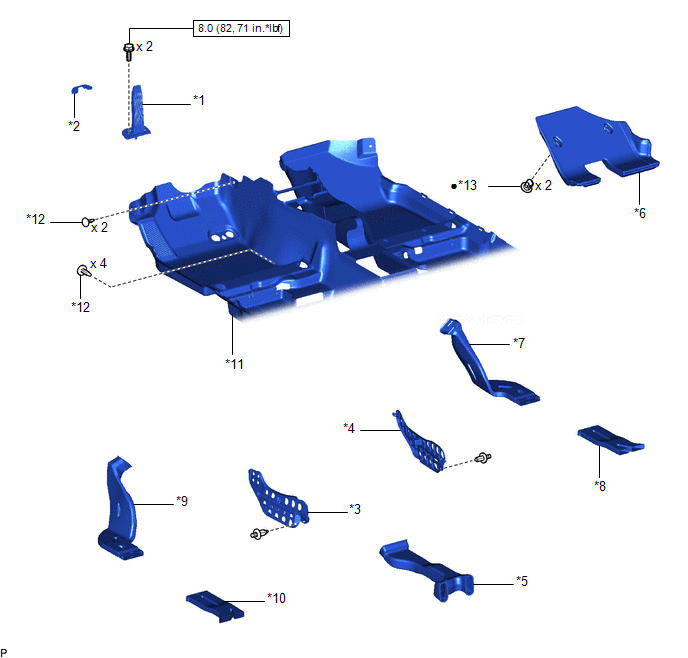

*1

ACCELERATOR PEDAL

*2

ACCELERATOR PEDAL PAD

*3

FLOOR CARPET BRACKET LH

*4

FLOOR CARPET BRACKET RH

*5

NO. 1 CONSOLE BOX DUCT

*6

NO. 3 DASH PANEL INSULATOR PAD

*7

REAR NO. 1 AIR DUCT

*8

REAR NO. 2 AIR DUCT

*9

REAR NO. 3 AIR DUCT

*10

REAR NO. 4 AIR DUCT

*11

FRONT FLOOR CARPET ASSEMBLY

*12

FRONT FLOOR CARPET CLIP

*13

CLIP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

ILLUSTRATION

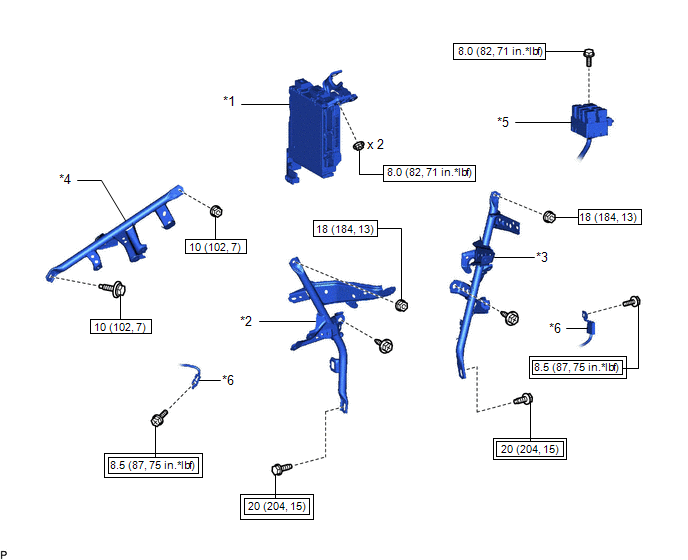

*1

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

*2

NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

*3

NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

*4

NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

*5

RELAY BLOCK HOLDER

*6

EARTH WIRE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

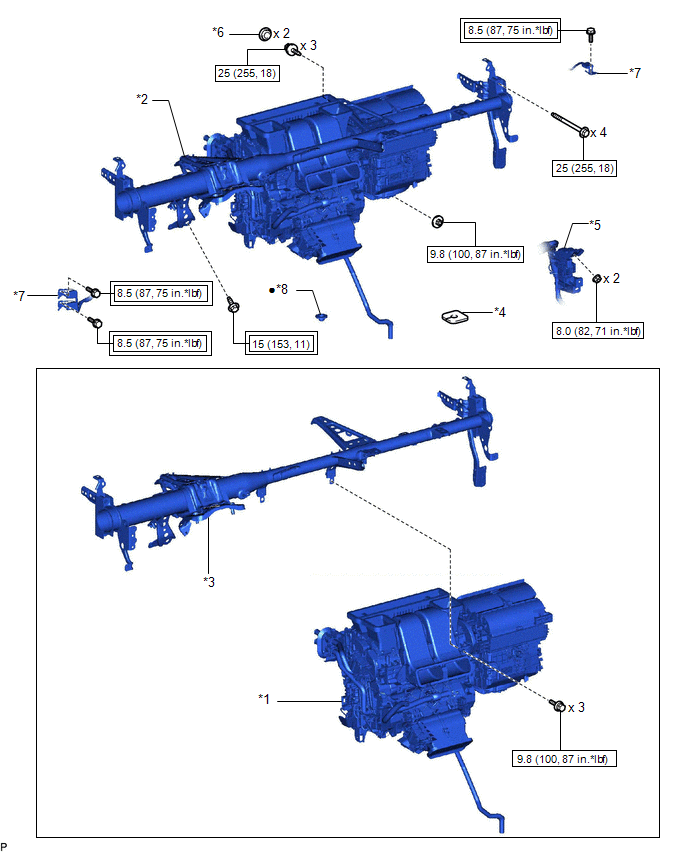

*1

AIR CONDITIONER UNIT ASSEMBLY

*2

INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY

*3

INSTRUMENT PANEL REINFORCEMENT ASSEMBLY

*4

FRONT FLOOR MAT

*5

CONNECTOR HOLDER

*6

HOLE PLUG

*7

EARTH WIRE

*8

COOLER UNIT DRAIN HOSE GROMMET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

ILLUSTRATION

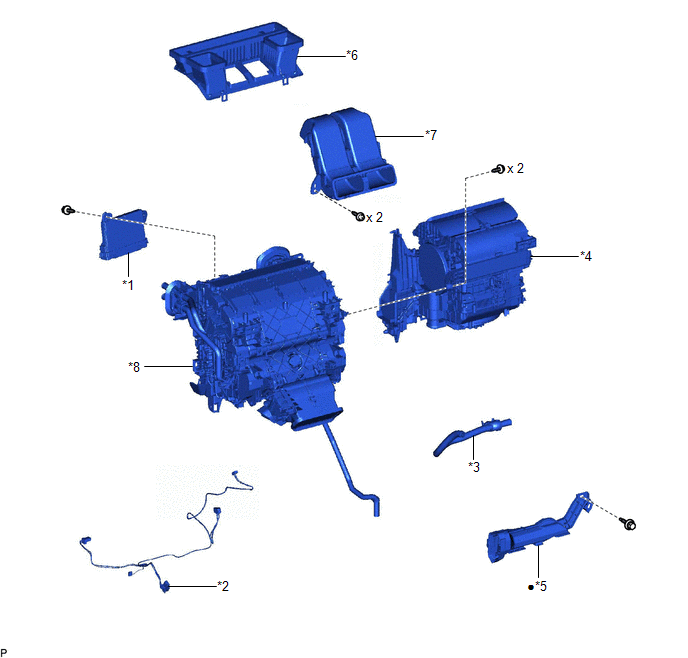

*1

AIR CONDITIONING AMPLIFIER ASSEMBLY

*2

AIR CONDITIONING HARNESS ASSEMBLY

*3

ASPIRATOR

*4

BLOWER ASSEMBLY

*5

NO. 2 AIR DUCT

*6

NO. 2 AIR DUCT SUB-ASSEMBLY

*7

NO. 4 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*8

AIR CONDITIONING RADIATOR ASSEMBLY

Non-reusable part

-

-

ILLUSTRATION

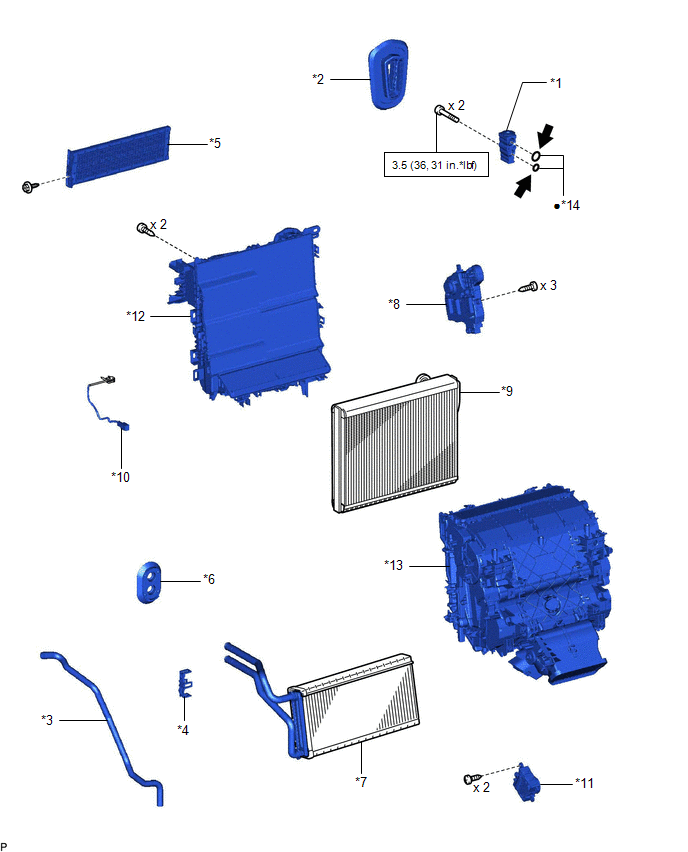

*1

COOLER EXPANSION VALVE

*2

COOLING UNIT PARTS

*3

DRAIN COOLER HOSE

*4

HEATER CLAMP

*5

HEATER COVER

*6

HEATER PIPE GROMMET

*7

HEATER RADIATOR UNIT SUB-ASSEMBLY

*8

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

*9

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

*10

NO. 1 COOLER THERMISTOR

*11

NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

*12

UPPER HEATER CASE

*13

LOWER HEATER CASE

*14

O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

    Air Conditioning Unit(for 2gr-fks)
