Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Front Blower Motor

Components

COMPONENTS

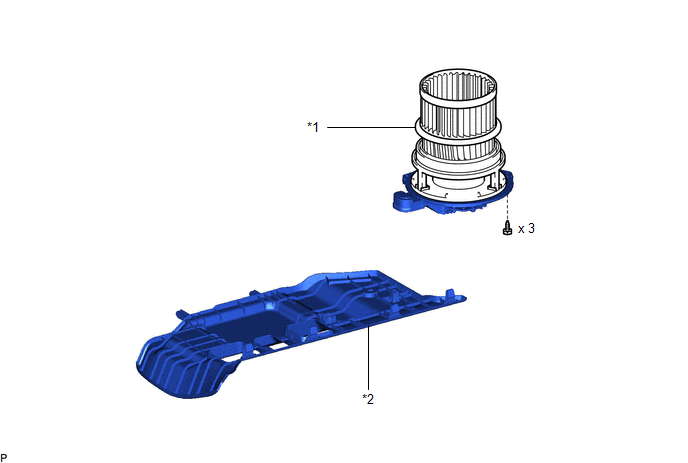

ILLUSTRATION

*1

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

*2

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Installation

INSTALLATION

PROCEDURE

1. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

(a) Install the blower motor with fan sub-assembly with the 3 screws.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.

(b) Connect the connector.

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

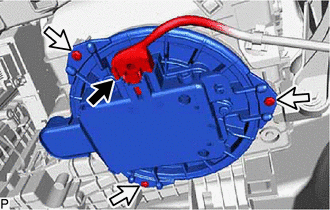

2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

(a) Disconnect the connector.

(b) Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.
