Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Manual(sos)switch

Components

COMPONENTS

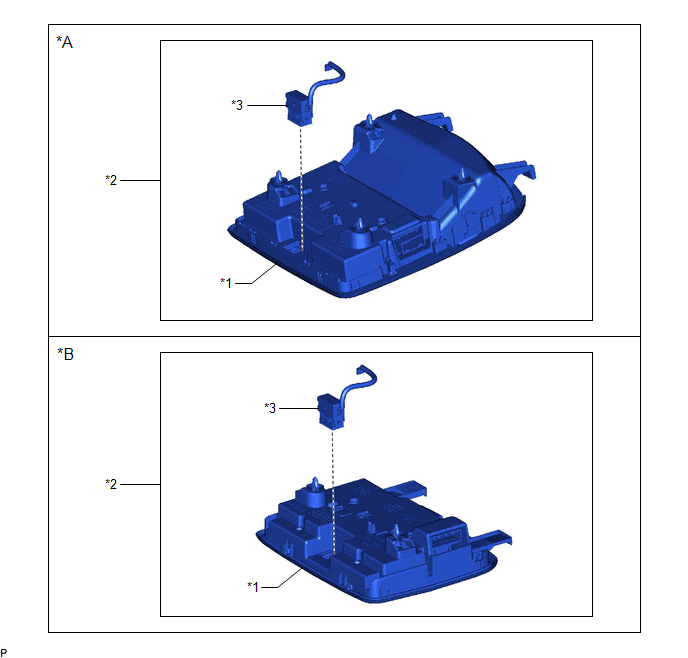

ILLUSTRATION

*A

for Normal Roof

*B

for Moon Roof

*1

MANUAL (SOS) SWITCH (ROOF CONSOLE BOX SUB-ASSEMBLY)

*2

ROOF CONSOLE BOX ASSEMBLY

*3

TELEPHONE MICROPHONE ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL MANUAL (SOS) SWITCH (ROOF CONSOLE BOX SUB-ASSEMBLY)

2. INSTALL TELEPHONE MICROPHONE ASSEMBLY

Click here

3. INSTALL ROOF CONSOLE BOX ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

Click here

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

Click here

3. REMOVE MANUAL (SOS) SWITCH (ROOF CONSOLE BOX SUB-ASSEMBLY)

    Removal
