DCM OPERATION HISTORY

DCM OPERATION HISTORY

This function shows the telematics network status when the DCM (Telematics Transceiver) was operated. Use this when no DTC is present but this telematics system was unable to connect to the call center. This symptom may occur if cell phone signal strength is very weak.

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Choose "Telematics" from the System Selection Menu, and then click "Utility".

(e) Click "DCM Operation History" on the Utility Selection Menu.

Body Electrical > Telematics > Utility

Tester Display

DCM Operation History

(f) Follow the instructions on the Techstream.

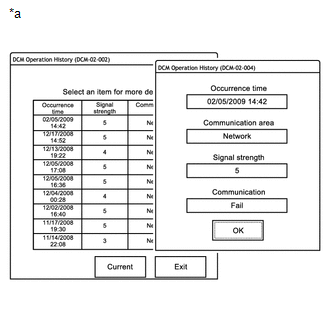

*a

Example

HINT:

  • "Occurrence time" indicates date of the DCM (Telematics Transceiver) operation.
  • "Communication area" indicates which communication network was used: Network (Verizon) or Roaming.
  • "Signal strength" indicates the strength of the cellular signal received by the vehicle: 0 (no signal) to 5 (strong).
  • "Communication" indicates connecting to the call center: Success or Fail*2.

    Result

    Description

    Success

    A successfully call made using the manual (SOS) switch or the navigation system (Destination Assist-If available)

    Fail*1

    A call that was unsuccessful.

NOTICE:

*1: A failure can also be caused by manually ending an SOS call, and does not necessarily indicate a device malfunction.

HINT:

*2: When communication to the call center fails, "Fail" is displayed.
