Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

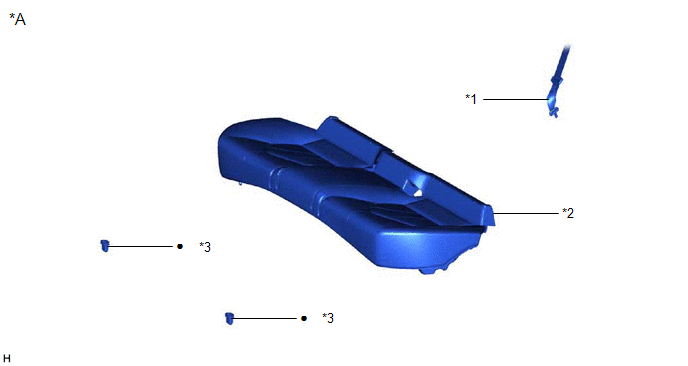

ILLUSTRATION

*A

for Gasoline Model

-

-

*1

REAR CENTER SEAT OUTER BELT ASSEMBLY

*2

REAR SEAT CUSHION ASSEMBLY

*3

REAR SEAT CUSHION LOCK HOOK

-

-

Non-reusable part

-

-

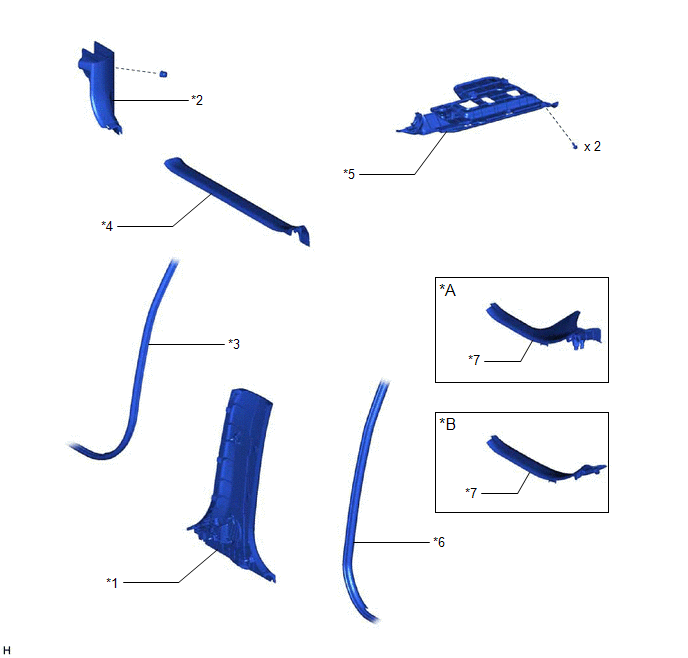

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

*1

CENTER PILLAR LOWER GARNISH LH

*2

COWL SIDE TRIM SUB-ASSEMBLY LH

*3

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*4

FRONT DOOR SCUFF PLATE LH

*5

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*6

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*7

REAR DOOR SCUFF PLATE LH

-

-

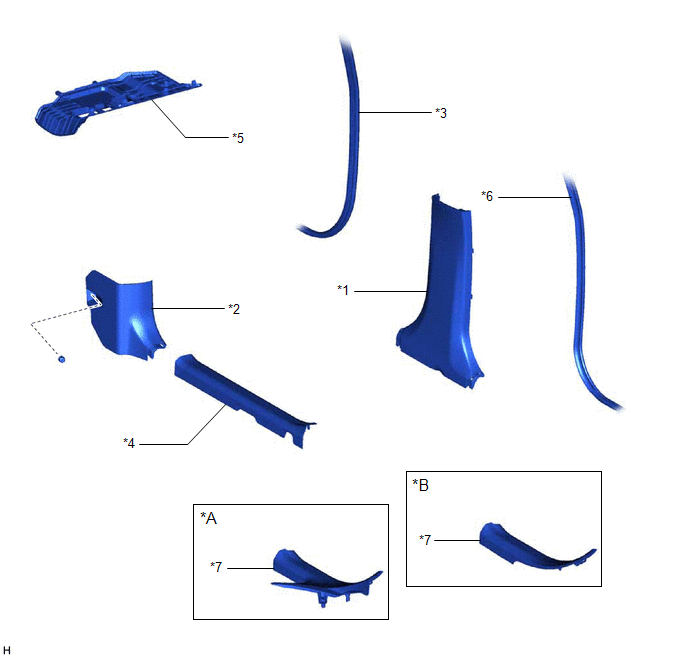

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

*1

CENTER PILLAR LOWER GARNISH RH

*2

COWL SIDE TRIM SUB-ASSEMBLY RH

*3

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*4

FRONT DOOR SCUFF PLATE RH

*5

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*6

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*7

REAR DOOR SCUFF PLATE RH

-

-

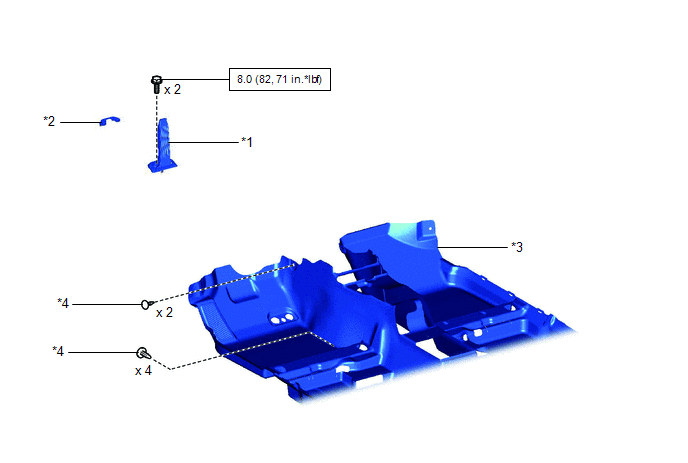

ILLUSTRATION

*1

ACCELERATOR PEDAL

*2

ACCELERATOR PEDAL PAD

*3

FRONT FLOOR CARPET ASSEMBLY

*4

FRONT FLOOR CARPET CLIP

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

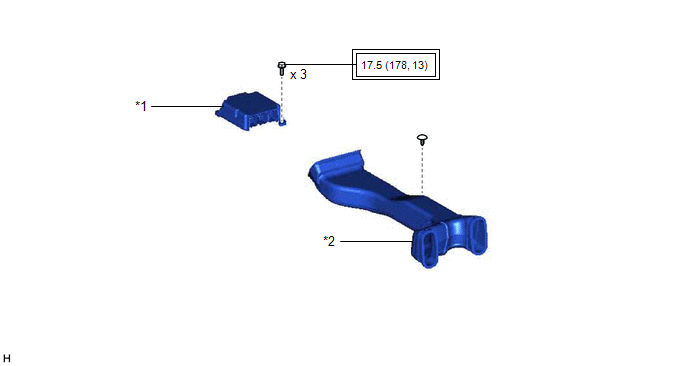

ILLUSTRATION

*1

AIRBAG ECU ASSEMBLY

*2

NO. 1 CONSOLE BOX DUCT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

    Center Airbag Sensor Assembly

    Installation
