Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

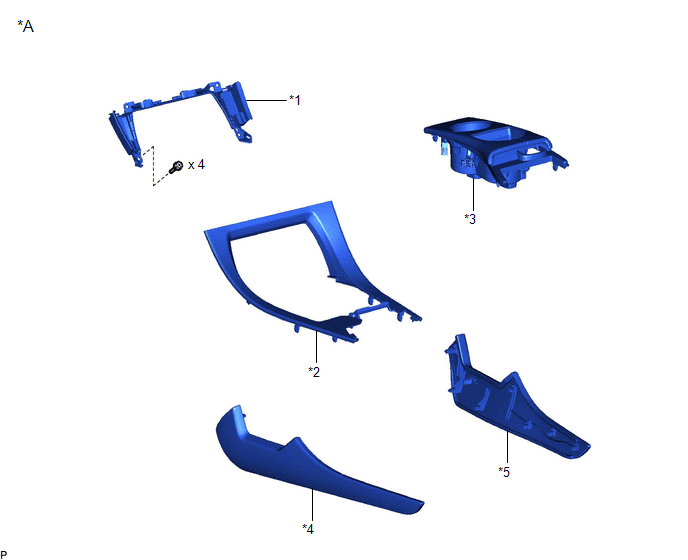

ILLUSTRATION

*A

for Front Side

-

-

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CONSOLE BOX POCKET SUB-ASSEMBLY

*3

FRONT CONSOLE UPPER PANEL GARNISH

*4

LOWER INSTRUMENT PANEL FINISH PANEL LH

*5

LOWER INSTRUMENT PANEL FINISH PANEL RH

-

-

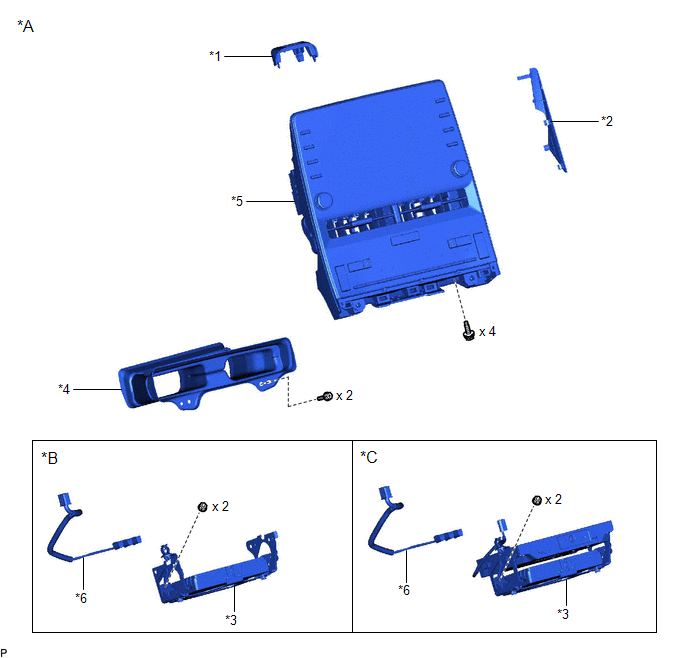

ILLUSTRATION

*A

for Front Side

*B

w/o Navigation System

*C

w/ Navigation System

-

-

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

*4

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*5

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

*6

TELEPHONE AND GPS ANTENNA CORD

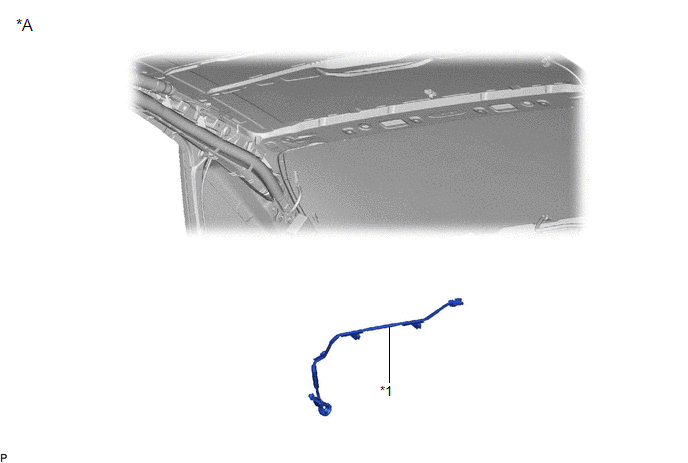

ILLUSTRATION

*A

for Roof Side

-

-

*1

TELEPHONE AND GPS ANTENNA CORD

-

-

    Telephone And Gps Antenna Cords

    Installation
