PARTS LOCATION

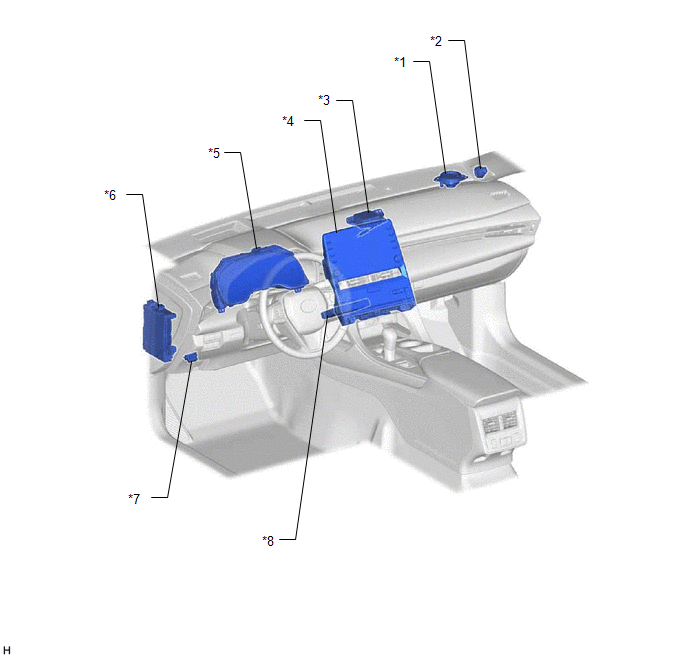

ILLUSTRATION

*1

FRONT NO. 2 SPEAKER ASSEMBLY RH (for 8 Speakers)

*2

FRONT NO. 3 SPEAKER ASSEMBLY RH (for 14 Speakers)

*3

NAVIGATION ANTENNA ASSEMBLY

- Telephone Sub

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

COMBINATION METER ASSEMBLY

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

DLC3

*8

DCM (TELEMATICS TRANSCEIVER)

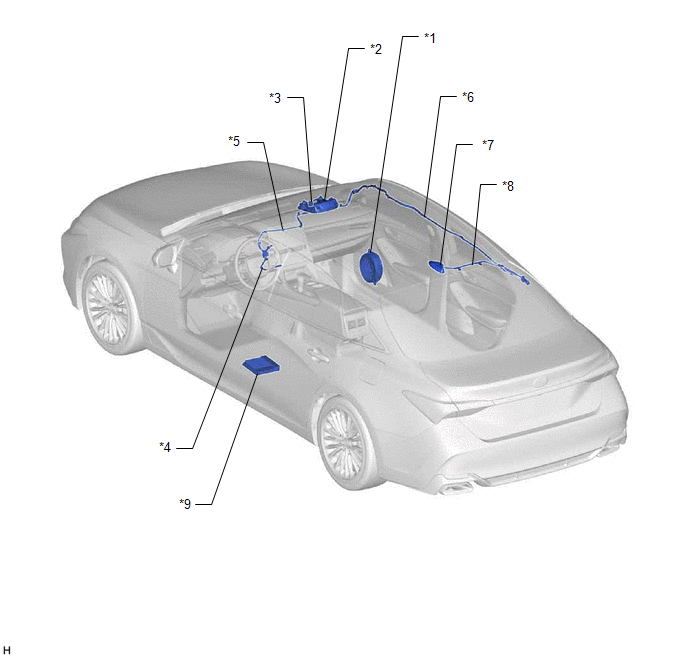

ILLUSTRATION

*1

FRONT NO. 1 SPEAKER ASSEMBLY RH

*2

ROOF CONSOLE BOX SUB-ASSEMBLY

- MANUAL (SOS) SWITCH

*3

TELEPHONE MICROPHONE ASSEMBLY

*4

NO. 6 ANTENNA CORD SUB-ASSEMBLY

*5

NO. 4 ANTENNA CORD SUB-ASSEMBLY

*6

NO. 3 ANTENNA CORD SUB-ASSEMBLY

*7

TELEPHONE ANTENNA ASSEMBLY

- GPS

- SDARS

- Telephone Main

*8

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*9

STEREO COMPONENT AMPLIFIER ASSEMBLY (for 14 Speakers)

-

-
