Toyota Avalon Service & Repair Manual: Cursor or Map Rotates when Vehicle Stopped

PROCEDURE

1.

CHECK CONDITION

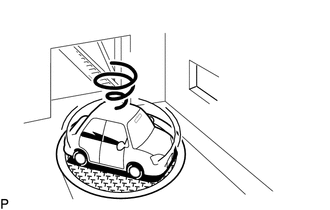

(a) Check with the customer if the vehicle has been turned by a turntable.

OK:

Vehicle has not been turned by a turntable.

HINT:

If the vehicle is turned on a turntable with the engine switch on (IG), the system may store the angular velocity. As a result, the vehicle position cursor may deviate. In this case, the vehicle position cursor will return to normal by turning the engine switch off and back to on (IG) again with the vehicle completely stopped.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

TURN ENGINE SWITCH ON (IG) WHEN VEHICLE IS COMPLETELY STOPPED
