COMPONENTS

ILLUSTRATION

*A

for HV Model

-

-

*1

LUGGAGE TRIM SERVICE HOLE COVER

-

-

ILLUSTRATION

*A

w/ Seat Heater System

-

-

*1

SPARE WHEEL COVER ASSEMBLY

-

-

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

*C

w/ Seat Heater System

-

-

*1

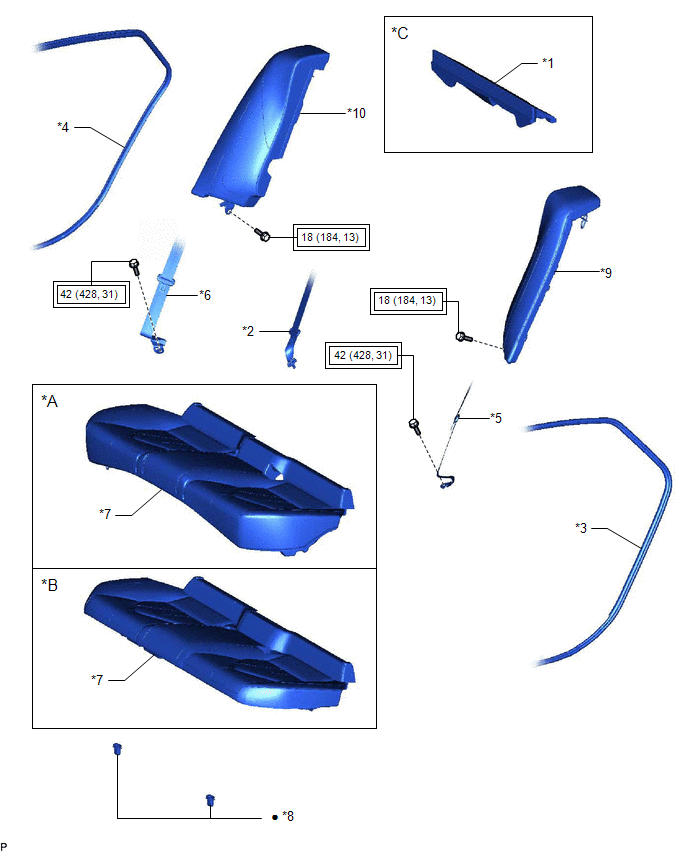

LUGGAGE COMPARTMENT INNER TRIM PAD

*2

REAR CENTER SEAT OUTER BELT ASSEMBLY

*3

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*4

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*5

REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

*6

REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

*7

REAR SEAT CUSHION ASSEMBLY

*8

REAR SEAT CUSHION LOCK HOOK

*9

REAR SIDE SEATBACK ASSEMBLY LH

*10

REAR SIDE SEATBACK ASSEMBLY RH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*1

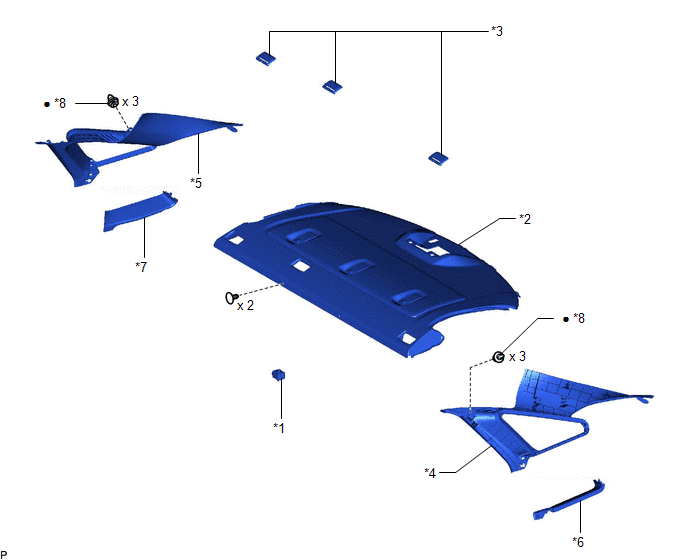

NO. 2 CLEARANCE WARNING BUZZER

*2

PACKAGE TRAY TRIM PANEL ASSEMBLY

*3

REAR SEAT SHOULDER BELT COVER

*4

ROOF SIDE INNER GARNISH LH

*5

ROOF SIDE INNER GARNISH RH

*6

ROOF SIDE RAIL GARNISH ASSEMBLY LH

*7

ROOF SIDE RAIL GARNISH ASSEMBLY RH

*8

CLIP

Non-reusable part

-

-

    Clearance Warning Buzzer(for Rear)
