PARTS LOCATION

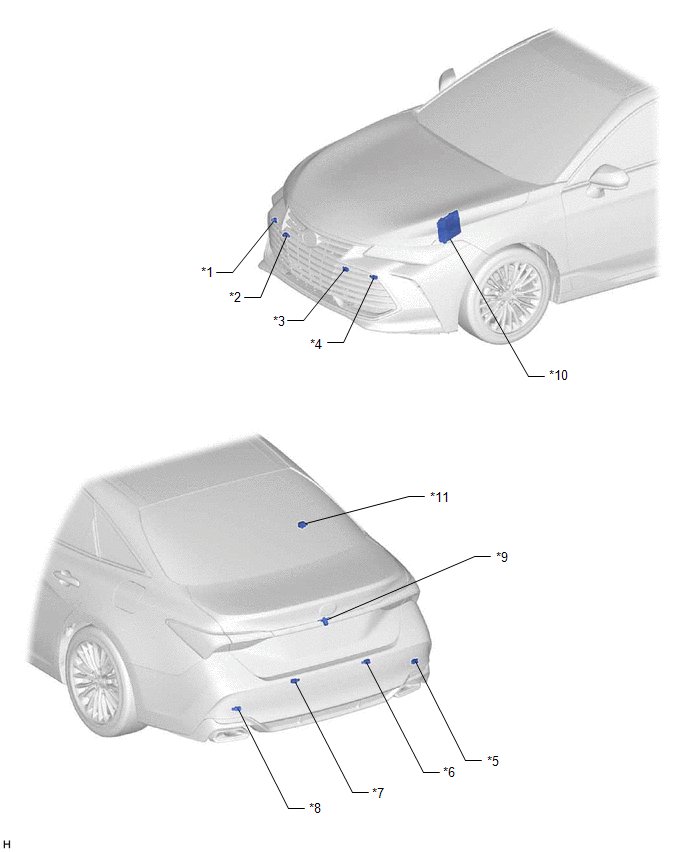

ILLUSTRATION

*1

FRONT CORNER ULTRASONIC SENSOR RH

*2

FRONT CENTER ULTRASONIC SENSOR RH

*3

FRONT CENTER ULTRASONIC SENSOR LH

*4

FRONT CORNER ULTRASONIC SENSOR LH

*5

REAR CORNER ULTRASONIC SENSOR RH

*6

REAR CENTER ULTRASONIC SENSOR RH

*7

REAR CENTER ULTRASONIC SENSOR LH

*8

REAR CORNER ULTRASONIC SENSOR LH

*9

TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

*10

ECM

*11

NO. 2 CLEARANCE WARNING BUZZER

-

-

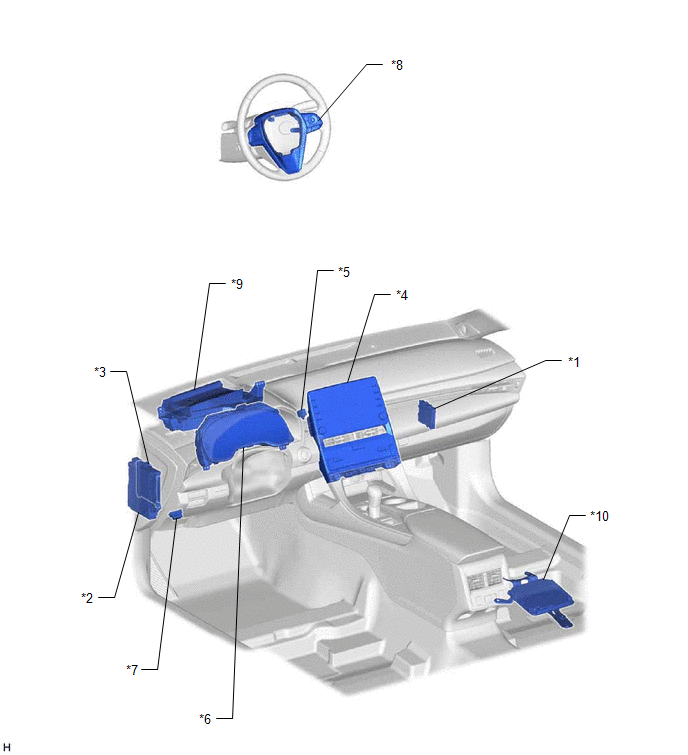

ILLUSTRATION

*1

CLEARANCE WARNING ECU ASSEMBLY

*2

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 4 FUSE

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

- MULTI-DISPLAY

*5

NO. 1 CLEARANCE WARNING BUZZER

*6

COMBINATION METER ASSEMBLY

- MULTI-INFORMATION DISPLAY

*7

DLC3

*8

STEERING PAD SWITCH ASSEMBLY

*9

HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY)(w/ Headup Display System)

*10

PARKING ASSIST ECU (w/ Panoramic View Monitor System)
