Toyota Avalon (XX50) 2019-2022 Owners Manual: Garage door opener

The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices.

HomeLink

The HomeLink wireless control system in your vehicle has 3 buttons which can be programmed to operate 3 different devices. Refer to the programming methods on the following pages to determine the method which is appropriate for the device.

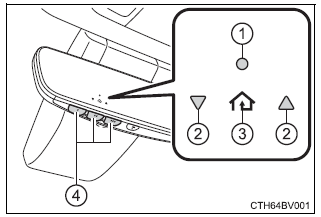

  1. HomeLink indicator light
  2. Garage door operation indicators
  3. HomeLink icon
    Illuminates while HomeLink is operating.
  4. Buttons

■ Before programming the HomeLink

  • During programming, it is possible that garage doors, gates, or other devices may operate. For this reason, make sure that people and objects are clear of the garage door or other devices to prevent injury or other potential harm.
  • It is recommended that a new battery be placed in the remote control transmitter for more accurate programming.
  • Garage door opener motors manufactured after 1995 may be equipped with rolling code protection. If this is the case, you may need a stepladder or other sturdy, safe device to reach the "Learn" or "Smart" button on the garage door opener motor.

■ Programming the HomeLink Steps 1 through must 3 be performed within 60 seconds, otherwise the indicator light will stop flashing and programming will not be able to be completed.

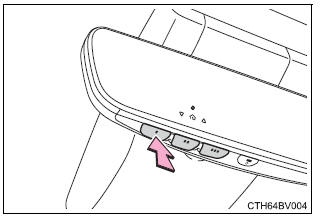

1. Press and release the HomeLink button you want to program and check that the HomeLink indicator light flashes orange.

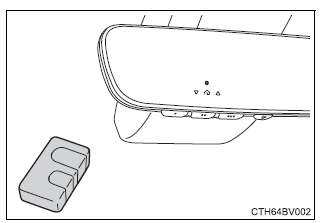

2. Point the remote control transmitter for the device at the rear view mirror, 1 to 3 in.

(25 to 75 mm) from the HomeLink buttons.

Keep the HomeLink indicator light in view while programming.

3. Program a device.

Other interior features

Programming a device other than an entry gate (for U.S.A. owners)

Press and hold the remote control transmitter button until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code), then release the button.

Programming an entry gate (for U.S.A. owners)/Programming a device in the Canadian market

Press and release the remote control transmitter button at 2 second intervals, repeatedly, until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code).

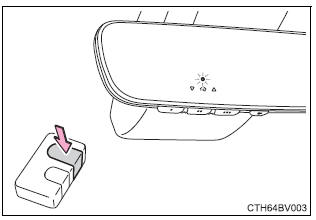

4. Test the HomeLink operation by pressing the newly programmed button and observing the indicator light:

  • Indicator light illuminates: Programming of a fixed code device has completed. The garage door or other device should operate when a HomeLink button is pressed and released.
  • Indicator light flashes rapidly: The garage door opener motor or other device is equipped with a rolling code. To complete programming, firmly press and hold the HomeLink button for 2 seconds then release it.
  • If the garage door or other device does not operate, proceed to "Programming a rolling code system".

5. Repeat the steps above to program another device for any of the remaining HomeLink buttons.

■ Programming a rolling code system 2 or more people may be necessary to complete rolling code programming.

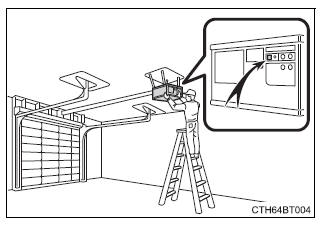

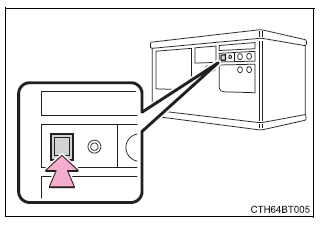

1. Locate the "Learn" or "Smart" button on the garage door opener motor in the garage.

This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer.

Refer to the Owner's manual supplied with the garage door opener motor for details.

Other interior features

2. Press and release the "Learn" or "Smart" button.

Perform 2 within 30 seconds after performing 2.

3. Press and hold the desired HomeLink button (inside the vehicle) for 2 seconds and release it. Repeat this sequence (press/hold/ release) up to 3 times to complete programming.

If the garage door opener motor operates when the HomeLink button is pressed, the garage door opener motor recognizes the HomeLink signal.

Other interior features

■ Enabling 2-way communication with a garage door (only available for compatible devices) When enabled, 2-way communication allows you to check the status of the opening and closing of a garage door through indicators in your vehicle.

2-way communication is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to www.HomeLink.com.)

1. Within 5 seconds after programming the garage door opener has been completed, if the garage door opener motor is trained to HomeLink, both garage door operation indicators will flash rapidly green and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform 2 and 3 within the first 10 presses of the HomeLink button after programming has been completed.

2. Press a programmed HomeLink button to operate a garage door.

3. Within 1 minute of pressing the HomeLink button, after the garage door operation has stopped, press the "Learn" or "Smart" button on the garage door opener motor. Within 5 seconds of the establishment of 2-way communication with the garage door opener, both garage door operation indicators in the vehicle will flash rapidly green and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.

■ Reprogramming a single HomeLink button When the following procedure is performed, buttons which already have devices registered to them can be overwritten:

1. With one hand, press and hold the desired HomeLink button.

2. When the HomeLink indicator starts flashing orange, continue to hold the HomeLink button and perform "Programming the HomeLink" 1 (it takes 20 seconds for the HomeLink indicator to start flashing).

Operating the HomeLink

Press the appropriate HomeLink button. The HomeLink indicator light should turn on.

Garage door operation indicators

The status of the opening and closing of a garage door is shown by the indicators.

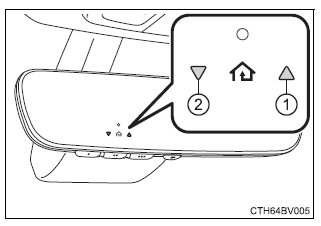

  1. Opening
  2. Closing

This function is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to www.HomeLink.com.)

Color Status
Orange (flashing) Currently opening/closing
Green Opening/closing has completed
Red (flashing) Feedback signals cannot be received

The indicators can operate within approximately 820 ft. (250 m) of the garage door. However, if there are obstructions between the garage door and the vehicle, such as houses and trees, feedback signals from the garage door may not be received. To recall the previous door operation status, press and release either HomeLink buttons and or and simultaneously.

The last recorded status will be displayed for 3 seconds.

Erasing the entire HomeLink memory (all three codes)

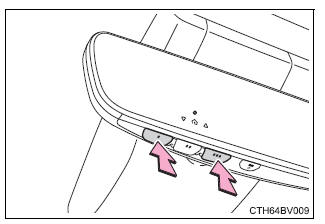

Press and hold the 2 outside buttons for 10 seconds until the HomeLink indicator light changes from continuously lit orange to rapidly flashing green.

If you sell your vehicle, be sure to erase the programs stored in the HomeLink memory.

Other interior features

■Codes stored in the HomeLink memory

  • The registered codes are not erased even if the battery cable is disconnected.
  • If learning failed when registering a different code to a HomeLink button that already has a code registered to it, the already registered code will not be erased.

■Before programming

  • Install a new battery in the transmitter.
  • The battery side of the transmitter must be pointed away from the Home- Link.

■When support is necessary

Visit on the web at www.homelink.com/toyota or call 1-800-355-3515.

WARNING

■When programming a garage door or other remote control device The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm.

■Conforming to federal safety standards Do not use the HomeLink compatible transceiver with any garage door opener or device that lacks safety stop and reverse features as required by federal safety standards. This includes any garage door that cannot detect an interfering object. A door or device without these features increases the risk of death or serious injury.

■When operating or programming HomeLink Never allow a child to operate or play with the HomeLink buttons.

    Other interior features
