PARTS LOCATION

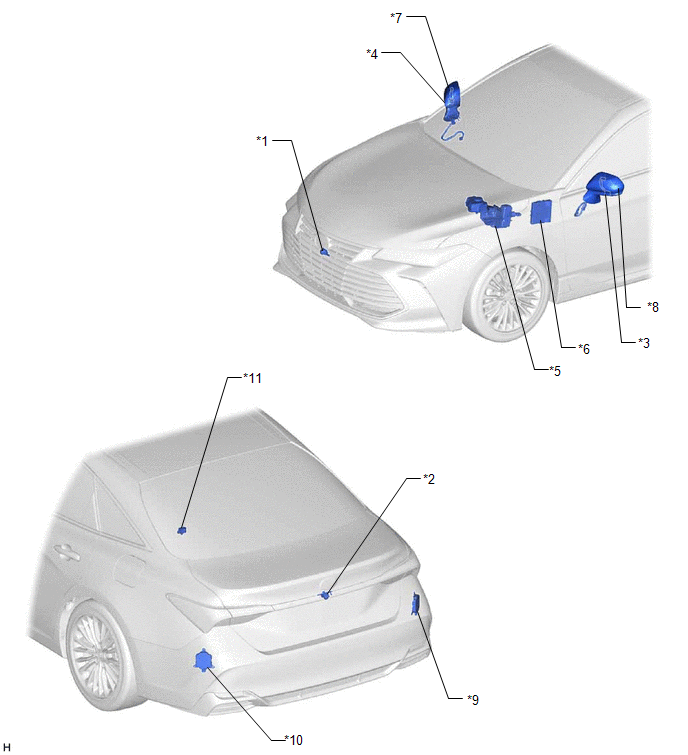

ILLUSTRATION

*1

FRONT TELEVISION CAMERA ASSEMBLY

*2

TELEVISION CAMERA ASSEMBLY

*3

SIDE TELEVISION CAMERA ASSEMBLY LH

*4

SIDE TELEVISION CAMERA ASSEMBLY RH

*5

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

- SKID CONTROL ECU

*6

HYBRID VEHICLE CONTROL ECU ASSEMBLY

*7

OUTER REAR VIEW MIRROR ASSEMBLY RH

*8

OUTER REAR VIEW MIRROR ASSEMBLY LH

*9

BLIND SPOT MONITOR SENSOR RH

*10

BLIND SPOT MONITOR SENSOR LH

*11

RCTA BUZZER (BLIND SPOT MONITOR BUZZER)

-

-

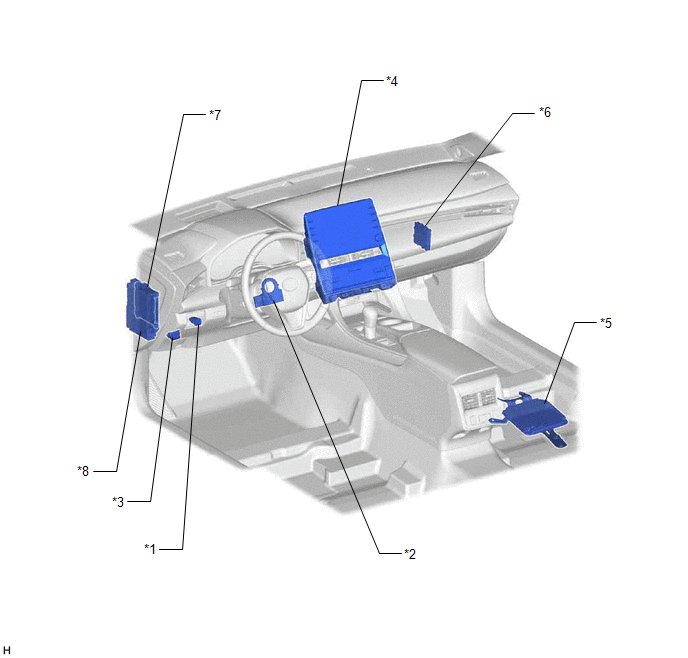

ILLUSTRATION

*1

PANORAMIC VIEW MONITOR SWITCH

*2

STEERING SENSOR

*3

DLC3

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

PARKING ASSIST ECU

*6

CLEARANCE WARNING ECU ASSEMBLY

*7

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*8

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE

- ECU-DCC NO. 1 FUSE

- ECU-ACC FUSE

- ECU-B NO. 2 FUSE

- ECU-IG1 NO. 2 FUSE

- ACC Relay

- IG1-NO. 1 Relay

- BKUP LP Relay
