COMPONENTS

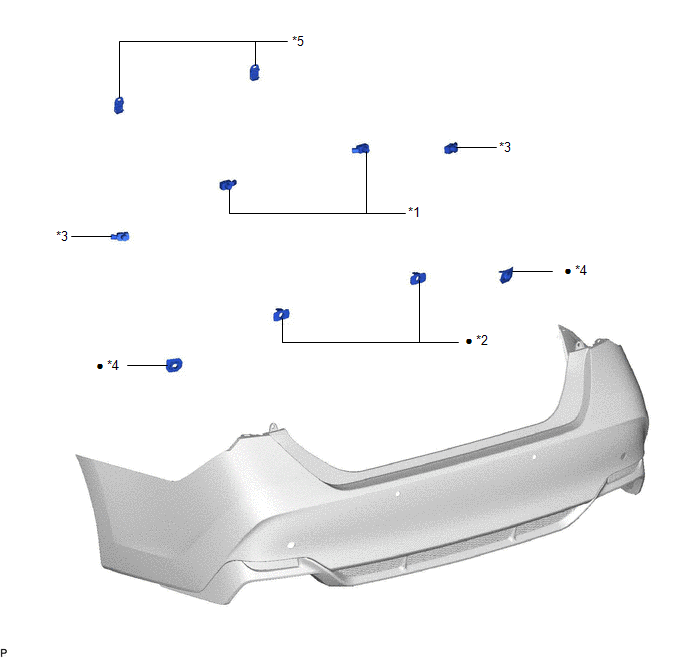

ILLUSTRATION

*1

REAR CENTER ULTRASONIC SENSOR

*2

REAR CENTER ULTRASONIC SENSOR RETAINER

*3

REAR CORNER ULTRASONIC SENSOR

*4

REAR CORNER ULTRASONIC SENSOR RETAINER

*5

ULTRASONIC SENSOR CLIP

-

-

●

Non-reusable part

-

-
