PARTS LOCATION

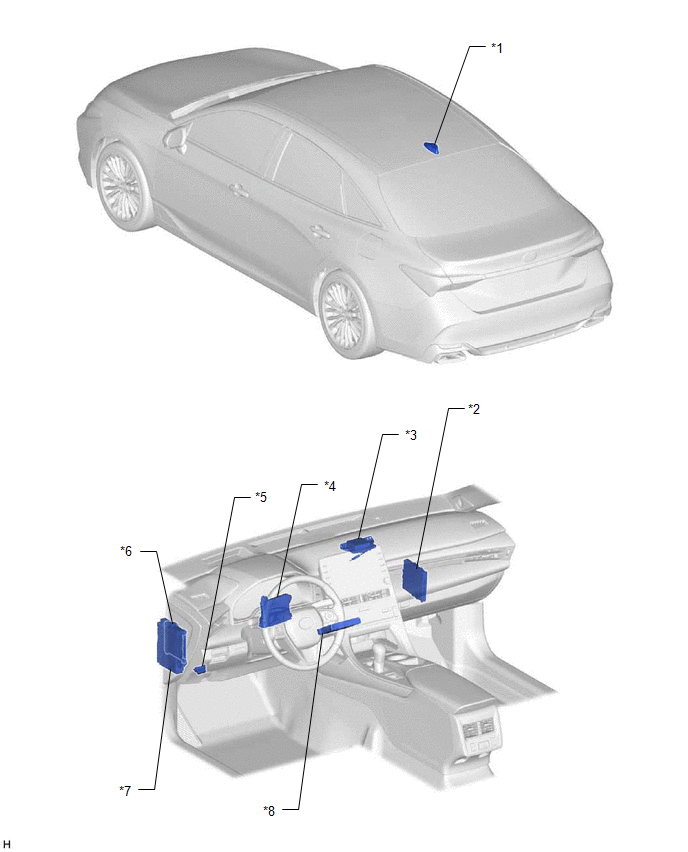

ILLUSTRATION

*1

TELEPHONE ANTENNA ASSEMBLY

- GPS

- Telephone Main

*2

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*3

NAVIGATION ANTENNA ASSEMBLY

- Telephone Sub

*4

AIR CONDITIONING AMPLIFIER ASSEMBLY

*5

DLC3

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- DCM FUSE

- ECU-IG2 NO. 3 FUSE

- ECU-ACC FUSE

*8

DCM (TELEMATICS TRANSCEIVER)
    Operation Check

    Precaution
