Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

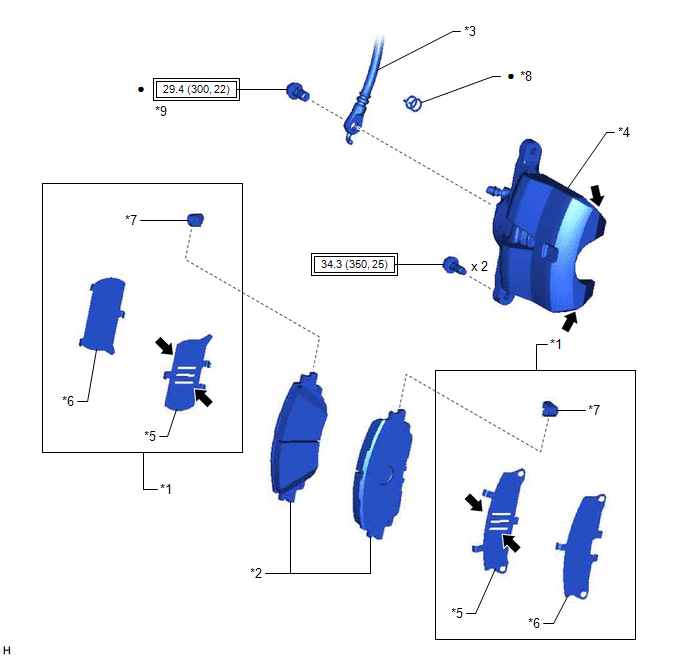

ILLUSTRATION

*1

FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

*2

FRONT DISC BRAKE PAD

*3

FRONT FLEXIBLE HOSE

*4

FRONT DISC BRAKE CYLINDER ASSEMBLY

*5

FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM

*6

FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM

*7

FRONT DISC BRAKE PAD WEAR INDICATOR PLATE

*8

GASKET

*9

UNION BOLT

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Disc brake grease

-

-

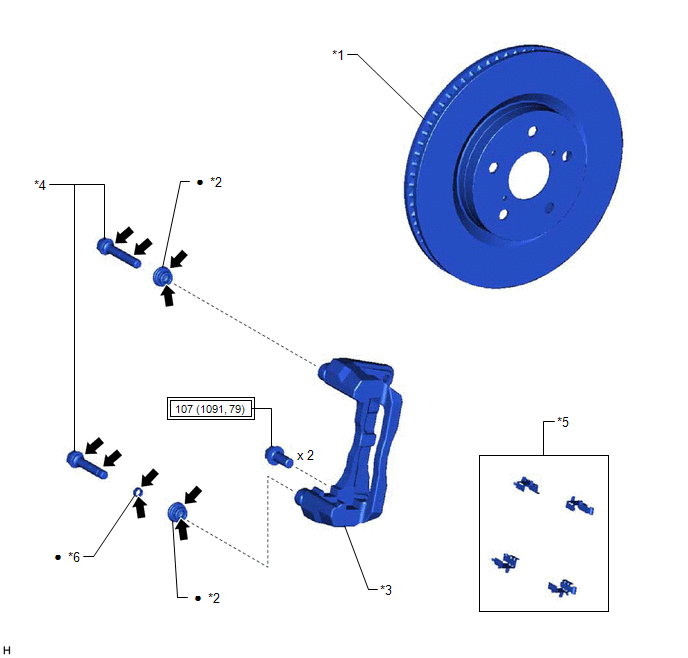

ILLUSTRATION

*1

FRONT DISC

*2

FRONT DISC BRAKE BUSHING DUST BOOT

*3

FRONT DISC BRAKE CYLINDER MOUNTING

*4

FRONT DISC BRAKE CYLINDER SLIDE PIN

*5

FRONT DISC BRAKE PAD SUPPORT PLATE

*6

FRONT DISC BRAKE CYLINDER SLIDE BUSHING

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

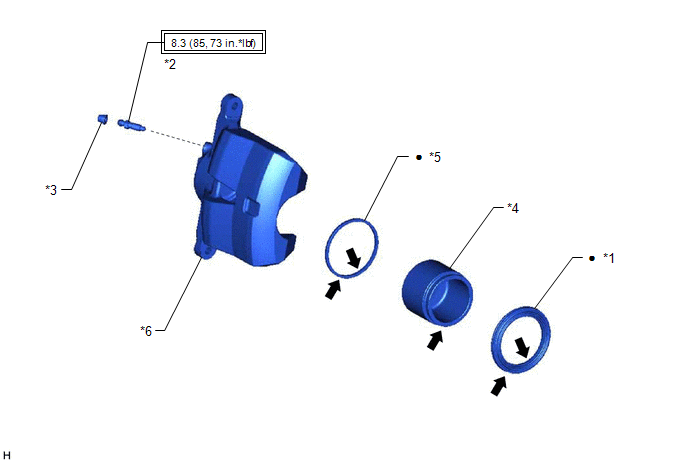

ILLUSTRATION

*1

CYLINDER BOOT

*2

FRONT DISC BRAKE BLEEDER PLUG

*3

FRONT DISC BRAKE BLEEDER PLUG CAP

*4

FRONT DISC BRAKE PISTON

*5

PISTON SEAL

*6

FRONT DISC BRAKE CYLINDER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

    Front Brake

    Disassembly
