Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

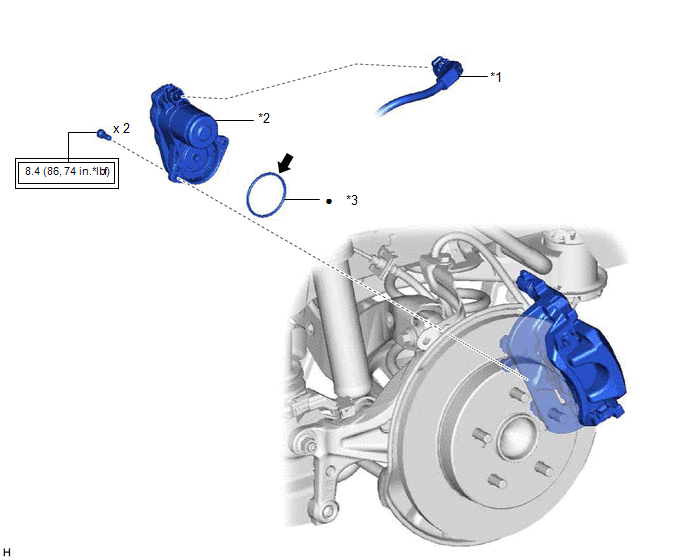

ILLUSTRATION

*1

NO. 2 PARKING BRAKE WIRE ASSEMBLY

*2

PARKING BRAKE ACTUATOR ASSEMBLY

*3

O-RING

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

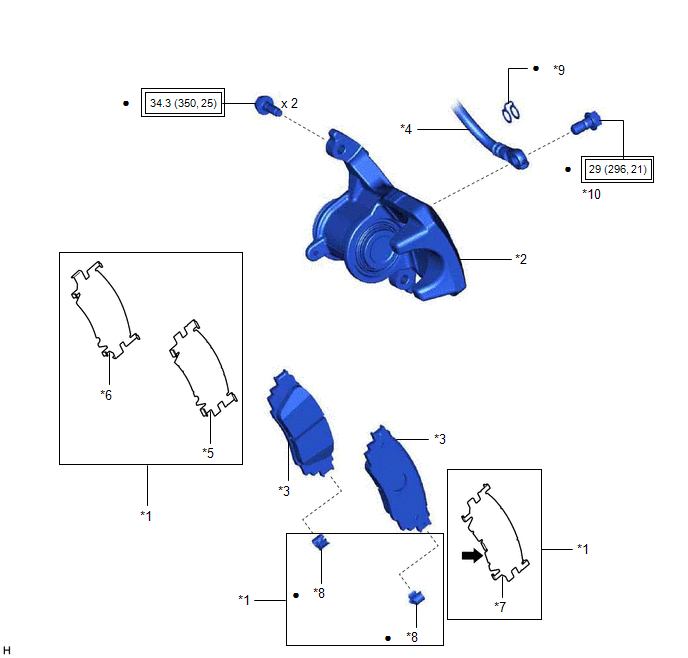

ILLUSTRATION

*1

REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

*2

REAR DISC BRAKE CYLINDER ASSEMBLY

*3

REAR DISC BRAKE PAD

*4

REAR FLEXIBLE HOSE

*5

REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM

*6

REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM

*7

REAR DISC BRAKE ANTI-SQUEAL SHIM

*8

REAR DISC BRAKE PAD WEAR INDICATOR PLATE

*9

GASKET

*10

UNION BOLT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Disc brake grease

-

-

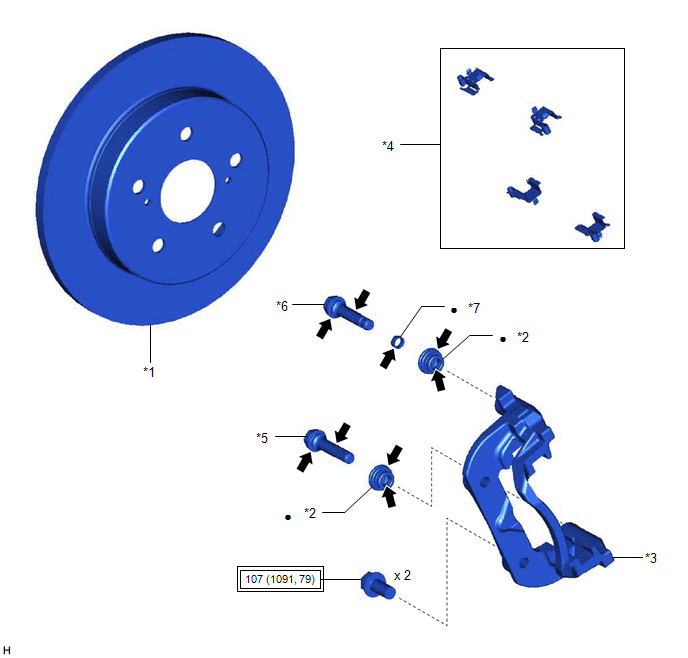

ILLUSTRATION

*1

REAR DISC

*2

REAR DISC BRAKE BUSHING DUST BOOT

*3

REAR DISC BRAKE CYLINDER MOUNTING

*4

REAR DISC BRAKE PAD SUPPORT PLATE

*5

REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN

*6

REAR NO. 2 DISC BRAKE CYLINDER SLIDE PIN

*7

REAR DISC BRAKE CYLINDER SLIDE BUSHING

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

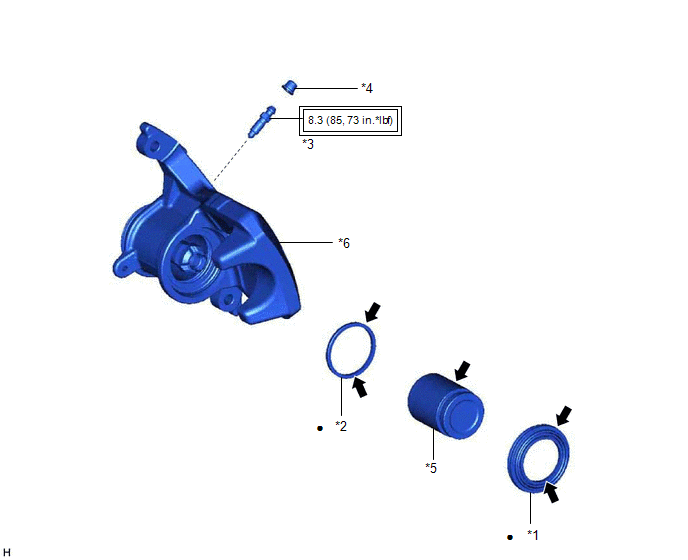

ILLUSTRATION

*1

CYLINDER BOOT

*2

PISTON SEAL

*3

REAR DISC BRAKE BLEEDER PLUG

*4

REAR DISC BRAKE BLEEDER PLUG CAP

*5

REAR DISC BRAKE PISTON

*6

REAR DISC BRAKE CYLINDER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

    Rear Brake

    Disassembly
