Components

COMPONENTS

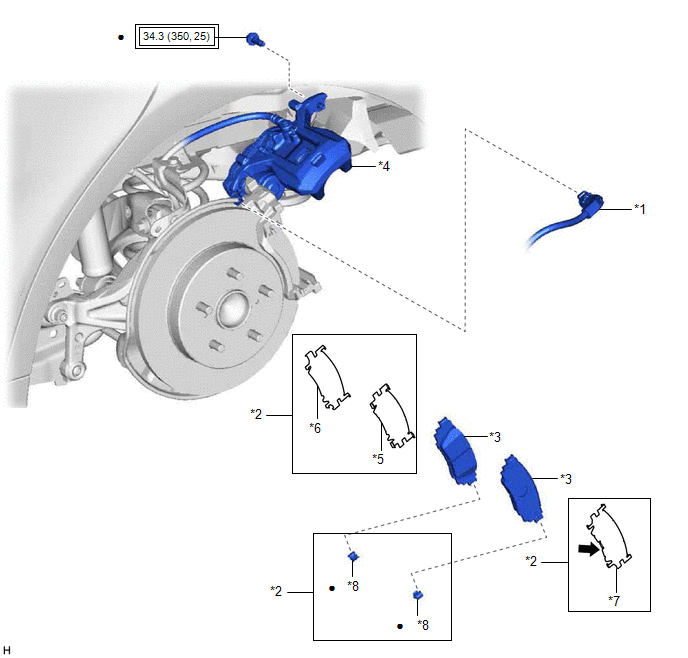

ILLUSTRATION

*1

NO. 2 PARKING BRAKE WIRE ASSEMBLY

*2

REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

*3

REAR DISC BRAKE PAD

*4

REAR DISC BRAKE CYLINDER ASSEMBLY

*5

REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM

*6

REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM

*7

REAR DISC BRAKE ANTI-SQUEAL SHIM

*8

REAR DISC BRAKE PAD WEAR INDICATOR PLATE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Disc brake grease

-

-
