COMPONENTS

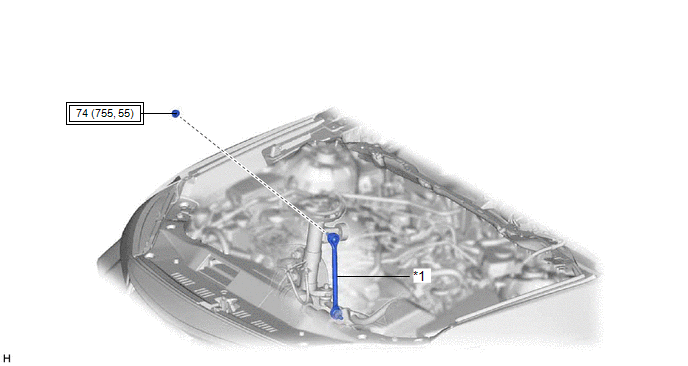

ILLUSTRATION

*1

FRONT STABILIZER LINK ASSEMBLY RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

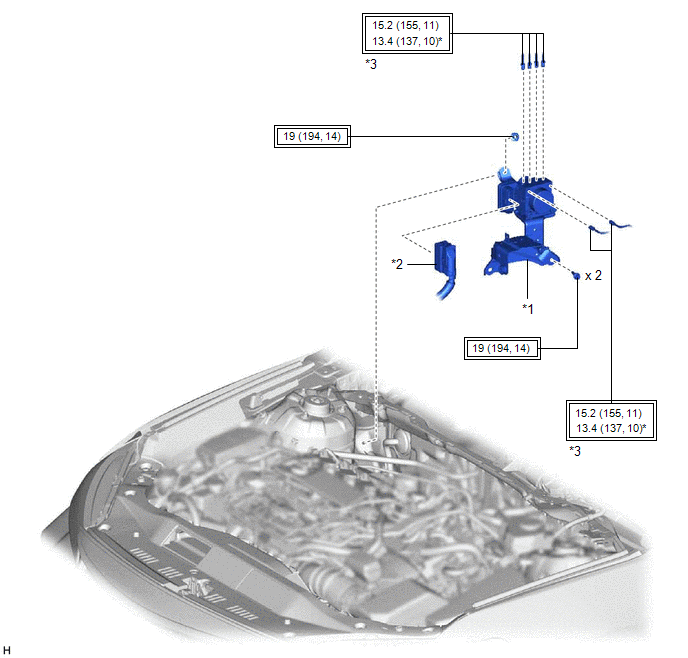

ILLUSTRATION

*1

BRAKE ACTUATOR WITH BRACKET

*2

CONNECTOR

*3

BRAKE LINE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

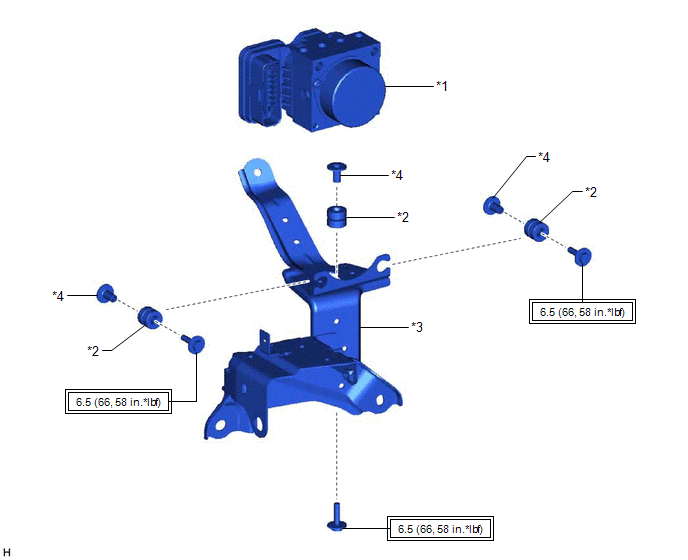

ILLUSTRATION

*1

BRAKE ACTUATOR ASSEMBLY

*2

BRAKE ACTUATOR BOLT CUSHION

*3

BRAKE ACTUATOR BRACKET ASSEMBLY

*4

BRAKE ACTUATOR CASE COLLAR

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
    Brake Actuator(for Hv Model)

    Inspection
