COMPONENTS

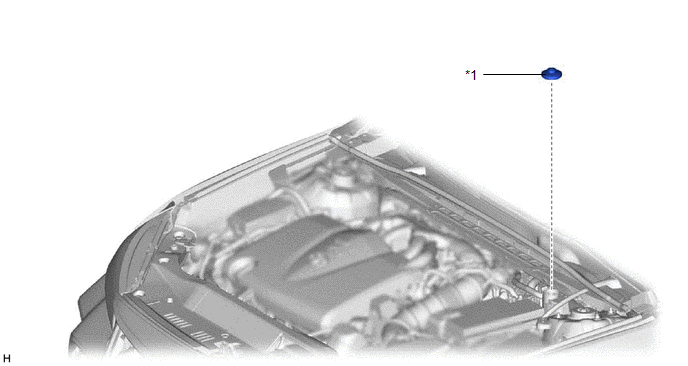

ILLUSTRATION

*1

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

-

-

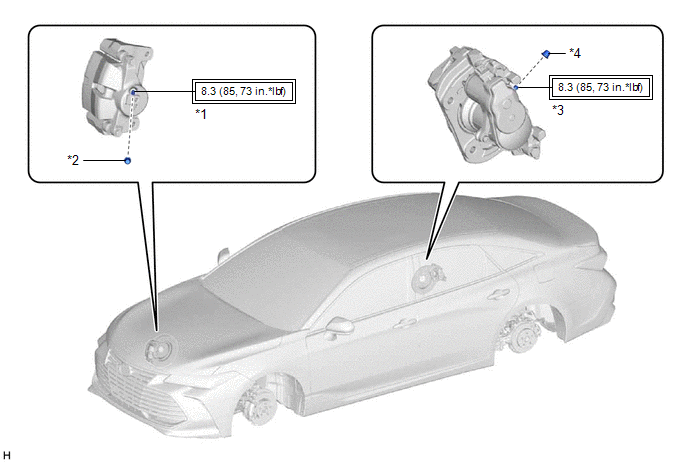

ILLUSTRATION

*1

FRONT DISC BRAKE BLEEDER PLUG

*2

FRONT DISC BRAKE BLEEDER PLUG CAP

*3

REAR DISC BRAKE BLEEDER PLUG

*4

REAR DISC BRAKE BLEEDER PLUG CAP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-
