Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

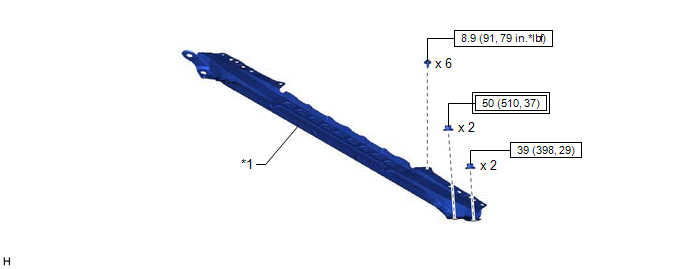

ILLUSTRATION

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

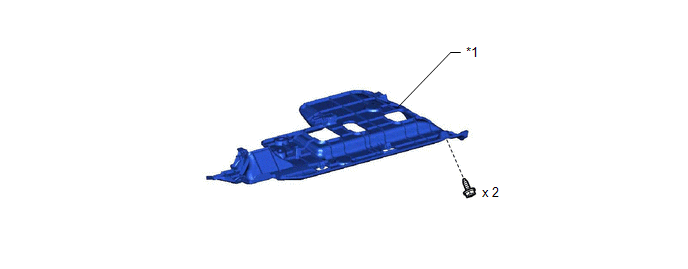

ILLUSTRATION

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

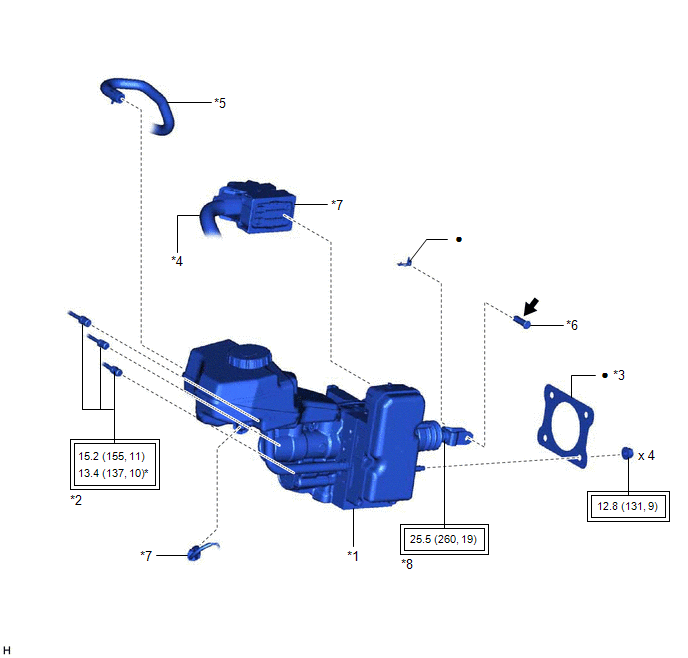

ILLUSTRATION

*1

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

*2

BRAKE LINE

*3

BRAKE MASTER CYLINDER GASKET

*4

ENGINE ROOM MAIN WIRE

*5

NO. 1 BRAKE ACTUATOR HOSE

*6

PUSH ROD PIN

*7

CONNECTOR

*8

LOCK NUT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

Lithium soap base glycol grease

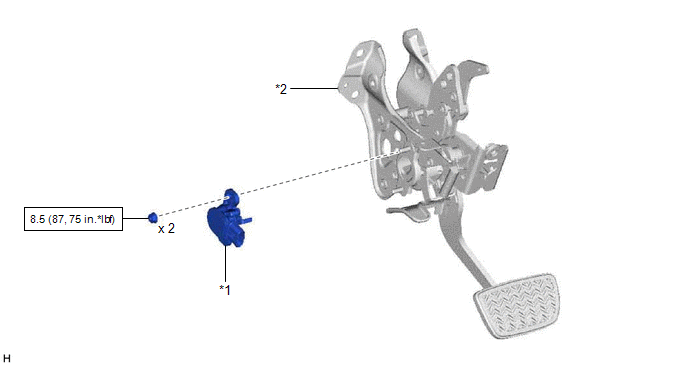

ILLUSTRATION

*1

BRAKE PEDAL STROKE SENSOR ASSEMBLY

*2

BRAKE PEDAL SUPPORT ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

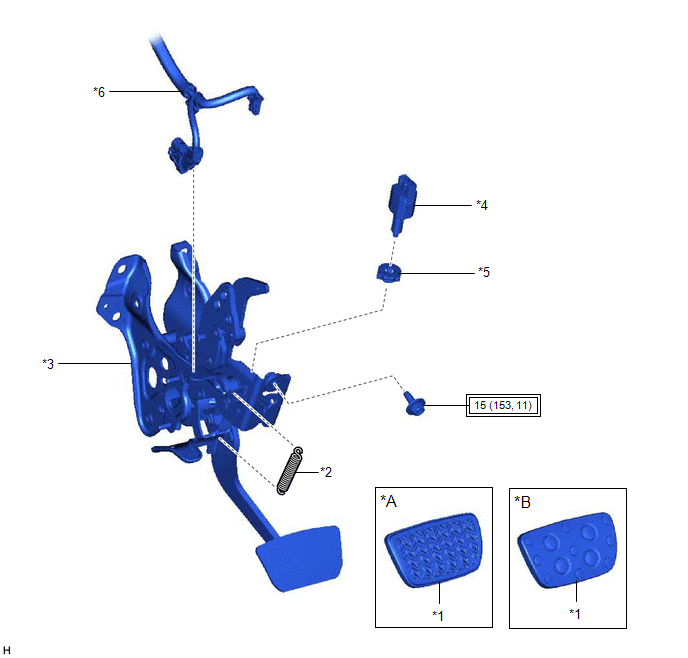

ILLUSTRATION

*A

w/ Rubber Pad

*B

w/ Aluminum Pad

*1

BRAKE PEDAL PAD

*2

BRAKE PEDAL RETURN SPRING

*3

BRAKE PEDAL SUPPORT ASSEMBLY

*4

STOP LIGHT SWITCH ASSEMBLY

*5

STOP LIGHT SWITCH MOUNTING ADJUSTER

*6

WIRE HARNESS

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

    Adjustment

    Installation
