Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Brake Vacuum Hose(for Gasoline Model)

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Brake / Brake System (other) / Brake Vacuum Hose(for Gasoline Model)

Components

COMPONENTS

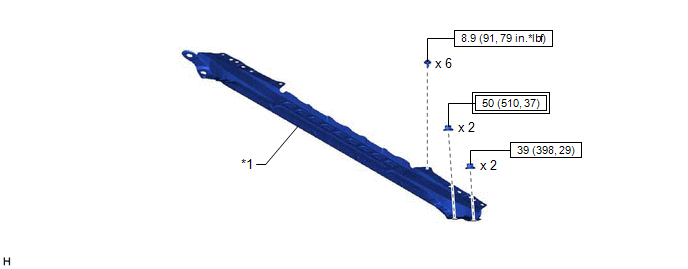

ILLUSTRATION

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

*1

UNION TO CHECK VALVE HOSE

*2

CLIP

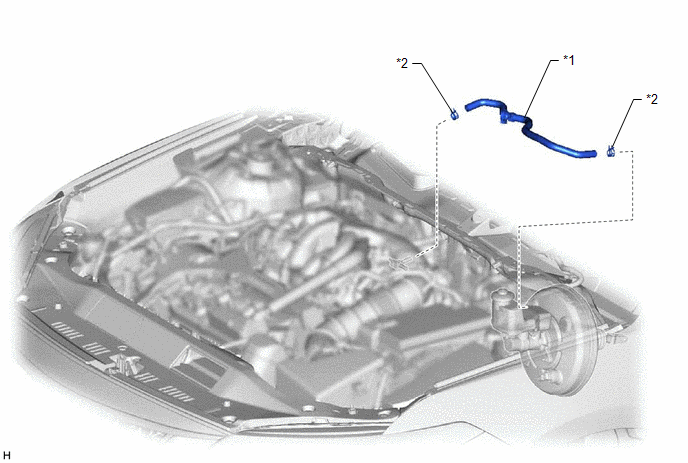

ILLUSTRATION

*1

AIR TUBE

*2

CLIP

*3

AIR DELIVERY WAY

*4

VACUUM TRANSMITTING HOSE ASSEMBLY
    Problem Symptoms Table

    Vacuum Pump(for 2gr-fks)
