Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

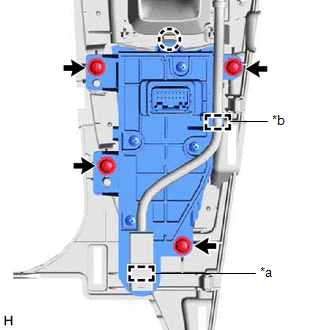

(a) Engage the claw to install the electric parking brake switch assembly with the 4 screws.

*a

Clamp

*b

Guide

(b) Engage the guide and clamp.

2. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

    Inspection

    Removal
