Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

3. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

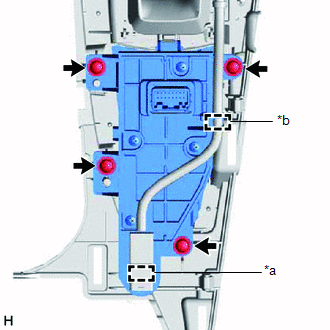

(a) Disengage the clamp and guide.

*a

Clamp

*b

Guide

(b) Remove the 4 screws and electric parking brake switch assembly.

    Installation

    Electric Parking Brake System(for Gasoline Model)
