COMPONENTS

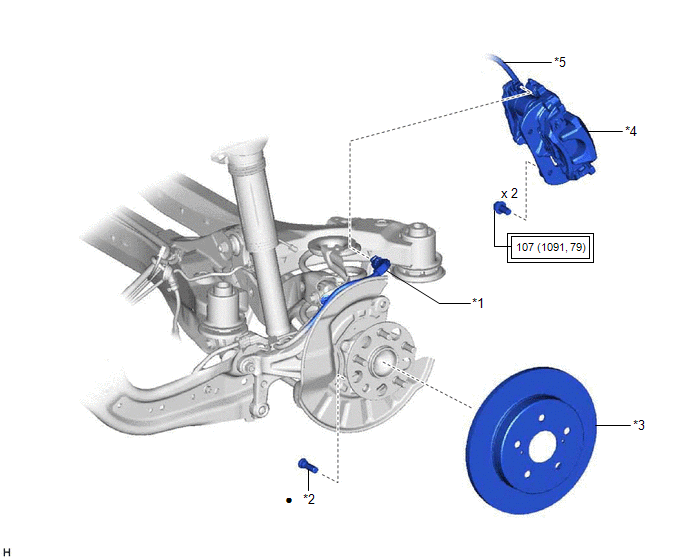

ILLUSTRATION

*1

NO. 2 PARKING BRAKE WIRE ASSEMBLY

*2

REAR AXLE HUB BOLT

*3

REAR DISC

*4

REAR DISC BRAKE CALIPER ASSEMBLY

*5

REAR FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
    Rear Axle Hub Bolt

    Replacement
