Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

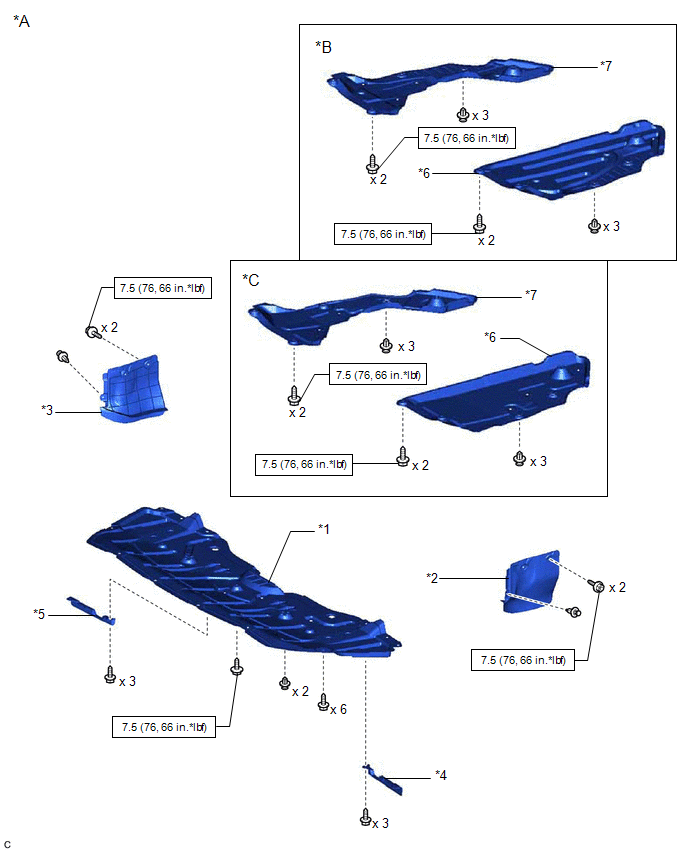

ILLUSTRATION

*A

for Gasoline Model

*B

for Type A

*C

for Type B

-

-

*1

NO. 1 ENGINE UNDER COVER

*2

FRONT FENDER APRON SEAL LH

*3

FRONT FENDER APRON SEAL RH

*4

FRONT WHEEL OPENING EXTENSION PAD LH

*5

FRONT WHEEL OPENING EXTENSION PAD RH

*6

REAR ENGINE UNDER COVER LH

*7

REAR ENGINE UNDER COVER RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

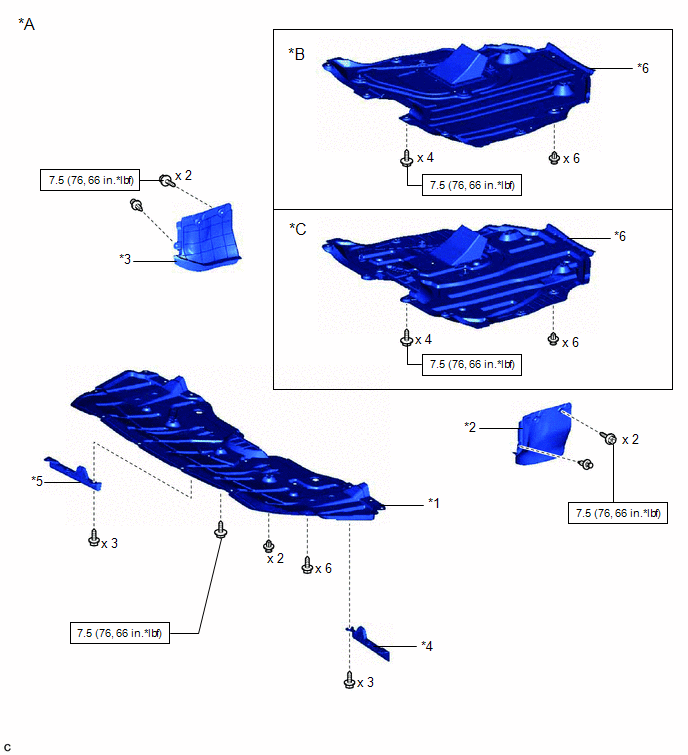

ILLUSTRATION

*A

for HV Model

*B

for Type A

*C

for Type B

-

-

*1

NO. 1 ENGINE UNDER COVER

*2

FRONT FENDER APRON SEAL LH

*3

FRONT FENDER APRON SEAL RH

*4

FRONT WHEEL OPENING EXTENSION PAD LH

*5

FRONT WHEEL OPENING EXTENSION PAD RH

*6

NO. 2 ENGINE UNDER COVER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

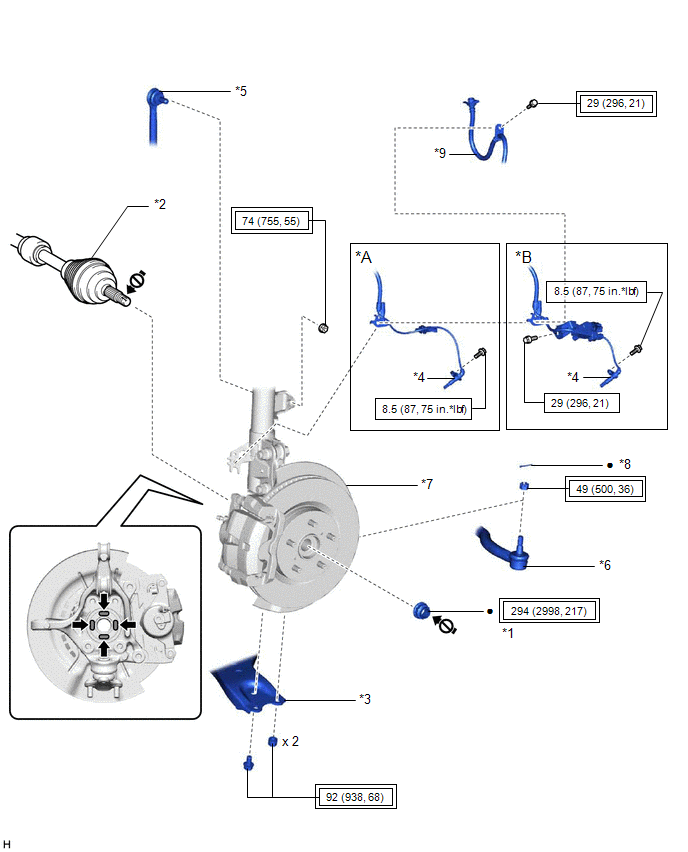

ILLUSTRATION

*A

w/o AVS

*B

w/ AVS

*1

FRONT AXLE SHAFT NUT

*2

FRONT DRIVE SHAFT ASSEMBLY

*3

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*4

FRONT SPEED SENSOR

*5

FRONT STABILIZER LINK ASSEMBLY

*6

TIE ROD ASSEMBLY

*7

FRONT AXLE ASSEMBLY

*8

COTTER PIN

*9

FRONT FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Body Grease W

Do not apply lubricants to the threaded parts

-

-

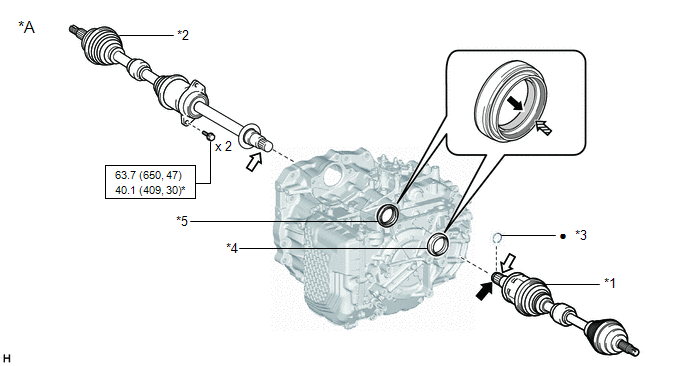

ILLUSTRATION

*A

for Gasoline Model

-

-

*1

FRONT DRIVE SHAFT ASSEMBLY LH

*2

FRONT DRIVE SHAFT ASSEMBLY RH

*3

FRONT DRIVE SHAFT HOLE SNAP RING

*4

FRONT DRIVE SHAFT OIL SEAL LH

*5

FRONT DRIVE SHAFT OIL SEAL RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

Non-reusable part

MP grease

ATF WS

Toyota genuine oil seal side lip grease

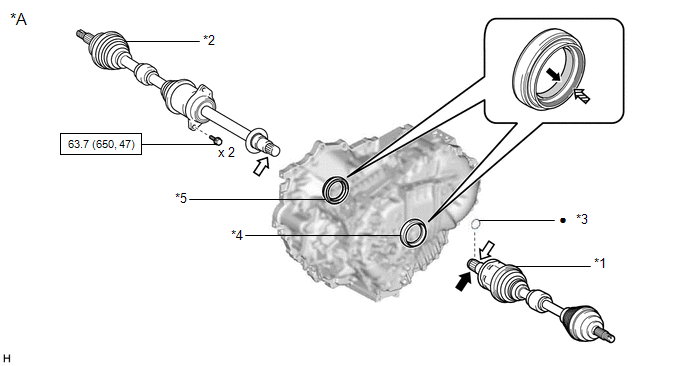

ILLUSTRATION

*A

for HV Model

-

-

*1

FRONT DRIVE SHAFT ASSEMBLY LH

*2

FRONT DRIVE SHAFT ASSEMBLY RH

*3

FRONT DRIVE SHAFT HOLE SNAP RING

*4

FRONT DRIVE SHAFT OIL SEAL LH

*5

FRONT DRIVE SHAFT OIL SEAL RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

ATF WS

Toyota genuine oil seal side lip grease

-

-

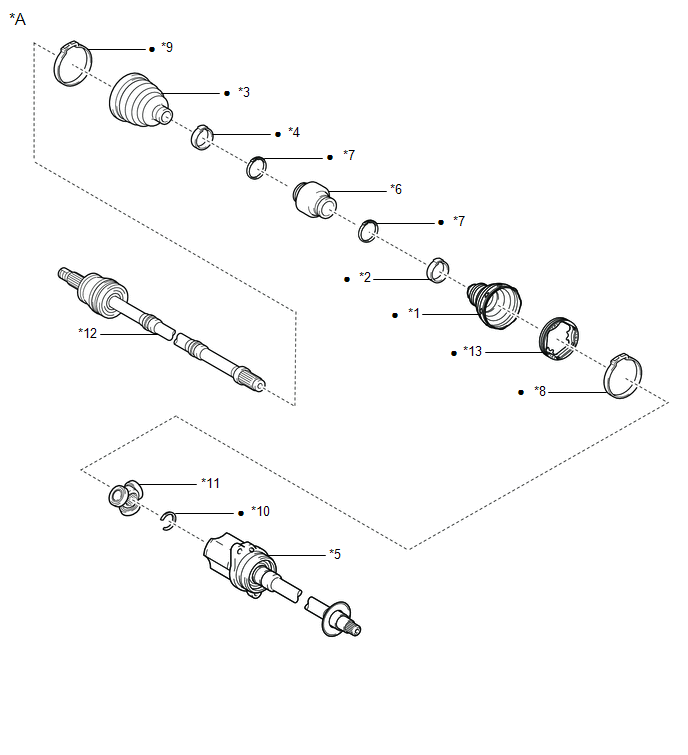

ILLUSTRATION

*A

for LH Side

-

-

*1

FRONT AXLE INBOARD JOINT BOOT

*2

FRONT AXLE INBOARD JOINT BOOT CLAMP

*3

FRONT AXLE OUTBOARD JOINT BOOT

*4

FRONT AXLE OUTBOARD JOINT BOOT CLAMP

*5

FRONT DRIVE INBOARD JOINT ASSEMBLY

*6

FRONT DRIVE SHAFT DAMPER

*7

FRONT DRIVE SHAFT DAMPER CLAMP

*8

FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP

*9

FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP

*10

SHAFT SNAP RING

*11

TRIPOD JOINT

*12

FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY

*13

FRONT AXLE INBOARD JOINT GROMMET

-

-

Non-reusable part

-

-

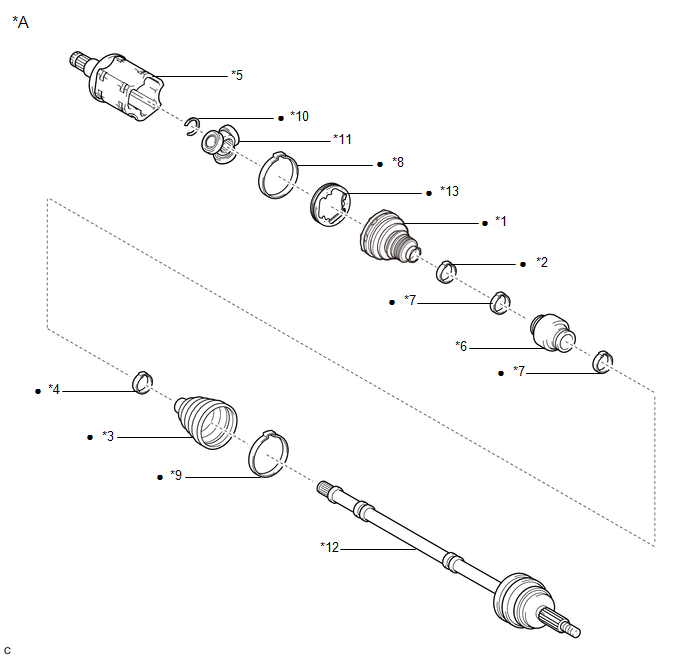

ILLUSTRATION

*A

for RH Side

-

-

*1

FRONT AXLE INBOARD JOINT BOOT

*2

FRONT AXLE INBOARD JOINT BOOT CLAMP

*3

FRONT AXLE OUTBOARD JOINT BOOT

*4

FRONT AXLE OUTBOARD JOINT BOOT CLAMP

*5

FRONT DRIVE INBOARD JOINT ASSEMBLY

*6

FRONT DRIVE SHAFT DAMPER

*7

FRONT DRIVE SHAFT DAMPER CLAMP

*8

FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP

*9

FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP

*10

SHAFT SNAP RING

*11

TRIPOD JOINT

*12

FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY

*13

FRONT AXLE INBOARD JOINT GROMMET

-

-

Non-reusable part

-

-

    Front Drive Shaft Assembly

    Disassembly

    See More:
