Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

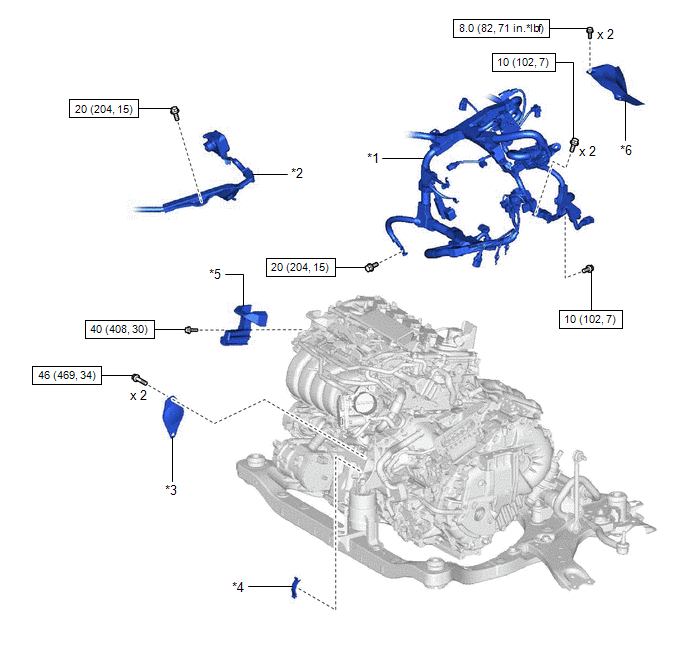

ILLUSTRATION

*1

ENGINE WIRE

*2

HV AIR CONDITIONING WIRE

*3

STARTER HOLE INSULATOR

*4

FLYWHEEL HOUSING SIDE COVER

*5

FUEL DELIVERY GUARD

*6

STEERING GEAR HEAT INSULATOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

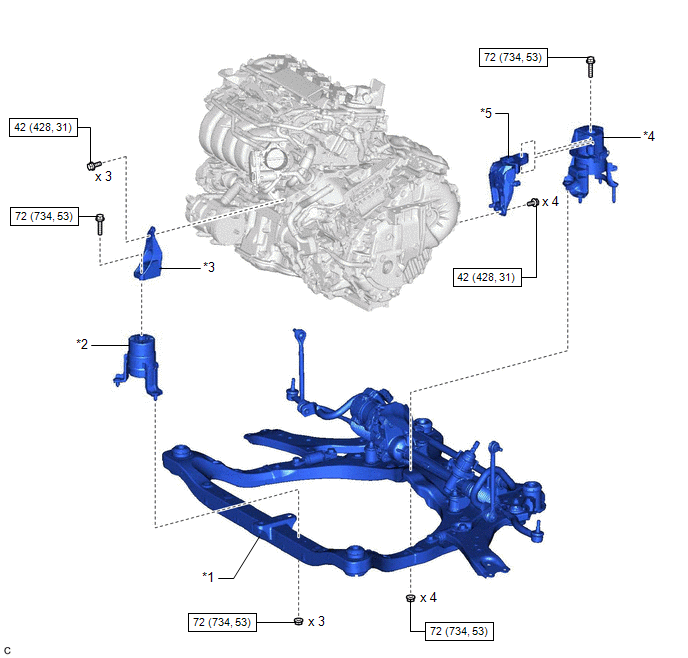

ILLUSTRATION

*1

FRONT FRAME ASSEMBLY

*2

FRONT ENGINE MOUNTING INSULATOR

*3

FRONT ENGINE MOUNTING BRACKET

*4

REAR ENGINE MOUNTING INSULATOR

*5

REAR ENGINE MOUNTING BRACKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

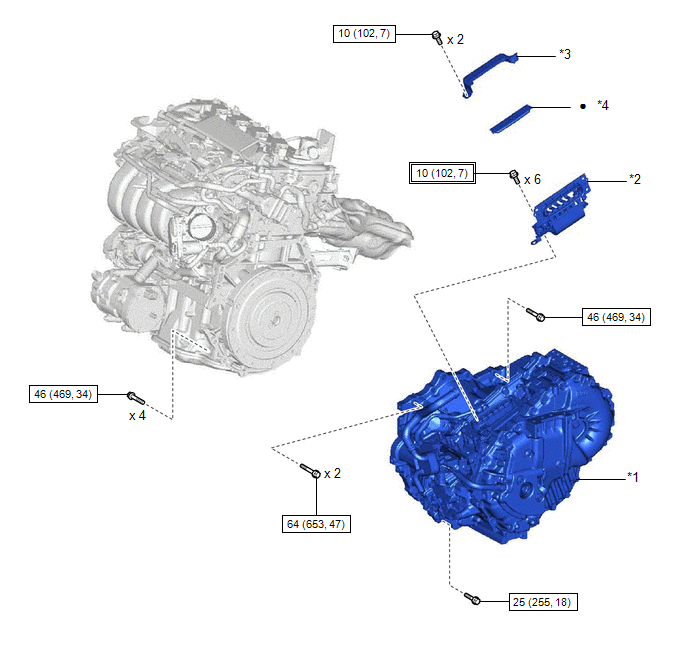

ILLUSTRATION

*1

HYBRID VEHICLE TRANSAXLE ASSEMBLY

*2

MOTOR CABLE

*3

CONNECTOR COVER

*4

TERMINAL CAP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

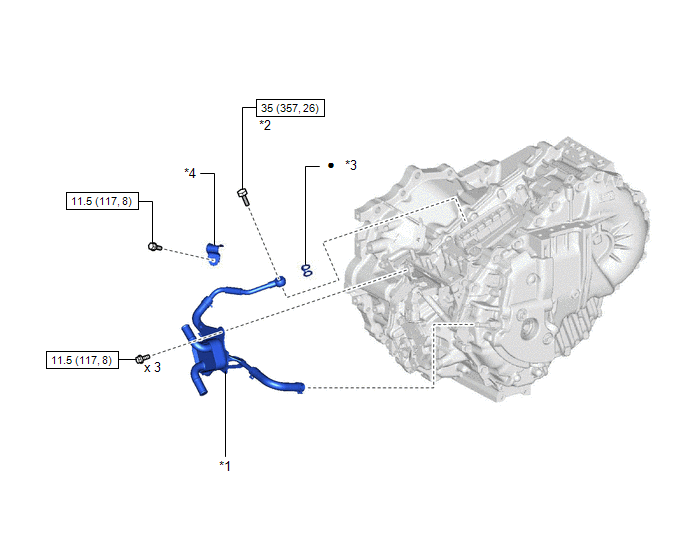

ILLUSTRATION

*1

MOTOR COOLING COOLER

*2

OIL COOLER UNION BOLT

*3

GASKET

*4

NO. 1 OIL COOLER TUBE CLAMP

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

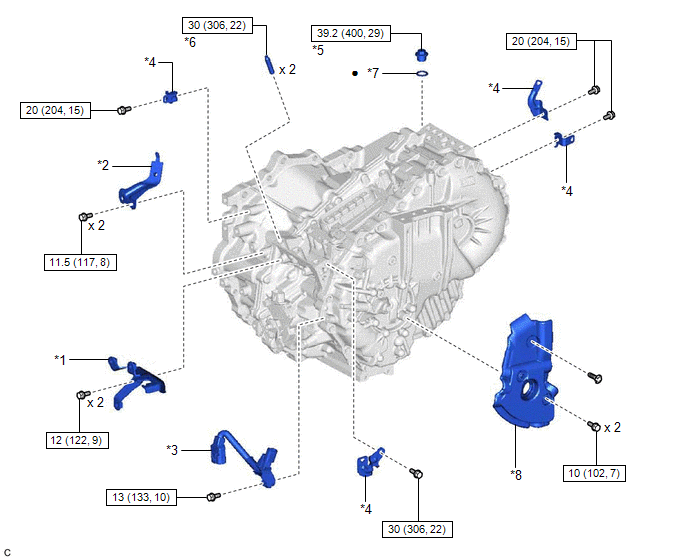

ILLUSTRATION

*1

NO. 1 TRANSMISSION CONTROL CABLE BRACKET

*2

HOSE BRACKET

*3

TRANSMISSION WIRE

*4

WIRE HARNESS CLAMP BRACKET

*5

TRANSAXLE HOUSING PLUG

*6

STUD BOLT

*7

GASKET

*8

TRANSAXLE CASE PROTECTOR

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part
