COMPONENTS

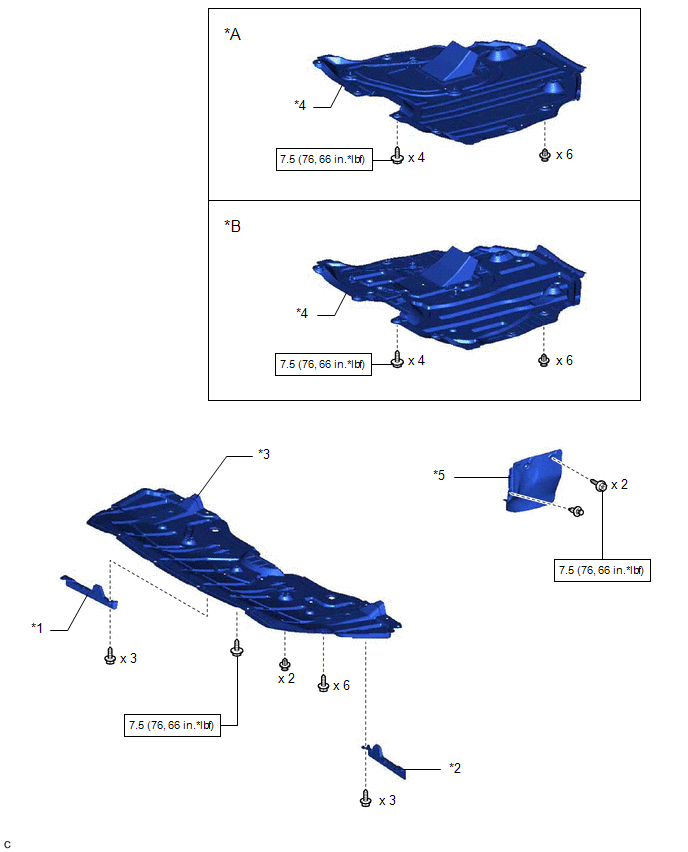

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT WHEEL OPENING EXTENSION PAD RH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

NO. 1 ENGINE UNDER COVER

*4

NO. 2 ENGINE UNDER COVER ASSEMBLY

*5

FRONT FENDER APRON SEAL LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

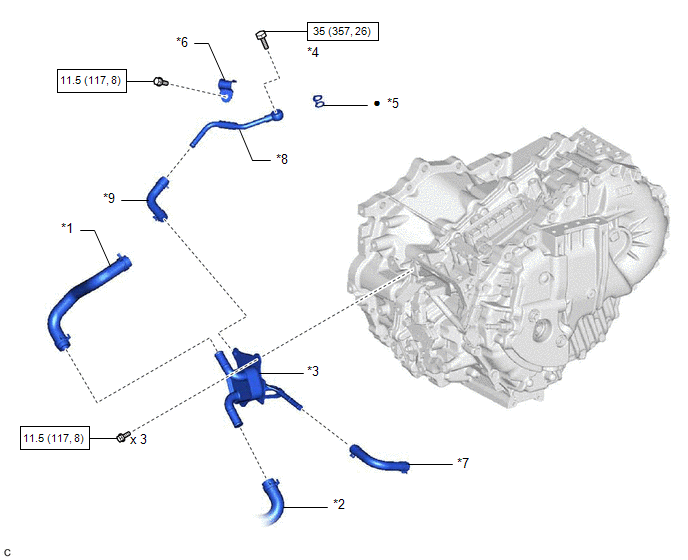

ILLUSTRATION

*1

NO. 1 INVERTER COOLING HOSE

*2

NO. 5 INVERTER COOLING HOSE

*3

MOTOR COOLING COOLER

*4

OIL COOLER UNION BOLT

*5

GASKET

*6

NO. 1 OIL COOLER TUBE CLAMP

*7

NO. 1 MOTOR COOLING HOSE

*8

NO. 2 MOTOR COOLING PIPE

*9

NO. 2 MOTOR COOLING HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
