Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

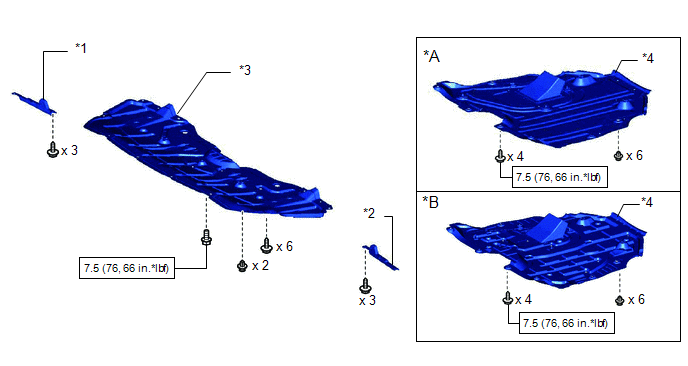

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT WHEEL OPENING EXTENSION PAD RH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

NO. 1 ENGINE UNDER COVER

*4

NO. 2 ENGINE UNDER COVER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

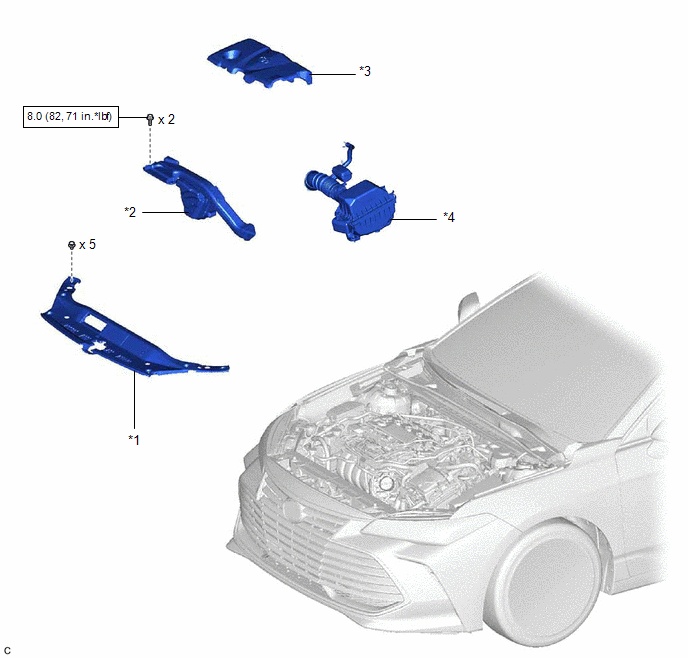

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

INLET AIR CLEANER ASSEMBLY

*3

NO. 1 ENGINE COVER SUB-ASSEMBLY

*4

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

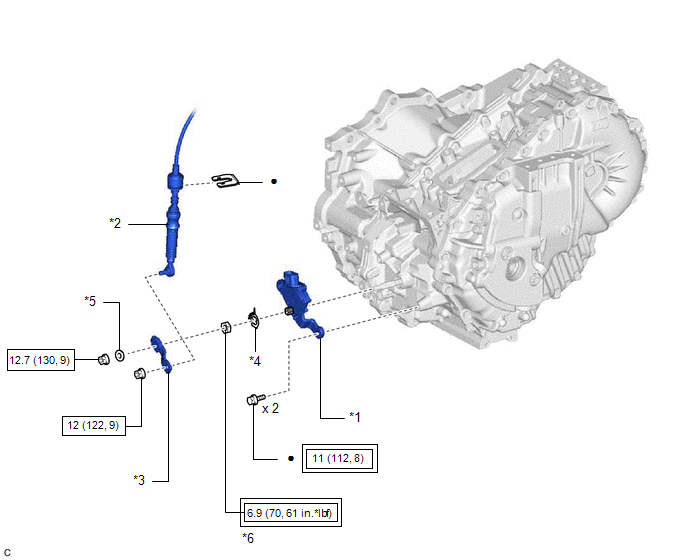

ILLUSTRATION

*1

SHIFT LEVER POSITION SENSOR

*2

TRANSMISSION CONTROL CABLE ASSEMBLY

*3

CONTROL SHAFT LEVER

*4

LOCK PLATE

*5

WASHER

*6

LOCK NUT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

    Adjustment

    Inspection
