Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL BATTERY

(a) Install the battery to the vehicle.

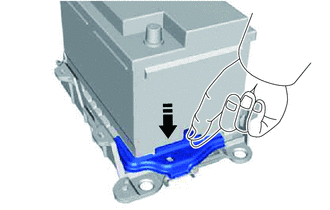

(b) Install the No. 2 battery clamp to the battery clamp sub-assembly with the bolt.

Remove in this Direction

Torque:

18.5 N·m {189 kgf·cm, 14 ft·lbf}

(c) Connect the cable to the positive (+) battery terminal and tighten the nut.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(d) Engage the 2 claws to install the battery terminal cap to the positive (+) battery terminal.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

(a) Connect the cable to the negative (-) battery terminal and tighten the nut.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here
