Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Disassembly

DISASSEMBLY

PROCEDURE

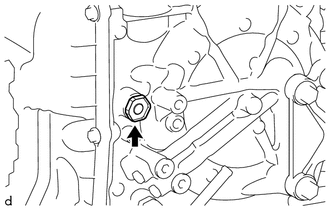

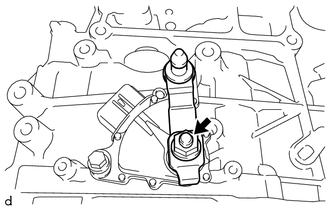

1. REMOVE TRANSMISSION CONTROL SHAFT LEVER

(a) Remove the nut, washer and transmission control shaft lever from the manual valve lever shaft sub-assembly.

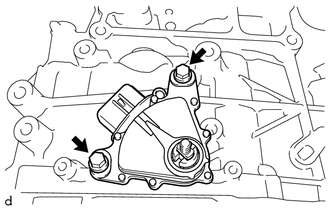

2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Remove the 2 bolts and park/neutral position switch assembly from the automatic transaxle case sub-assembly.

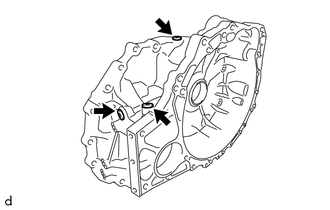

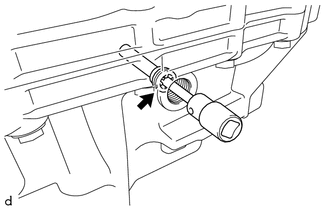

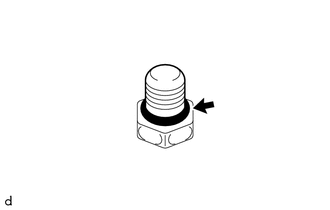

3. REMOVE REFILL PLUG

(a) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

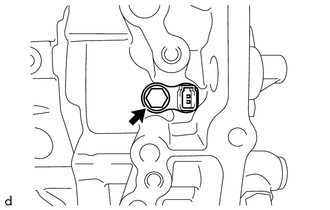

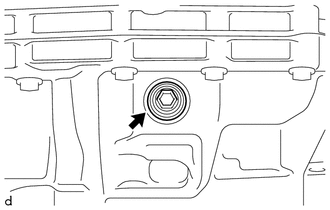

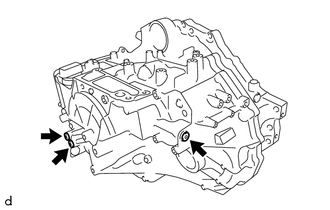

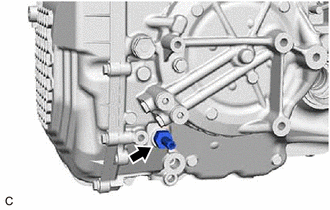

4. REMOVE OVERFLOW PLUG

(a) Using a 10 mm socket hexagon wrench, remove the overflow plug and gasket from the transaxle housing.

5. REMOVE NO. 1 TRANSMISSION OIL FILLER TUBE

(a) Using a 6 mm socket hexagon wrench, remove the No. 1 transmission oil filler tube from the transaxle housing.

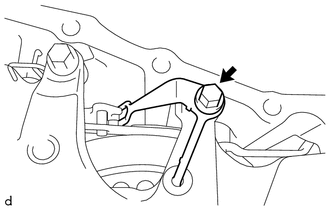

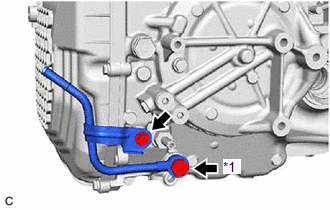

6. REMOVE OIL COOLER UNION SUB-ASSEMBLY

(a) Remove the bolt to separate the oil cooler union sub-assembly bracket portion from the automatic transaxle case sub-assembly.

*1

Oil Cooler Union Bolt

(b) Remove the oil cooler union bolt, 2 gaskets and oil cooler union sub-assembly from the automatic transaxle case sub-assembly.

7. REMOVE NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY

(a) Using a 19 mm union nut wrench, remove the No. 1 oil cooler outlet tube sub-assembly from the automatic transaxle case sub-assembly.

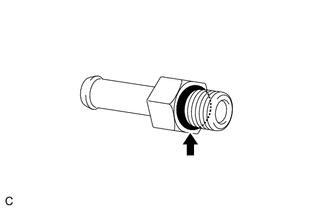

(b) Remove the O-ring from the No. 1 oil cooler outlet tube sub-assembly.

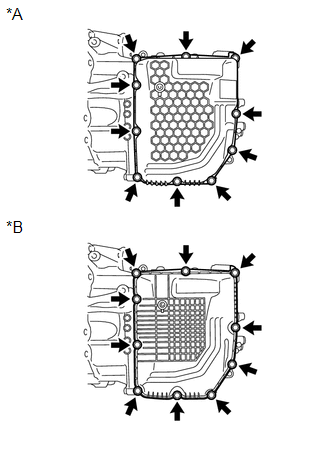

8. REMOVE TRANSMISSION CASE SIDE COVER

(a) Remove the 10 bolts and transmission case side cover from the automatic transaxle case sub-assembly.

*A

for TMC Made

*B

for TMMWV Made

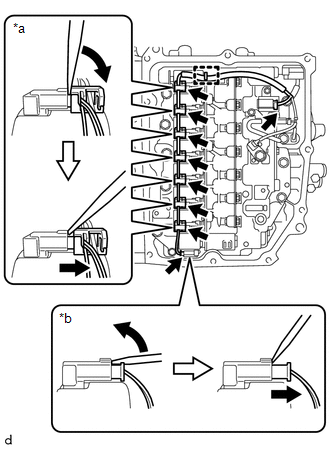

9. REMOVE TRANSMISSION WIRE

(a) Disengage the clamp to disconnect the transmission wire from the solenoid lock plate.

*a

Connector A

*b

Connector B

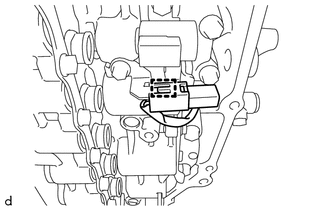

(b) Disconnect the 9 solenoid valve connectors.

HINT:

  • Using a screwdriver, disconnect the solenoid valve connector A using the procedure shown in the illustration.
  • Using a screwdriver, disconnect the solenoid valve connector B using the procedure shown in the illustration.

(c) Remove the bolt and temperature sensor clamp and disconnect the temperature sensor from the transmission valve body assembly.

(d) Disconnect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.

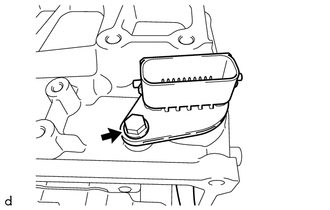

(e) Remove the bolt and transmission wire from the automatic transmission case sub-assembly.

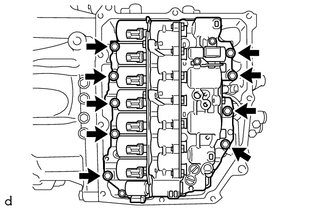

10. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

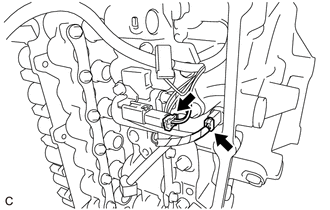

(a) Disengage the clamp to disconnect the transmission revolution sensor (NC) wire connector.

(b) Remove the 9 bolts and transmission valve body assembly from the automatic transaxle case sub-assembly.

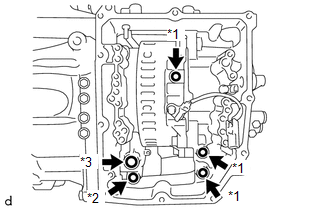

(c) Remove the 2 transaxle case gaskets from the automatic transaxle case sub-assembly.

*1

Transaxle Case Gasket

*2

No. 1 Front Oil Pump Cover Gasket

*3

No. 2 Front Oil Pump Cover Gasket

(d) Remove the transaxle case gasket from the counter drive gear sub-assembly.

(e) Remove the No. 1 front oil pump cover gasket from the front oil pump assembly.

(f) Remove the No. 2 front oil pump cover gasket from the front oil pump assembly.

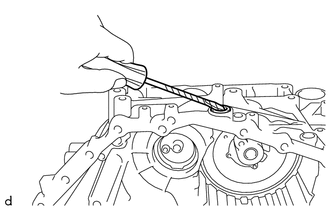

11. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

(a) Remove the bolt and transmission revolution sensor (NT) from the automatic transaxle case sub-assembly.

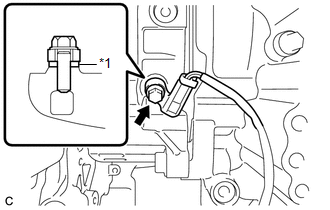

12. REMOVE TRANSMISSION REVOLUTION SENSOR (NC)

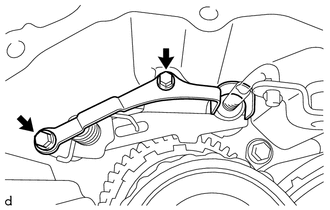

(a) Remove the bolt, spacer and transmission revolution sensor (NC) from the counter drive gear sub-assembly.

*1

Spacer

13. INSPECT INPUT SHAFT END PLAY

Click here

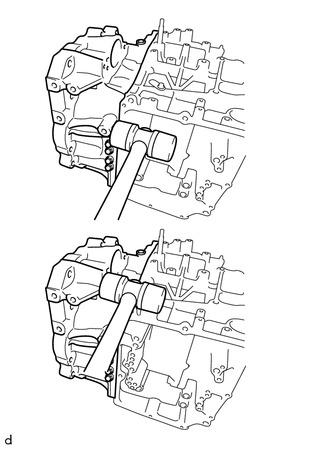

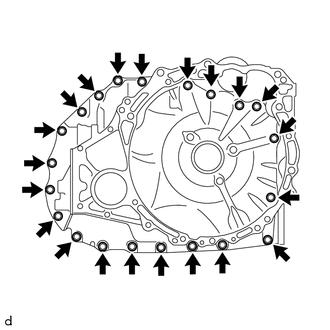

14. REMOVE TRANSAXLE HOUSING

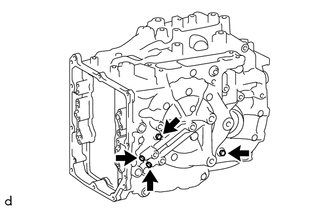

(a) Remove the 21 bolts.

(b) Using a plastic hammer, tap on the circumference of the transaxle housing to remove it from the automatic transaxle case sub-assembly.

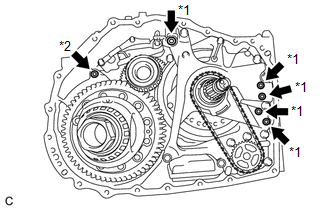

(c) Remove the 5 transaxle case gaskets from the front oil pump assembly.

*1

Transaxle Case Gasket

*2

O-ring

(d) Remove the O-ring from the automatic transaxle case sub-assembly.

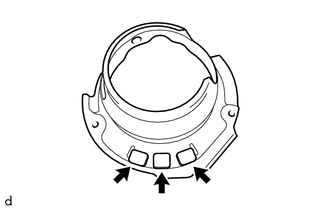

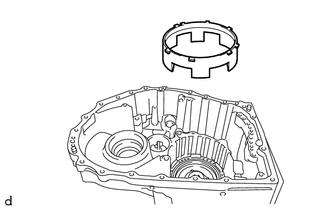

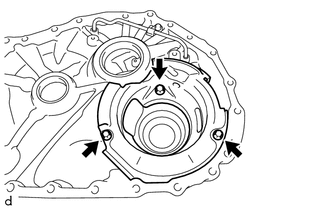

15. REMOVE TRANSAXLE HOUSING OIL SEPARATOR

(a) Remove the 3 bolts and transaxle housing oil separator from the transaxle housing.

16. REMOVE TRANSMISSION OIL CLEANER MAGNET

(a) Remove the 3 transmission oil cleaner magnets from the transaxle housing oil separator.

17. INSPECT TRANSMISSION OIL CLEANER MAGNET

Click here

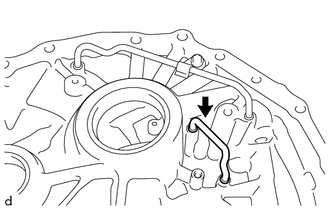

18. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE

(a) Remove the differential gear lube apply tube from the transaxle housing.

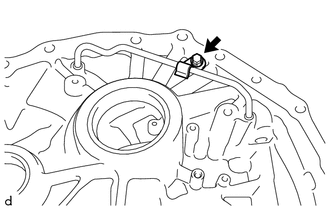

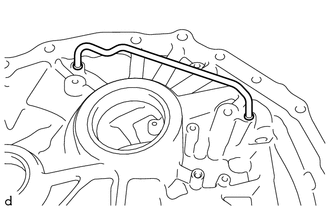

19. REMOVE TRANSMISSION LUBE APPLY TUBE

(a) Remove the bolt and clamp from the transaxle housing.

(b) Remove the transmission lube apply tube from the transaxle housing.

20. REMOVE DIFFERENTIAL CASE ASSEMBLY

(a) Remove the differential case assembly from the automatic transaxle case sub-assembly.

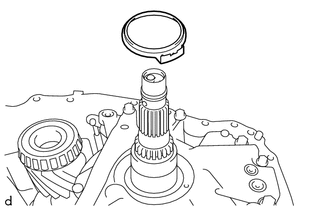

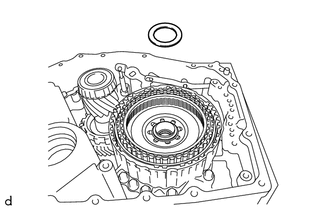

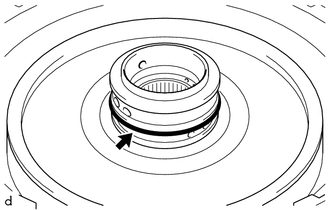

21. REMOVE CLUTCH DRUM OIL SEAL RING

(a) Remove the clutch drum oil seal ring from the front oil pump assembly.

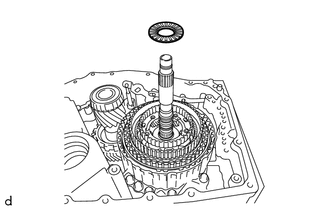

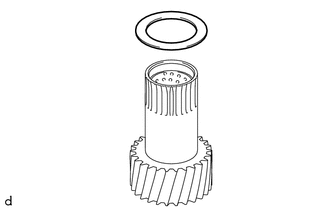

22. REMOVE OIL PUMP SPROCKET FRONT THRUST WASHER

(a) Remove the oil pump sprocket front thrust washer from the transmission oil pump drive sprocket.

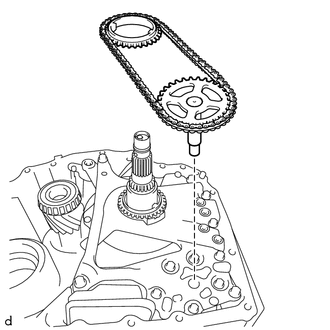

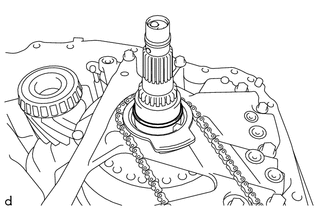

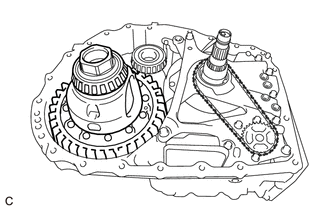

23. REMOVE TRANSMISSION DRIVE CHAIN

(a) Remove the transmission drive chain together with the transmission oil pump drive sprocket and oil pump drive shaft sub-assembly from the front oil pump assembly.

NOTICE:

To avoid damaging the bush of the front oil pump assembly, remove the transmission drive chain, transmission oil pump drive sprocket and oil pump drive shaft sub-assembly horizontally relative to the front oil pump assembly.

24. REMOVE OIL PUMP SPROCKET REAR THRUST WASHER

(a) Remove the oil pump sprocket rear thrust washer from the front oil pump assembly.

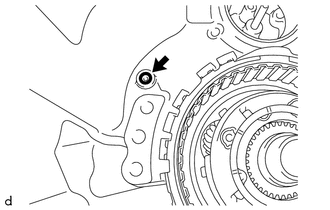

25. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY

(a) Remove the bolt and manual detent spring sub-assembly from the front oil pump assembly.

26. REMOVE FRONT OIL PUMP ASSEMBLY

NOTICE:

To avoid damaging the front oil pump assembly and transmission valve body assembly, when removing the front oil pump assembly, first remove the transmission valve body assembly.

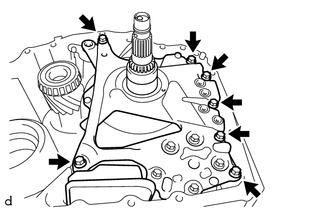

(a) Remove the 7 bolts and front oil pump assembly from the automatic transaxle case sub-assembly.

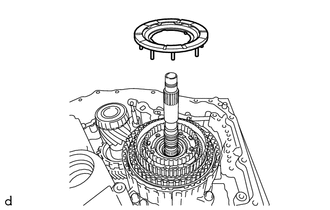

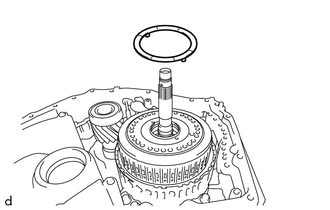

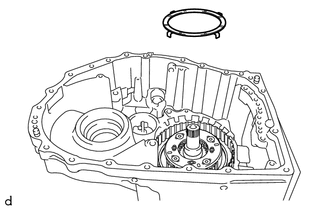

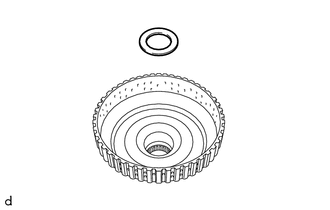

27. REMOVE PLANETARY CARRIER THRUST WASHER

(a) Remove the planetary carrier thrust washer from the C-3 and C-4 clutch assembly.

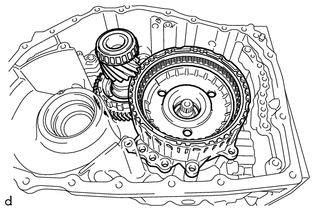

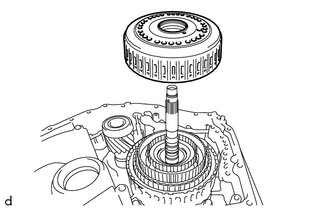

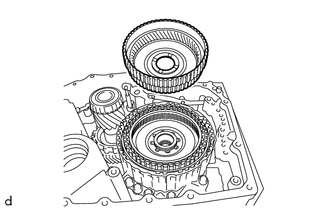

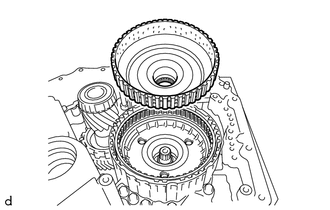

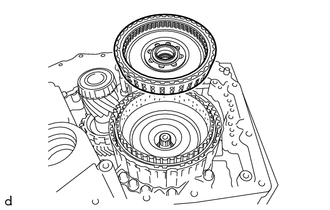

28. REMOVE C-3 AND C-4 CLUTCH ASSEMBLY

(a) Remove the C-3 and C-4 clutch assembly from the front planetary gear assembly.

29. INSPECT CLEARANCE OF C-3 CLUTCH

Click here

30. INSPECT CLEARANCE OF C-4 CLUTCH

Click here

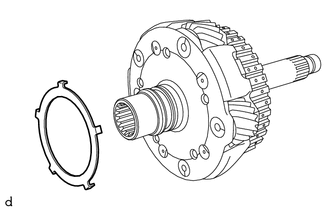

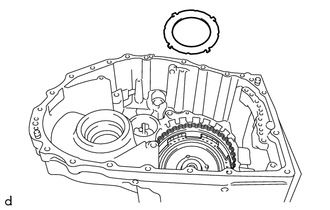

31. REMOVE NO. 2 PLANETARY CARRIER THRUST WASHER

(a) Remove the No. 2 planetary carrier thrust washer from the front planetary gear assembly.

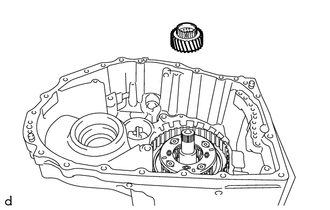

32. REMOVE PLANETARY SUN GEAR

(a) Remove the planetary sun gear from the front planetary gear assembly.

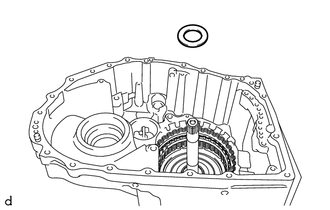

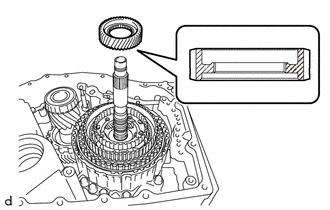

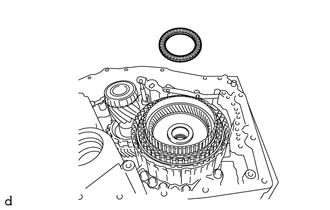

33. REMOVE NO. 9 THRUST BEARING RACE

(a) Remove the No. 9 thrust bearing race from the front planetary gear assembly.

34. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the front planetary gear assembly.

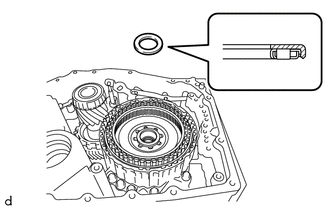

35. REMOVE NO. 8 THRUST BEARING RACE

(a) Remove the No. 8 thrust bearing race from the front planetary gear assembly.

36. REMOVE FRONT PLANETARY GEAR ASSEMBLY

(a) Remove the front planetary gear assembly from the front planetary ring gear.

37. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the front planetary ring gear.

38. REMOVE NO. 7 THRUST BEARING RACE

(a) Remove the No. 7 thrust bearing race from the front planetary gear assembly.

39. INSPECT FRONT PLANETARY GEAR ASSEMBLY

Click here

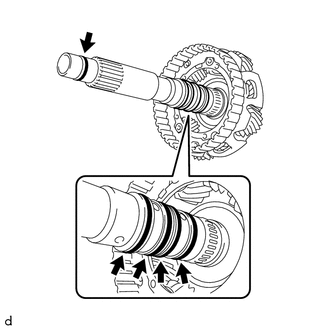

40. REMOVE INPUT SHAFT OIL SEAL RING

(a) Remove the 5 input shaft oil seal rings from the front planetary gear assembly.

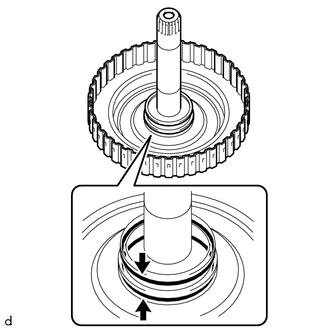

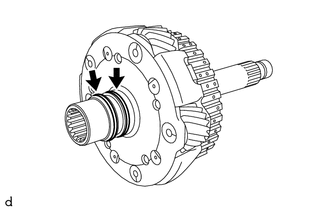

41. REMOVE REAR INPUT SHAFT OIL SEAL RING

(a) Remove the 2 rear input shaft oil seal rings from the front planetary gear assembly.

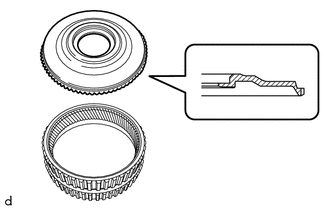

42. REMOVE FRONT PLANETARY RING GEAR

(a) Remove the front planetary ring gear with front planetary ring gear flange from the C-1 clutch assembly.

(b) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the front planetary ring gear.

NOTICE:

Be careful not to damage the front planetary ring gear and front planetary ring gear flange.

(c) Remove the front planetary ring gear flange from the front planetary ring gear.

43. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the C-1 clutch assembly.

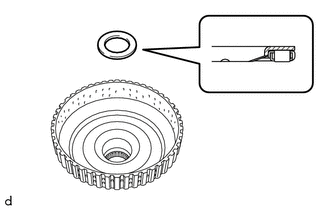

44. REMOVE NO. 6 THRUST BEARING RACE

(a) Remove the No. 6 thrust bearing race from the C-1 clutch assembly.

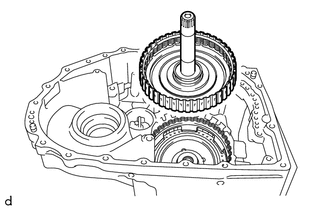

45. REMOVE C-1 CLUTCH ASSEMBLY

(a) Remove the C-1 clutch assembly from the sun gear input hub sub-assembly.

46. INSPECT CLEARANCE OF C-1 CLUTCH

Click here

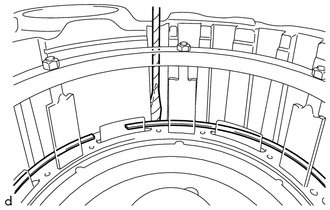

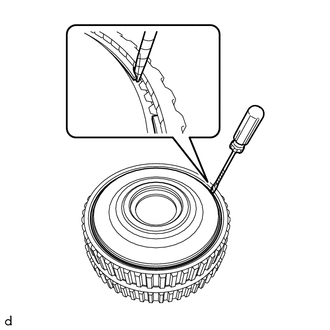

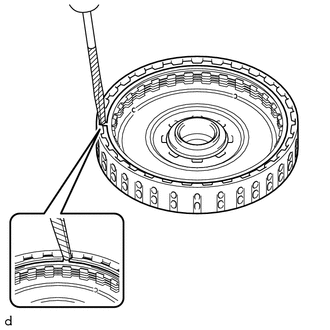

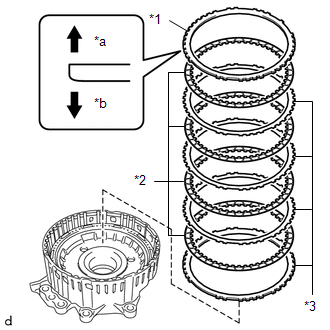

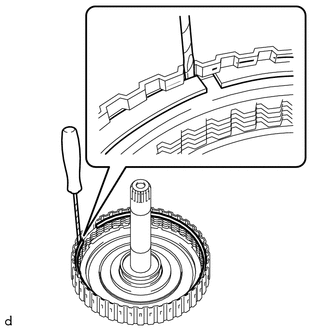

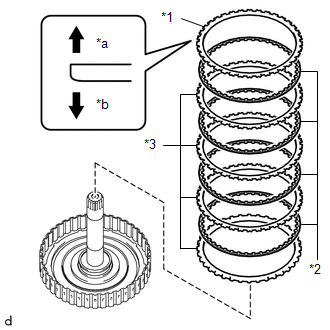

47. REMOVE FRONT CLUTCH CLUTCH DISC

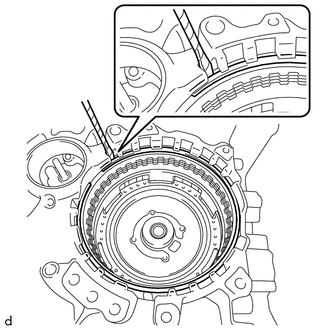

(a) Using a screwdriver with its tip wrapped in protective tape, remove the snap ring from the clutch drum sub-assembly.

NOTICE:

Be careful not to damage the clutch drum sub-assembly.

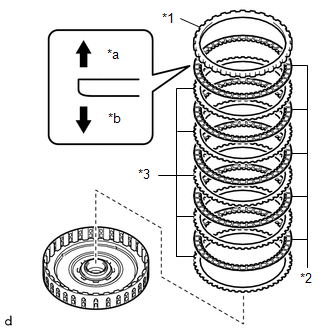

(b) Remove the forward clutch flange, 5 front clutch clutch discs and 5 forward multiple disc clutch clutch plates from the clutch drum sub-assembly.

*1

Forward Clutch Flange

*2

Front Clutch Clutch Disc

*3

Forward Multiple Disc Clutch Clutch Plate

*a

Snap Ring Side

*b

Front Clutch Clutch Disc Side

48. INSPECT FRONT CLUTCH CLUTCH DISC

Click here

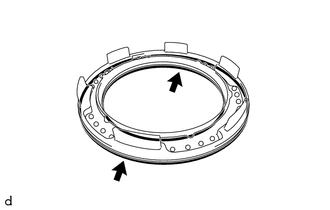

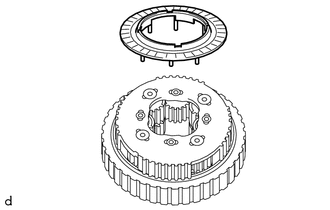

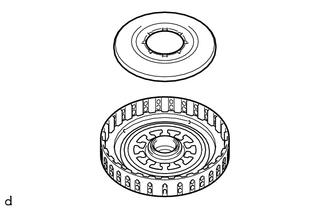

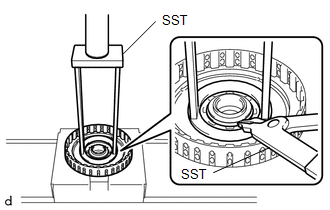

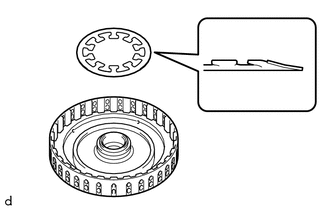

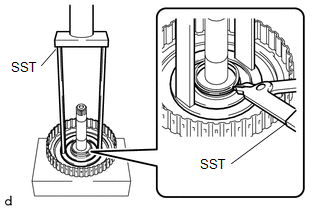

49. REMOVE NO. 1 CLUTCH BALANCER

(a) Place SST on the No. 1 clutch balancer and compress the rear clutch piston return compression spring with a press.

SST: 09387-00020

NOTICE:

Do not compress the rear clutch piston return compression spring excessively.

(b) Using SST, remove the snap ring from the clutch drum sub-assembly.

SST: 09350-30020

09350-07070

(c) Remove the No. 1 clutch balancer from the forward clutch piston.

50. REMOVE REAR CLUTCH PISTON RETURN COMPRESSION SPRING

(a) Remove the rear clutch piston return compression spring from the forward clutch piston.

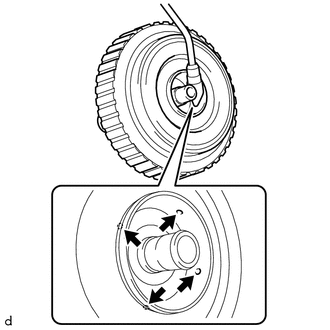

51. REMOVE FORWARD CLUTCH PISTON

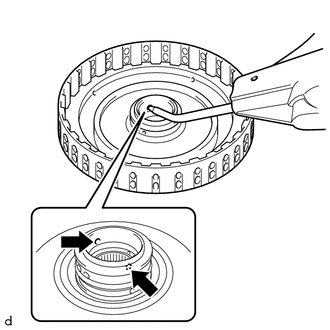

(a) Apply compressed air (392 kPa (4.0 kgf/cm2, 57 psi)) to the oil hole of the clutch drum sub-assembly to remove the forward clutch piston from the clutch drum sub-assembly.

NOTICE:

  • Applying compressed air may cause the forward clutch piston to jump out. When removing the forward clutch piston, hold it by hand using a piece of cloth.
  • Be careful as ATF may spray when applying compressed air.

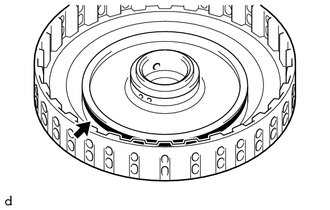

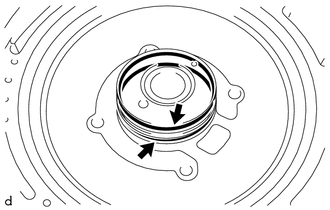

(b) Remove the O-ring from the clutch drum sub-assembly.

(c) Remove the D-ring from the clutch drum sub-assembly.

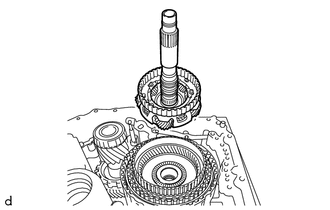

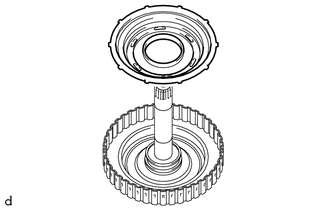

52. REMOVE SUN GEAR INPUT HUB SUB-ASSEMBLY

(a) Remove the sun gear input hub sub-assembly from the counter drive gear sub-assembly.

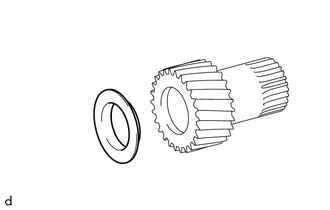

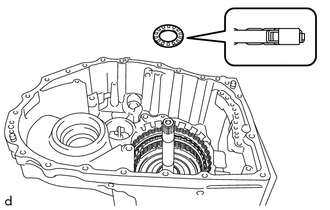

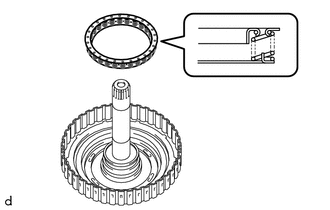

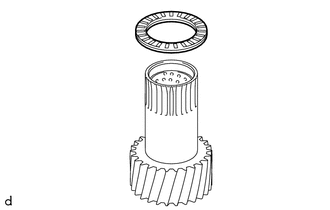

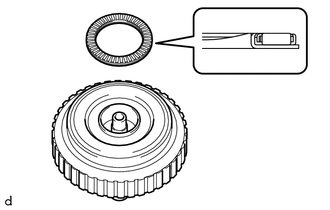

53. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the sun gear input hub sub-assembly.

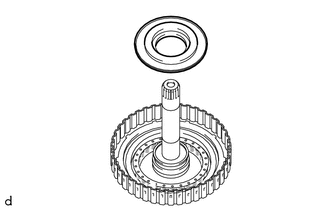

54. REMOVE NO. 5 THRUST BEARING RACE

(a) Remove the No. 5 thrust bearing race from the sun gear input hub sub-assembly.

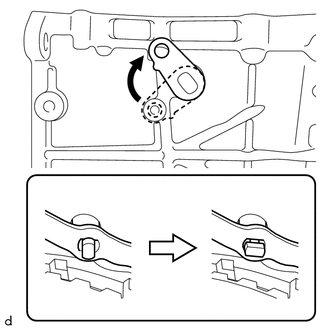

55. REMOVE MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY

(a) Remove the bolt.

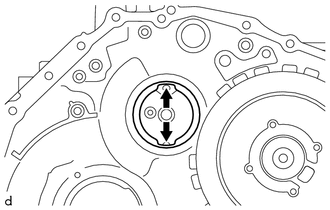

(b) Align the cutouts of the manual valve lever sub-assembly and manual valve lever shaft sub-assembly, and remove the manual valve lever shaft sub-assembly.

HINT:

Rotating the manual valve lever shaft sub-assembly to the area shown in the illustration will align the cutouts.

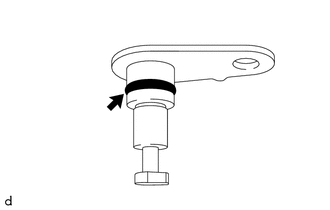

(c) Remove the O-ring from the manual valve lever shaft sub-assembly.

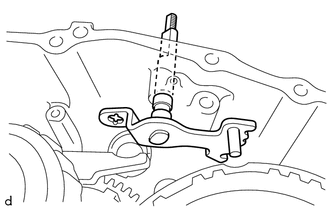

56. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY

(a) Remove the manual valve lever sub-assembly from the automatic transaxle case sub-assembly.

57. REMOVE PAWL STOPPER PLATE

(a) Remove the 2 bolts and pawl stopper plate from the automatic transaxle case sub-assembly.

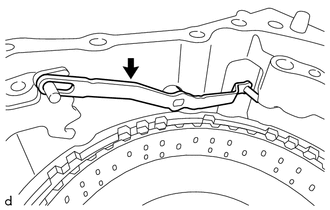

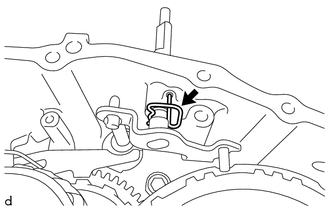

58. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING

(a) Remove the manual valve lever shaft retainer spring from the automatic transaxle case sub-assembly.

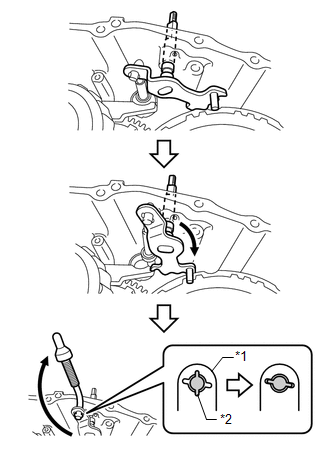

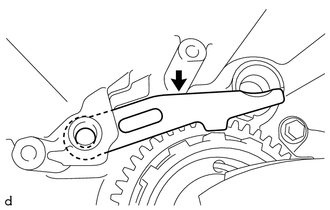

59. REMOVE PARKING LOCK ROD SUB-ASSEMBLY

(a) Move the manual valve lever shaft sub-assembly and parking lock rod sub-assembly as shown in the illustration, and remove the parking lock rod sub-assembly.

HINT:

Align the cutouts of the parking lock rod sub-assembly and manual valve lever shaft sub-assembly and remove the parking lock rod sub-assembly.

*1

Manual Valve Lever Shaft Sub-assembly

*2

Parking Lock Rod Sub-assembly

60. REMOVE MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY

(a) Remove the manual valve lever shaft sub-assembly from the automatic transaxle case sub-assembly.

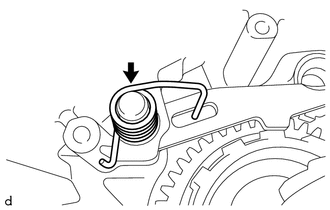

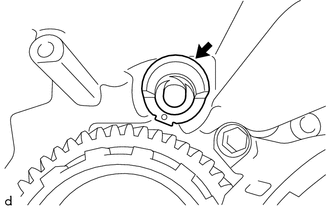

61. REMOVE PARKING LOCK PAWL TORSION SPRING

(a) Remove the parking lock pawl torsion spring from the automatic transaxle case sub-assembly.

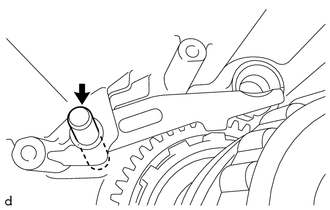

62. REMOVE PARKING LOCK PAWL SHAFT

(a) Remove the parking lock pawl shaft from the automatic transaxle case sub-assembly.

63. REMOVE PARKING LOCK PAWL

(a) Remove the parking lock pawl from the automatic transaxle case sub-assembly.

64. REMOVE PARKING LOCK SLEEVE

(a) Remove the parking lock sleeve from the automatic transaxle case sub-assembly.

65. INSPECT CLEARANCE OF B-1 BRAKE

Click here

66. REMOVE COUNTER DRIVE GEAR SUB-ASSEMBLY

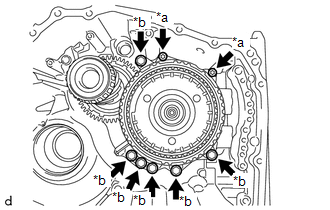

(a) Using a T50 "TORX" socket wrench, remove the 2 bolts (A) from the counter drive gear sub-assembly.

*a

Bolt A

*b

Bolt B

(b) Remove the 6 bolts (B) from the counter drive gear sub-assembly.

(c) Remove the counter drive gear sub-assembly together with the pinion and counter driven gear sub-assembly from the automatic transaxle case sub-assembly.

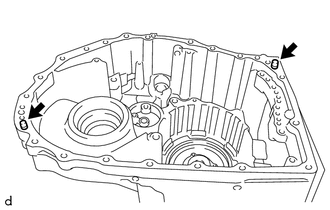

(d) Remove the O-ring from the automatic transaxle case sub-assembly.

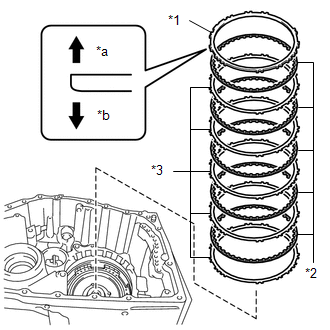

67. REMOVE NO. 1 BRAKE DISC

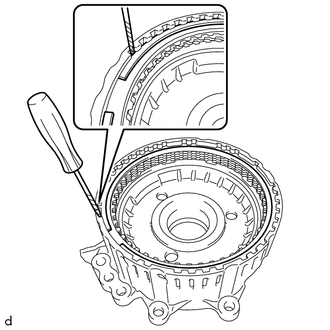

(a) Using a screwdriver with its tip wrapped in protective tape, remove the snap ring from the counter drive gear sub-assembly.

NOTICE:

Be careful not to damage the counter drive gear sub-assembly.

(b) Remove the No. 1 brake flange, 4 No. 1 brake discs and 4 No. 1 brake plates from the counter drive gear sub-assembly.

*1

No. 1 Brake Flange

*2

No. 1 Brake Disc

*3

No. 1 Brake Plate

*a

Snap Ring Side

*b

No. 1 Brake Disc Side

68. INSPECT NO. 1 BRAKE DISC

Click here

69. REMOVE NO. 3 PLANETARY CARRIER THRUST WASHER

(a) Remove the No. 3 planetary carrier thrust washer from the rear planetary gear assembly.

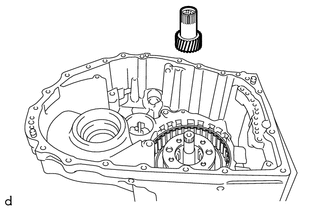

70. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY

(a) Remove the planetary sun gear sub-assembly from the rear planetary gear assembly.

71. INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY

Click here

72. REMOVE REAR PLANETARY SUN GEAR SUB-ASSEMBLY

(a) Remove the rear planetary sun gear sub-assembly from the C-2 clutch assembly.

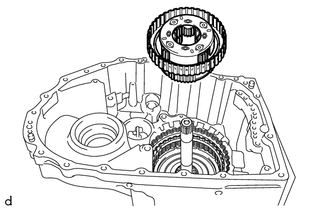

73. REMOVE REAR PLANETARY GEAR ASSEMBLY

(a) Remove the rear planetary gear assembly from the C-2 clutch assembly.

74. REMOVE NO. 4 PLANETARY CARRIER THRUST WASHER

(a) Remove the No. 4 planetary carrier thrust washer from the rear planetary gear assembly.

75. INSPECT REAR PLANETARY GEAR ASSEMBLY

Click here

76. REMOVE NO. 4 THRUST BEARING RACE

(a) Remove the No. 4 thrust bearing race from the rear planetary sun gear sub-assembly.

77. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the rear planetary sun gear sub-assembly.

78. REMOVE THRUST BEARING RACE

(a) Remove the thrust bearing race from the rear planetary sun gear sub-assembly.

79. REMOVE NO. 3 THRUST BEARING RACE

(a) Remove the No. 3 thrust bearing race from the rear planetary sun gear sub-assembly.

80. INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY

Click here

81. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the C-2 clutch assembly.

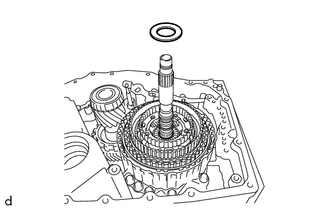

82. REMOVE NO. 2 THRUST BEARING RACE

(a) Remove the No. 2 thrust bearing race from the C-2 clutch assembly.

83. INSPECT CLEARANCE OF C-2 CLUTCH

Click here

84. REMOVE C-2 CLUTCH ASSEMBLY

(a) Remove the C-2 clutch assembly from the automatic transaxle case sub-assembly.

85. REMOVE THRUST NEEDLE ROLLER BEARING

(a) Remove the thrust needle roller bearing from the C-2 clutch assembly.

86. REMOVE NO. 1 THRUST BEARING RACE

(a) Remove the No. 1 thrust bearing race from the automatic transaxle case sub-assembly.

87. REMOVE NO. 2 CLUTCH DISC

(a) Using a screwdriver with its tip wrapped in protective tape, remove the snap ring from the intermediate shaft sub-assembly.

NOTICE:

Be careful not to damage the intermediate shaft sub-assembly.

(b) Remove the direct clutch flange, 4 No. 2 clutch discs and 4 No. 2 clutch plates from the intermediate shaft sub-assembly.

*1

Direct Clutch Flange

*2

No. 2 Clutch Disc

*3

No. 2 Clutch Plate

*a

Snap Ring Side

*b

No. 2 Clutch Disc Side

88. INSPECT NO. 2 CLUTCH DISC

Click here

89. REMOVE C-2 CLUTCH BALANCER

(a) Place SST on the C-2 clutch balancer and compress the clutch return spring sub-assembly with a press.

SST: 09387-00020

NOTICE:

Do not compress the clutch return spring sub-assembly excessively.

(b) Using SST, remove the snap ring from the intermediate shaft sub-assembly.

SST: 09350-30020

09350-07070

(c) Remove the C-2 clutch balancer from the intermediate shaft sub-assembly.

90. REMOVE CLUTCH RETURN SPRING SUB-ASSEMBLY

(a) Remove the clutch return spring sub-assembly from the intermediate shaft sub-assembly.

91. INSPECT CLUTCH RETURN SPRING SUB-ASSEMBLY

Click here

92. REMOVE C-2 CLUTCH PISTON

(a) Apply compressed air (392 kPa (4.0 kgf/cm2, 57 psi)) to the oil hole of the intermediate shaft sub-assembly.

NOTICE:

  • Applying compressed air may cause the C-2 clutch piston to jump out. When removing the C-2 clutch piston, hold it by hand using a piece of cloth.
  • Be careful as ATF may spray when applying compressed air.

(b) Remove the C-2 clutch piston from the intermediate shaft sub-assembly.

(c) Remove the 2 O-rings from the intermediate shaft sub-assembly.

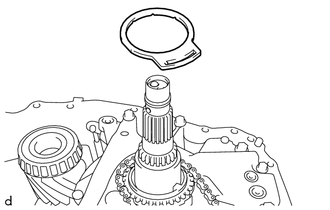

93. REMOVE DIRECT CLUTCH DRUM OIL SEAL RING

(a) Remove the 2 direct clutch drum oil seal rings from the automatic transaxle case sub-assembly.

94. INSPECT CLEARANCE OF B-2 BRAKE

Click here

95. REMOVE 2ND BRAKE BRAKE DISC

(a) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

(b) Remove the 2nd brake brake flange, 5 2nd brake brake discs and 5 2nd brake brake plates from the automatic transaxle case sub-assembly.

*1

2nd Brake Brake Flange

*2

2nd Brake Brake Disc

*3

2nd Brake Brake Plate

*a

Snap Ring Side

*b

2nd Brake Brake Disc Side

96. INSPECT 2ND BRAKE BRAKE DISC

Click here

97. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON

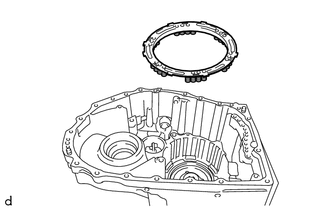

(a) Remove the No. 2 1st and reverse brake piston from the automatic transaxle case sub-assembly.

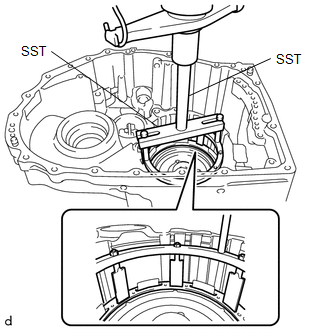

98. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

(a) Place SST on the 1st and reverse brake return spring sub-assembly and compress it with a press.

SST: 09380-60011

09381-06020

09381-06050

09381-06060

09381-06100

09381-06110

SST: 09950-70010

09951-07200

NOTICE:

Do not compress the 1st and reverse brake return spring sub-assembly excessively.

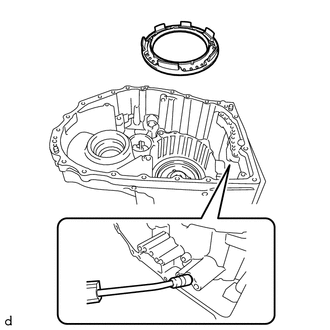

(b) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

(c) Remove the 1st and reverse brake return spring sub-assembly from the automatic transaxle case sub-assembly.

99. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

Click here

100. REMOVE 1ST AND REVERSE BRAKE PISTON

(a) Apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole to remove the 1st and reverse brake piston from the automatic transaxle case sub-assembly.

(b) Remove the 2 O-rings from the 1st and reverse brake piston.

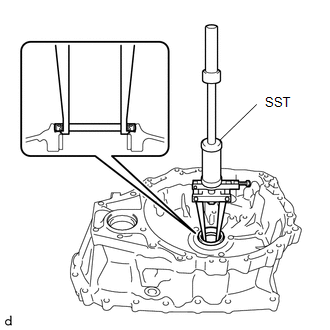

101. REMOVE NEEDLE ROLLER BEARING

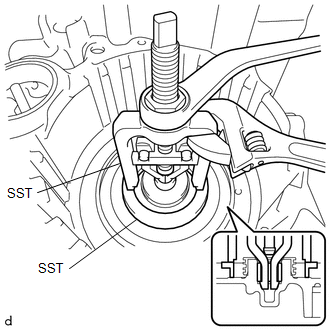

(a) Using SST, remove the needle roller bearing from the automatic transaxle case sub-assembly.

SST: 09303-55010

SST: 09502-12010

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

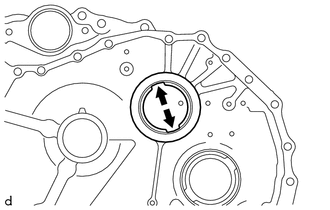

102. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL

(a) Using a screwdriver with its tip wrapped with protective tape, remove the manual valve lever shaft oil seal from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

103. REMOVE TRANSAXLE CASE OIL SEAL

(a) Using SST, remove the transaxle case oil seal from the transaxle housing.

SST: 09308-36010

NOTICE:

Be careful not to damage the transaxle housing.

104. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

(a) Using SST, remove the front drive shaft oil seal RH from the transaxle housing.

SST: 09308-36010

NOTICE:

Be careful not to damage the transaxle housing.

105. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

(a) Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

SST: 09308-36010

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

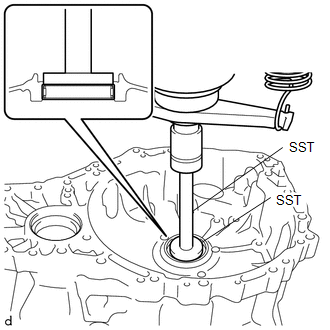

106. REMOVE NEEDLE ROLLER BEARING

(a) Using SST and a press, remove the needle roller bearing from the transaxle housing.

SST: 09950-60011

09951-00550

SST: 09950-70010

09951-07200

NOTICE:

Be careful not to damage the transaxle housing.

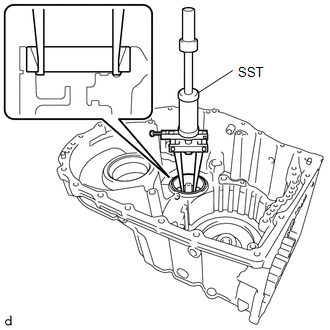

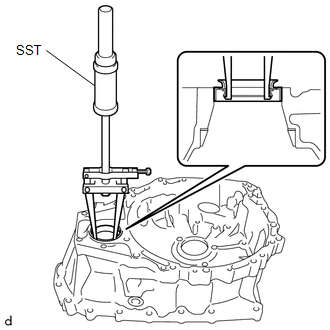

107. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)

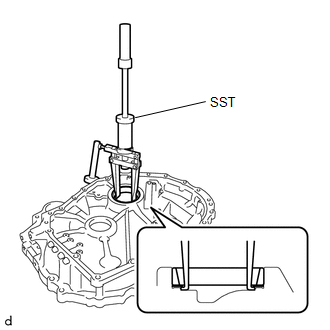

(a) Using SST, remove the counter driven gear rear tapered roller bearing (outer race) from the automatic transaxle case sub-assembly.

SST: 09308-36010

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

HINT:

Align the claw of the SST with the indentation of the automatic transaxle case sub-assembly when removing the parts.

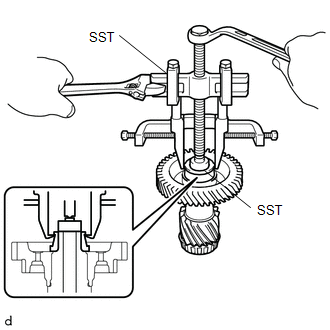

108. REMOVE COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)

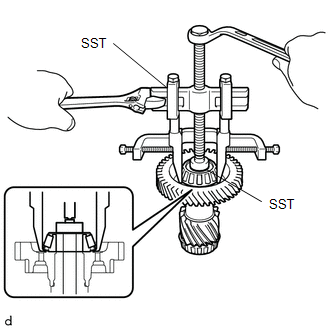

(a) Using SST, remove the counter driven gear rear tapered roller bearing (inner race) from the pinion and counter driven gear sub-assembly.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09955-04011

09957-04010

09958-04011

SST: 09950-60011

09951-00310

NOTICE:

Because SST is attached to the roller portion, there is a possibility that the roller portion could break and SST could come off before the counter driven gear tapered roller bearing (rear side inner race) comes off.

(b) If the roller portion breaks and SST comes off, reattach SST to the inner race in the position shown in the illustration, and continue removing the parts.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09955-04011

09957-04010

09958-04011

SST: 09950-60011

09951-00310

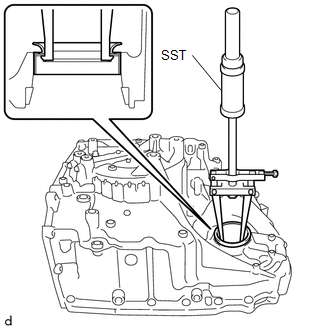

109. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)

(a) Using SST, remove the counter driven gear front tapered roller bearing (outer race) and pinion and counter driven gear shim from the transaxle housing.

SST: 09308-36010

NOTICE:

Be careful not to damage the transaxle housing.

HINT:

Align the claw of the SST with the indentation of the transaxle housing when removing the parts.

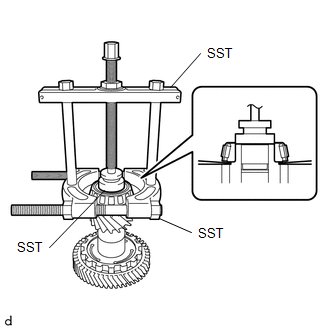

110. REMOVE COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)

(a) Using SST, remove the counter driven gear front tapered roller bearing (inner race) from the pinion and counter driven gear sub-assembly.

SST: 09950-00020

SST: 09950-00030

SST: 09950-60011

09951-00380

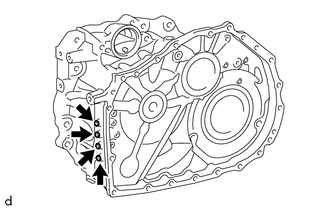

111. REMOVE NO. 1 TRANSAXLE CASE PLUG

(a) Remove the 4 No. 1 transaxle case plugs from the automatic transaxle case sub-assembly.

(b) Remove the 4 No. 1 transaxle case plugs from the transaxle housing.

(c) Remove the 8 O-rings from the 8 No. 1 transaxle case plugs.

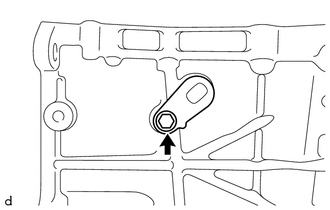

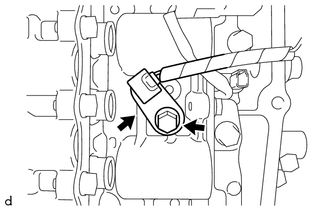

112. REMOVE NO. 2 TRANSAXLE CASE PLUG

(a) Using a 6 mm socket hexagon wrench, remove the 3 No. 2 transaxle case plugs and 3 gaskets from the automatic transaxle case sub-assembly.

(b) Using a 6 mm socket hexagon wrench, remove the 3 No. 2 transaxle case plugs and 3 gaskets from the transaxle housing.

113. REMOVE AUTOMATIC TRANSMISSION CASE STRAIGHT PIN

NOTICE:

It is not necessary to remove the automatic transmission case straight pins unless they are being replaced.

(a) Remove the 2 automatic transmission case straight pins from the automatic transaxle case sub-assembly.

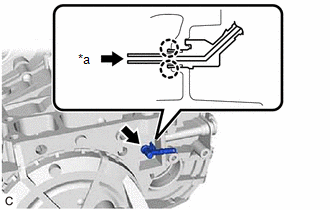

114. REMOVE NO. 1 BREATHER PLUG (ATM)

(a) Disengage each claw and remove the No. 1 breather plug (ATM) from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

*a

Push

    Components

    Inspection

    See More:

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Intuitive Parking Assist System(for Gasoline Model): Front Right Center Sensor (C1AE3)
    DESCRIPTION The front center ultrasonic sensor RH is installed to the front bumper. The clearance warning ECU assembly detects obstacles based on signals received from the front center ultrasonic sensor RH. If the front center ultrasonic sensor RH has an open circuit or other malfunction, it will no ...

    Toyota Avalon (XX50) 2019-2022 Owners Manual

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

    © 2024 Copyright www.tavalon.net
    0.0171
