Toyota Avalon Service & Repair Manual: Shift Lever Knob

Toyota Avalon Service & Repair Manual / Drivetrain / Ua80e Automatic Transmission / Transaxle / Shift Lever Knob

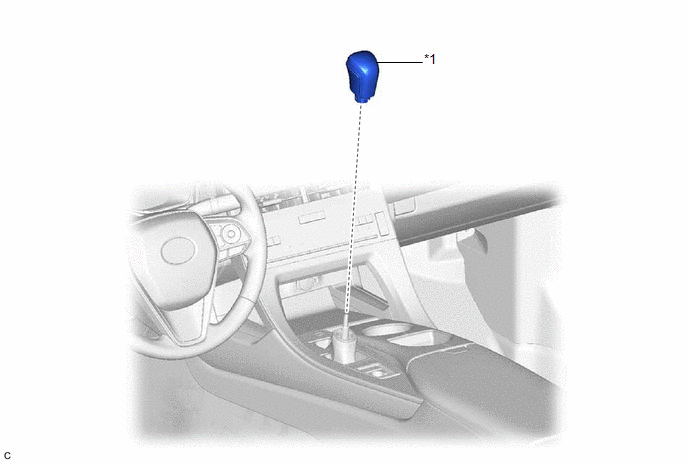

Components

COMPONENTS

ILLUSTRATION

*1

SHIFT LEVER KNOB SUB-ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

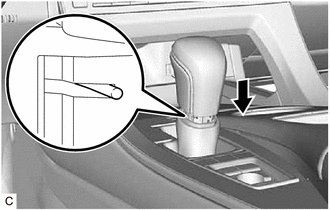

(a) Install the shift lever knob sub-assembly to the transmission floor shift assembly.

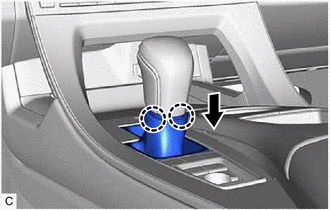

(b) Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.

NOTICE:

Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.

Removal

REMOVAL

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

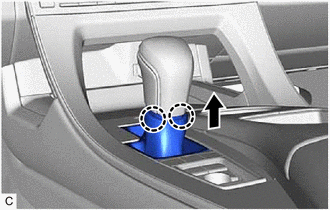

(a) Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

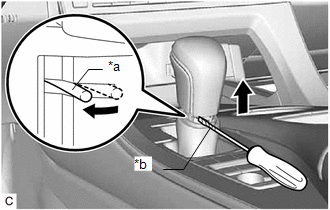

(b) Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.

*a

Clip

*b

Protective Tape
