Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL LOWER RADIATOR SUPPORT

(a) Install the 2 lower radiator supports to the radiator assembly.

2. INSTALL RADIATOR SUPPORT CUSHION

(a) Install the 2 radiator support cushions to the radiator assembly.

3. INSTALL RADIATOR ASSEMBLY

(a) Engage the 2 guides.

(b) Engage the 2 claws to install the fan with motor assembly to the radiator assembly.

NOTICE:

Do not damage the radiator assembly when installing the fan with motor assembly.

(c) Install the radiator assembly with the fan with motor assembly to the vehicle body.

NOTICE:

Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly with the fan with motor assembly.

(d) Connect the cooling fan motor connector.

(1) Engage the wire harness clamp.

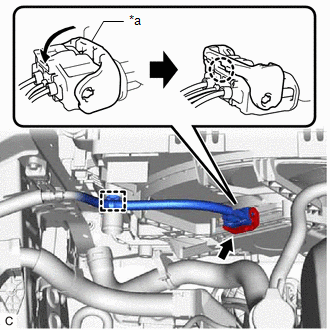

*a

Lock Lever

(2) Connect the cooling fan motor connector and push down the lock lever to engage the claw as shown in the illustration.

NOTICE:

  • When connecting the cooling fan motor connector, make sure that the connecting parts of the cooling fan motor connector are free of dirt, water or other foreign matter.
  • Be sure to securely connect the cooling fan motor connector.

(e) Engage the 2 guides.

(f) Engage the 2 claws to install the cooler condenser assembly to the radiator assembly.

NOTICE:

Make sure not to damage the cooler condenser assembly when installing the cooler condenser assembly.

4. CONNECT NO. 2 RADIATOR HOSE

(a) Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.

5. CONNECT NO. 1 RADIATOR HOSE

(a) Connect the No. 1 radiator hose to the radiator assembly and slide the clip to secure it.

(b) Engage the clamp to connect the No. 1 radiator hose to the fan with motor assembly.

6. CONNECT NO. 5 WATER BY-PASS HOSE

(a) Connect the No. 5 water by-pass hose to the radiator assembly and slide the clip to secure it.

(b) Engage the 2 clamps to install the hose clamp (B) to the No. 5 water by-pass hose and No. 6 water by-pass hose.

(c) Engage the 4 clamps to connect the No. 5 water by-pass hose and No. 6 water by-pass hose to the hose clamp (A).

7. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

(a) Install the upper radiator support sub-assembly with the 4 bolts.

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

(b) Engage the clamp to connect the hood lock control cable assembly to the upper radiator support sub-assembly.

8. INSTALL NO. 1 RADIATOR AIR GUIDE RH

(a) Engage the guide and claw.

(b) Install the No. 1 radiator air guide RH with the clip.

9. INSTALL NO. 1 RADIATOR AIR GUIDE LH

(a) Engage the guide and claw.

(b) Install the No. 1 radiator air guide LH with the front radiator side air guide plate LH with the clip.

10. INSTALL UPPER RADIATOR MOUNTING BRACKET

(a) Install the 2 upper radiator mounting brackets with the 2 bolts and 2 nuts.

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

(b) Connect the 2 horn connectors.

11. INSTALL INLET AIR CLEANER ASSEMBLY

Click here

12. INSTALL HOOD LOCK ASSEMBLY

Click here

13. INSTALL FRONT BUMPER REINFORCEMENT

Click here

14. INSTALL FRONT BUMPER ENERGY ABSORBER

Click here

15. INSTALL NO. 2 FRONT BUMPER ENERGY ABSORBER

Click here

16. INSTALL THERMISTOR ASSEMBLY

Click here

17. INSTALL HEADLIGHT ASSEMBLY

Click here

18. ADD ENGINE COOLANT

Click here

19. INSPECT FOR COOLANT LEAK

Click here

20. INSTALL REAR ENGINE UNDER COVER RH

Click here

21. INSTALL REAR ENGINE UNDER COVER LH

Click here

22. INSTALL NO. 1 ENGINE UNDER COVER

Click here

23. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

Click here

24. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

Click here
