COMPONENTS

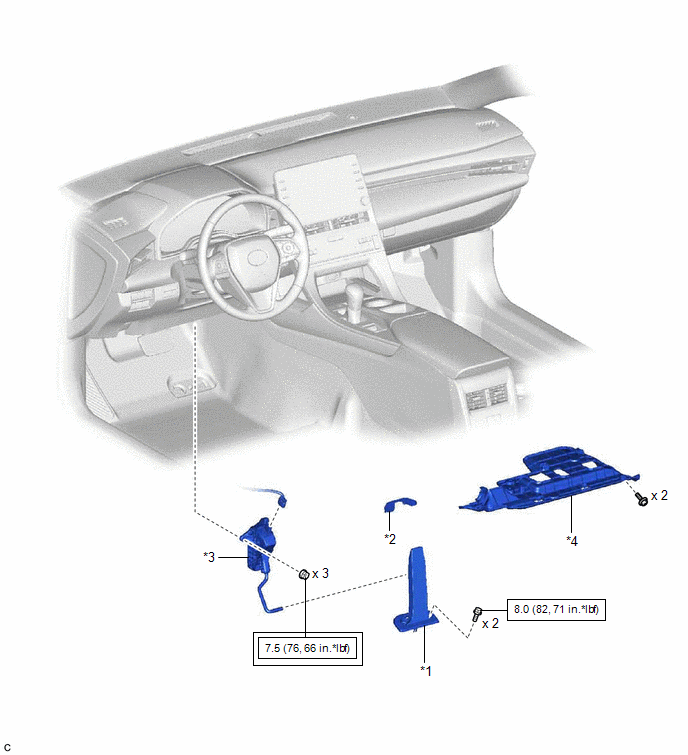

ILLUSTRATION

*1

ACCELERATOR PEDAL

*2

ACCELERATOR PEDAL PAD

*3

ACCELERATOR PEDAL SENSOR ASSEMBLY

*4

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque
    Accelerator Pedal

    Installation
