Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

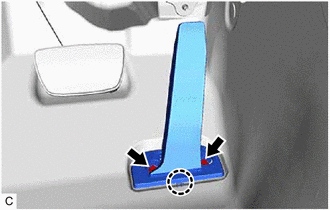

1. INSTALL ACCELERATOR PEDAL

(a) Engage the claw to install the accelerator pedal.

(b) Install the 2 bolts.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

2. INSTALL ACCELERATOR PEDAL PAD

(a) Engage the 4 claws to install the accelerator pedal pad to the accelerator pedal.

3. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTICE:

  • Avoid physical shock to the accelerator pedal sensor assembly.
  • Do not disassemble the accelerator pedal sensor assembly.
  • This accelerator pedal sensor assembly does not require lubrication.
  • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

(a) Connect the rod of the accelerator pedal sensor assembly to the accelerator pedal and install the accelerator pedal sensor assembly with the 3 nuts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(b) Connect the accelerator pedal sensor assembly connector.

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
