Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

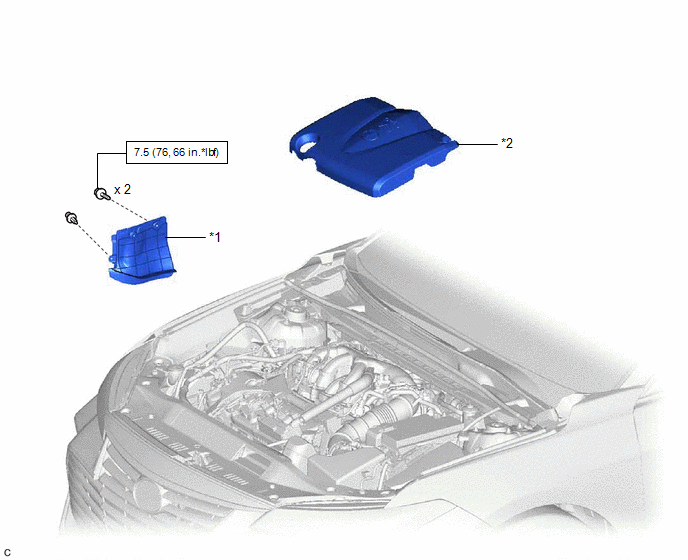

*1

FRONT FENDER APRON SEAL RH

*2

V-BANK COVER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

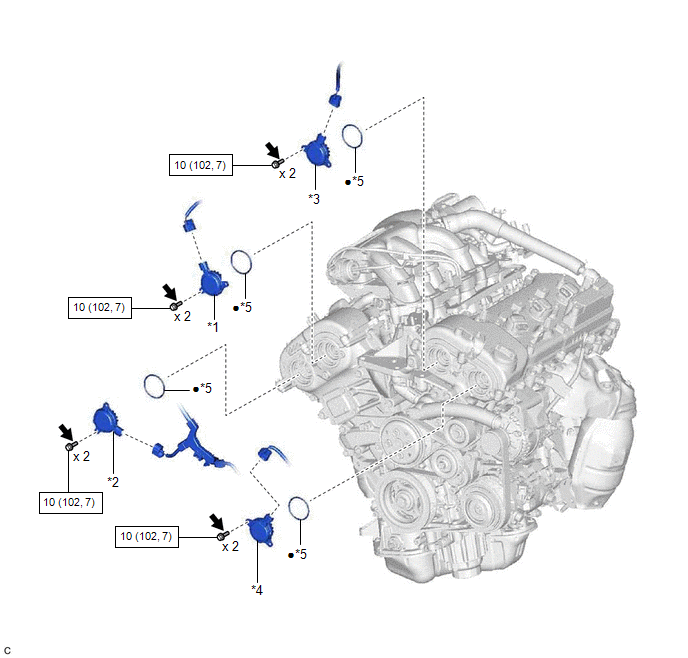

*1

CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

*2

CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

*3

CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)

*4

CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

*5

O-RING

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Adhesive 1324

Precoated part

    Camshaft Oil Control Solenoid

    Inspection
