COMPONENTS

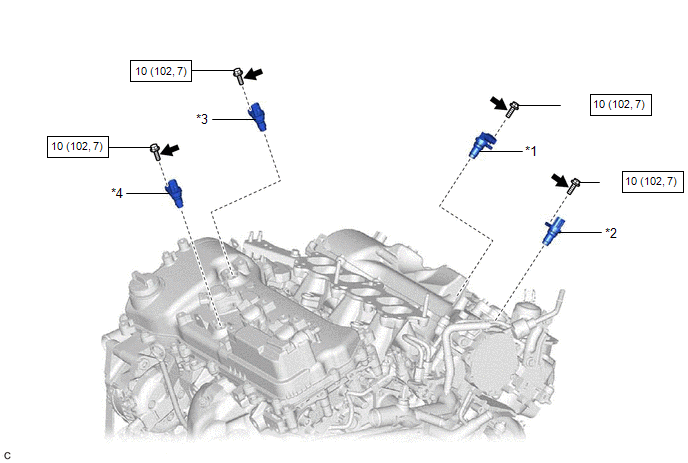

ILLUSTRATION

*1	VVT SENSOR (for Intake Side of Bank 1)	*2	VVT SENSOR (for Exhaust Side of Bank 1)
*3	VVT SENSOR (for Intake Side of Bank 2)	*4	VVT SENSOR (for Exhaust Side of Bank 2)
	Nm (kgfcm, ft.*lbf): Specified torque		Adhesive 1324
★	Precoated part	-	-
