Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

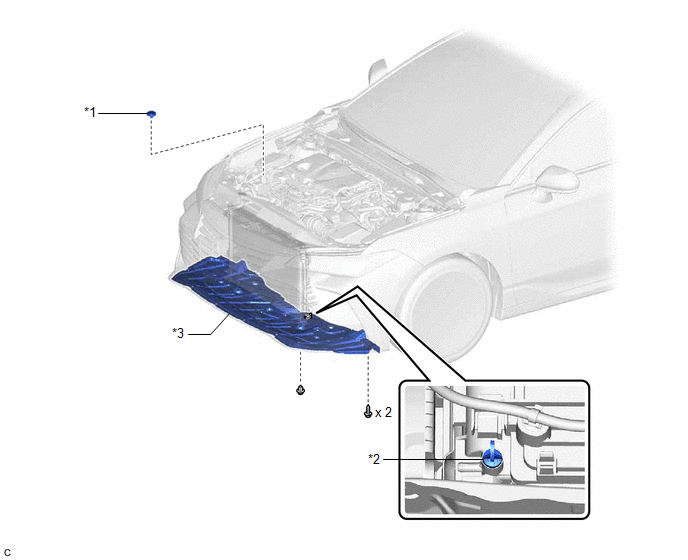

ILLUSTRATION

*1

RESERVE TANK CAP

*2

DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER

-

-

    Coolant(for Inverter)

    Replacement
