Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 ECM BRACKET

(a) Install the No. 2 ECM bracket to the ECM with the 2 screws.

Torque:

4.5 N·m {46 kgf·cm, 40 in·lbf}

2. INSTALL NO. 1 ECM BRACKET

(a) Install the No. 1 ECM bracket to the ECM with the 2 screws.

Torque:

4.5 N·m {46 kgf·cm, 40 in·lbf}

3. INSTALL ECM

(a) Install the ECM with the 2 bolts and nut.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

NOTICE:

If the ECM has been struck or dropped, replace it.

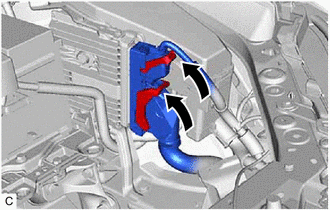

(b) Connect the 2 ECM connectors and rotate the 2 levers to lock them.

NOTICE:

  • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
  • Be sure to securely connect the ECM connectors.

4. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click here

5. INSTALL INLET AIR CLEANER ASSEMBLY

Click here

6. INSTALL COOL AIR INTAKE DUCT SEAL

Click here

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click here

8. PERFORM INITIALIZATION

Click here
