Toyota Avalon Service & Repair Manual: Parts Location

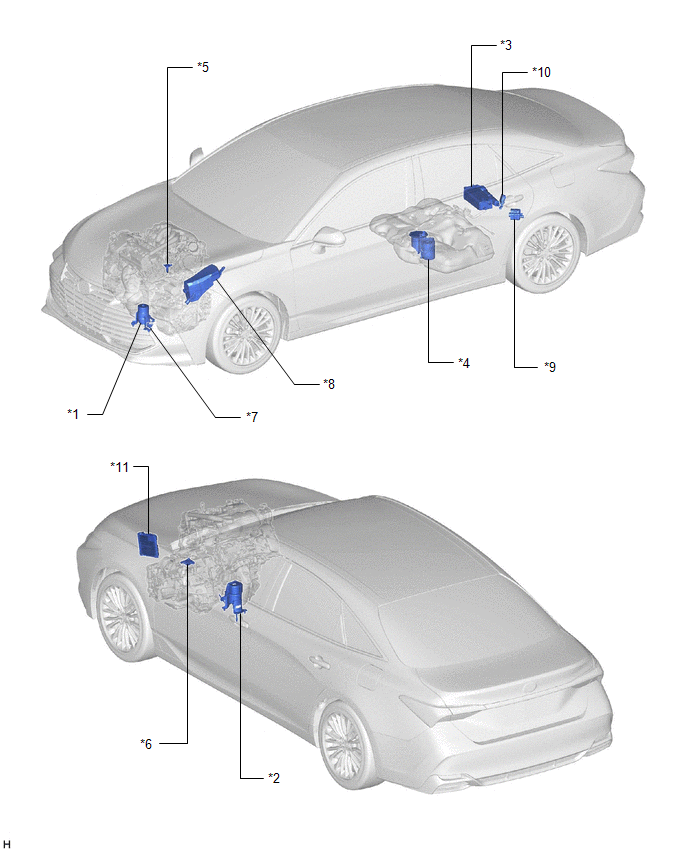

*1

FRONT ENGINE MOUNTING INSULATOR

*2

REAR ENGINE MOUNTING INSULATOR

*3

CANISTER

*4

FUEL PUMP (for Low Pressure Side)

*5

MASS AIR FLOW METER SUB-ASSEMBLY

*6

PARK / NEUTRAL POSITION SWITCH ASSEMBLY

*7

VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

*8

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

*9

CANISTER PUMP MODULE

*10

FUEL PUMP CONTROL ECU

*11

ECM

-

-

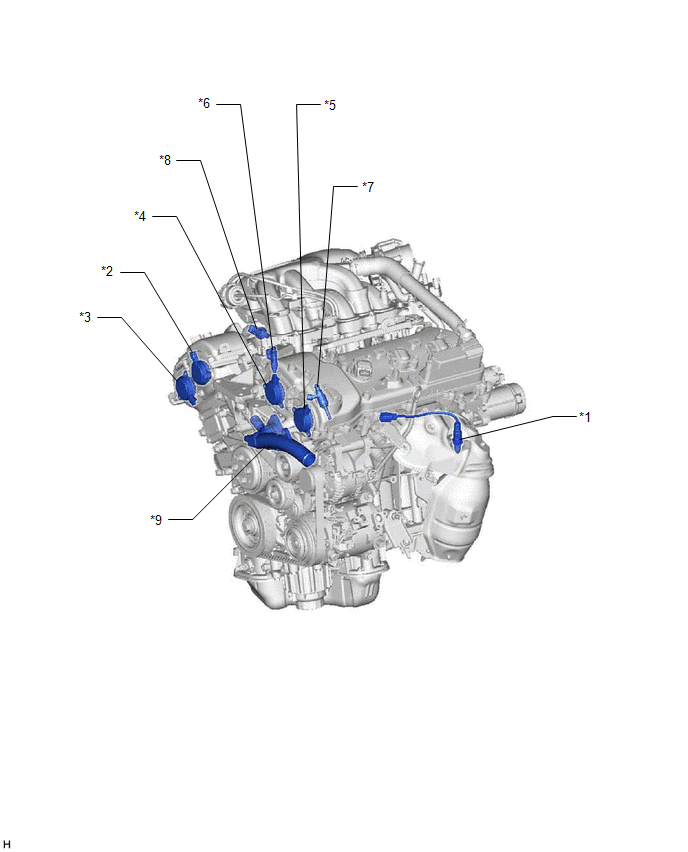

*1

AIR FUEL RATIO SENSOR (Bank 2 Sensor 1)

*2

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 1)

*3

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 1)

*4

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 2)

*5

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 2)

*6

FUEL INJECTOR ASSEMBLY (for Port Injection)

*7

FUEL INJECTOR ASSEMBLY (for Direct Injection)

*8

FUEL PRESSURE SENSOR (for Low Pressure Side)

*9

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

-

-

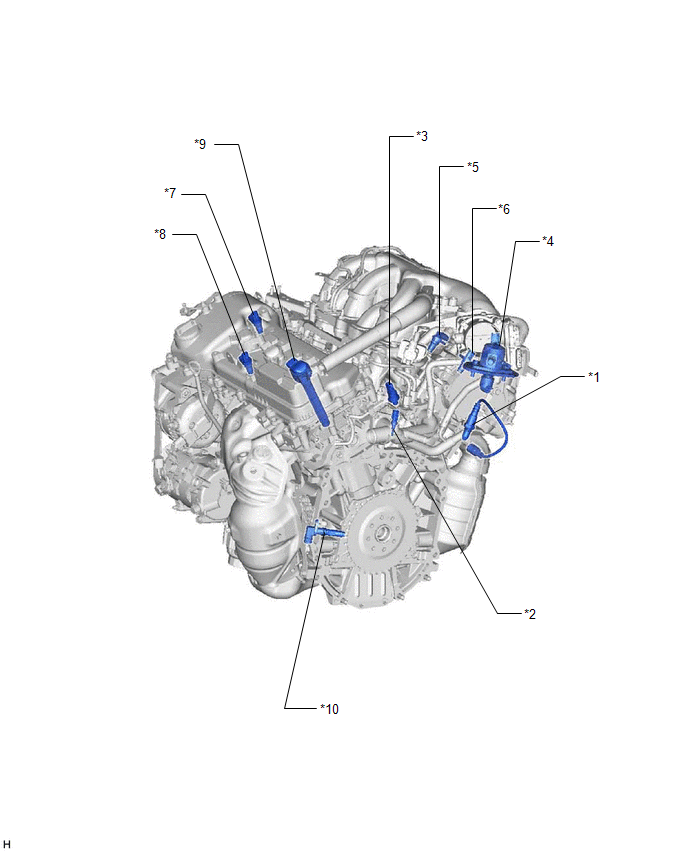

*1

AIR FUEL RATIO SENSOR (Bank 1 Sensor 1)

*2

ENGINE COOLANT TEMPERATURE SENSOR

*3

FUEL PRESSURE SENSOR (for High Pressure Side)

*4

FUEL PUMP ASSEMBLY (for High Pressure Side)

*5

VVT SENSOR (for Intake Camshaft of Bank 1)

*6

VVT SENSOR (for Exhaust Camshaft of Bank 1)

*7

VVT SENSOR (for Intake Camshaft of Bank 2)

*8

VVT SENSOR (for Exhaust Camshaft of Bank 2)

*9

IGNITION COIL ASSEMBLY

*10

CRANKSHAFT POSITION SENSOR

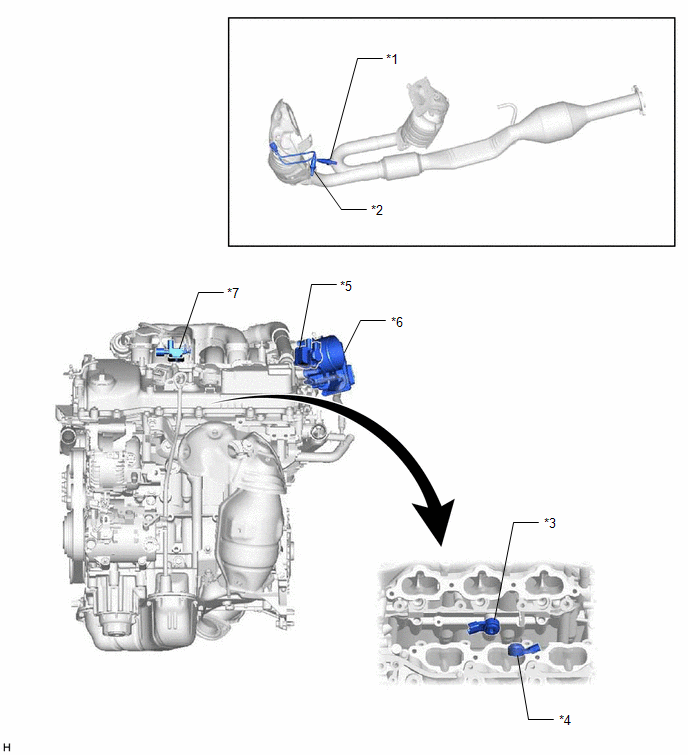

*1

HEATED OXYGEN SENSOR (Bank 2 Sensor 2)

*2

HEATED OXYGEN SENSOR (Bank 1 Sensor 2)

*3

KNOCK CONTROL SENSOR (Bank 1)

*4

KNOCK CONTROL SENSOR (Bank 2)

*5

PURGE VSV

*6

THROTTLE BODY WITH MOTOR ASSEMBLY

*7

NO. 1 VACUUM SWITCHING VALVE (for Intake Air Control Valve Sub-assembly)

-

-

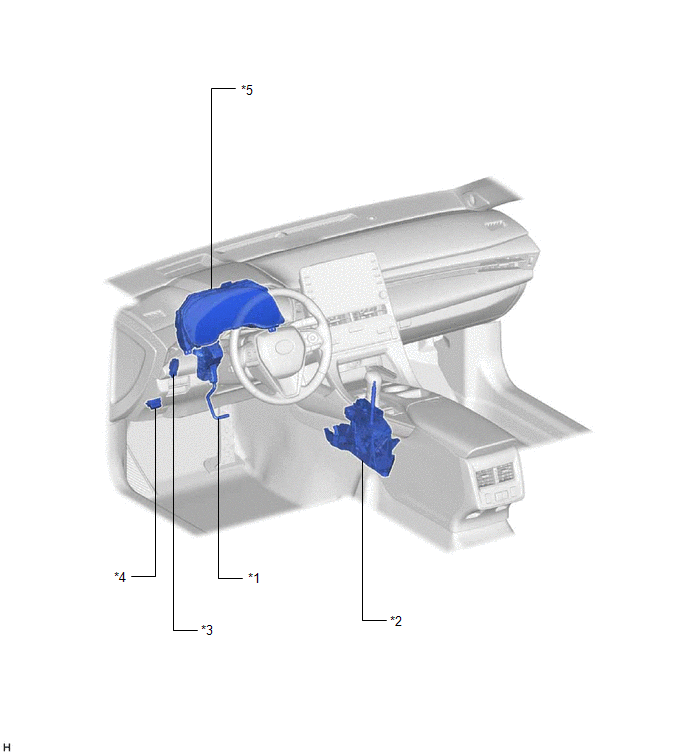

*1

ACCELERATOR PEDAL SENSOR ASSEMBLY

*2

TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

*3

STOP LIGHT SWITCH ASSEMBLY

*4

DLC3

*5

COMBINATION METER ASSEMBLY

-

-
