COMPONENTS

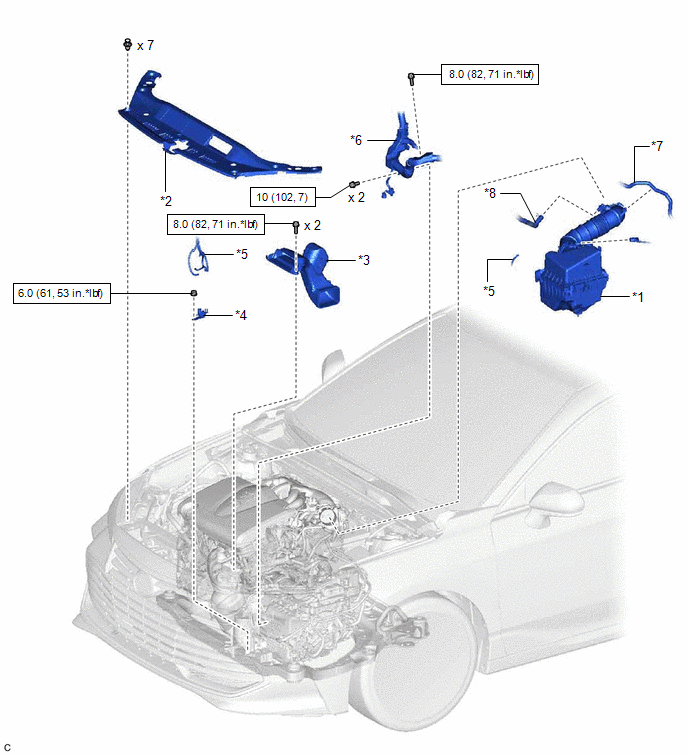

ILLUSTRATION

*1

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

*2

COOL AIR INTAKE DUCT SEAL

*3

INLET AIR CLEANER ASSEMBLY

*4

VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

*5

VACUUM HOSE

*6

ENGINE WIRE

*7

NO. 1 FUEL VAPOR FEED HOSE

*8

NO. 2 VENTILATION HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Vacuum Switching Valve(for Engine Mounting)

    Inspection
