1. INSPECT VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

(a) Measure the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

37 to 44 Ω

1 - Body ground

10 kΩ or higher

2 - Body ground

10 kΩ or higher

If the result is not as specified, replace the vacuum switching valve (for active control engine mount system).

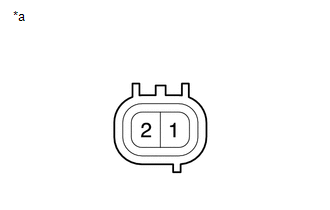

*a

Component without harness connected

(Vacuum Switching Valve (for Active Control Engine Mount System))

(b) Check the operation of the vacuum switching valve (for active control engine mount system).

(1) Using a vacuum pump, apply a vacuum of 67 kPa (503 mmHg, 19.8 in. Hg) to port (F) and check that the vacuum is maintained.

OK:

Vacuum pressure holds.

If the result is not as specified, replace the vacuum switching valve (for active control engine mount system).

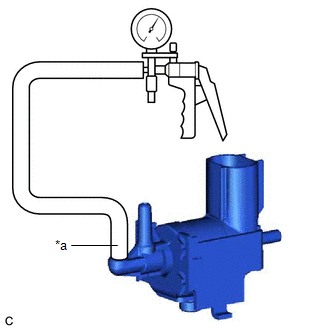

*a

Port (F)

(2) Check that air flows from port (E) to port (G).

Standard:

Air flows from port (E) to port (G).

If the result is not as specified, replace the vacuum switching valve (for active control engine mount system).

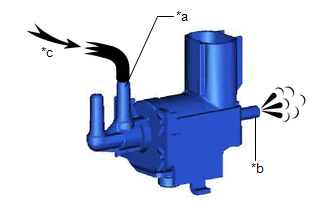

*a

Port (E)

*b

Port (G)

*c

Air

(3) Apply battery voltage to the terminals and check that air flows from port (E) to port (F).

Standard:

Air flows from port (E) to port (F).

If the result is not as specified, replace the vacuum switching valve (for active control engine mount system).

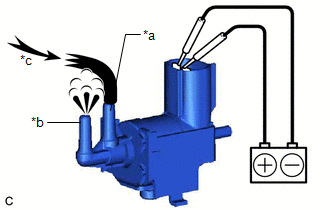

*a

Port (E)

*b

Port (F)

*c

Air
