COMPONENTS

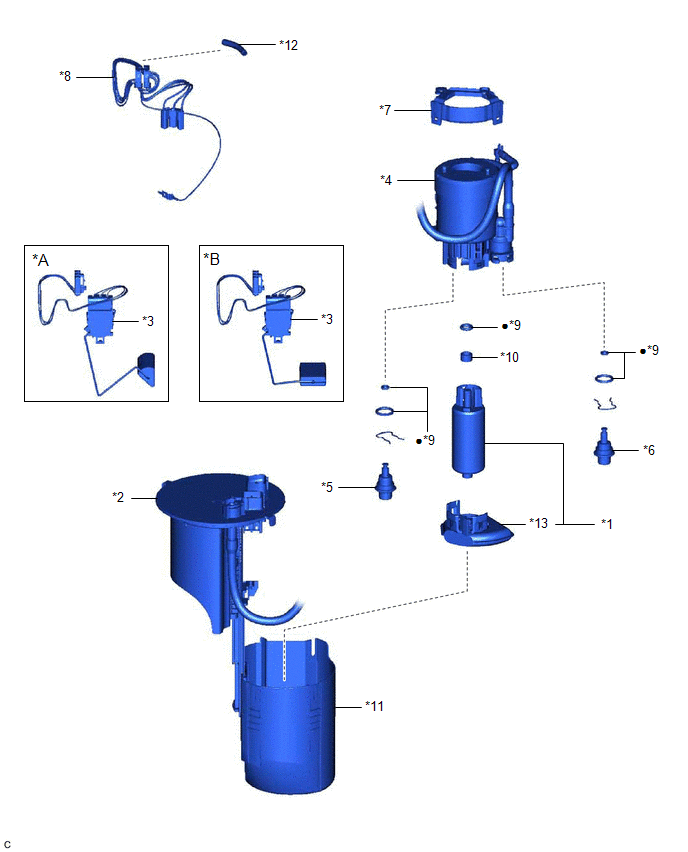

ILLUSTRATION

*A

Type A

*B

Type B

*1

FUEL PUMP

*2

FUEL SUCTION PLATE SUB-ASSEMBLY

*3

FUEL SENDER GAUGE ASSEMBLY

*4

FUEL FILTER

*5

FUEL MAIN VALVE ASSEMBLY (for Low Pressure)

*6

FUEL MAIN VALVE ASSEMBLY (for High Pressure)

*7

NO. 1 FUEL SUCTION SUPPORT

*8

FUEL PUMP HARNESS

*9

O-RING

*10

FUEL PUMP SPACER

*11

FUEL SUB-TANK

*12

HARNESS PROTECTOR

*13

SUCTION FILTER

-

-

●

Non-reusable part

-

-
    Fuel Filter

    Replacement
