INSPECTION

PROCEDURE

1. INSPECT FUEL INJECTOR ASSEMBLY

NOTICE:

This inspection is for checking the fuel injector assembly for an open or short. Because the fuel injector assembly of this vehicle is a high-pressure type, fuel injection volume cannot be checked.

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

1.74 to 2.04 Ω

If the result is not as specified, replace the fuel injector assembly.

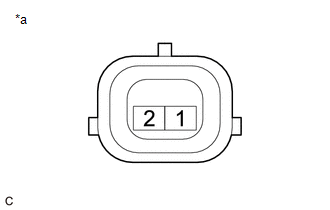

*a

Component without harness connected

(Fuel Injector Assembly)
    Components

    Installation
